LR23368

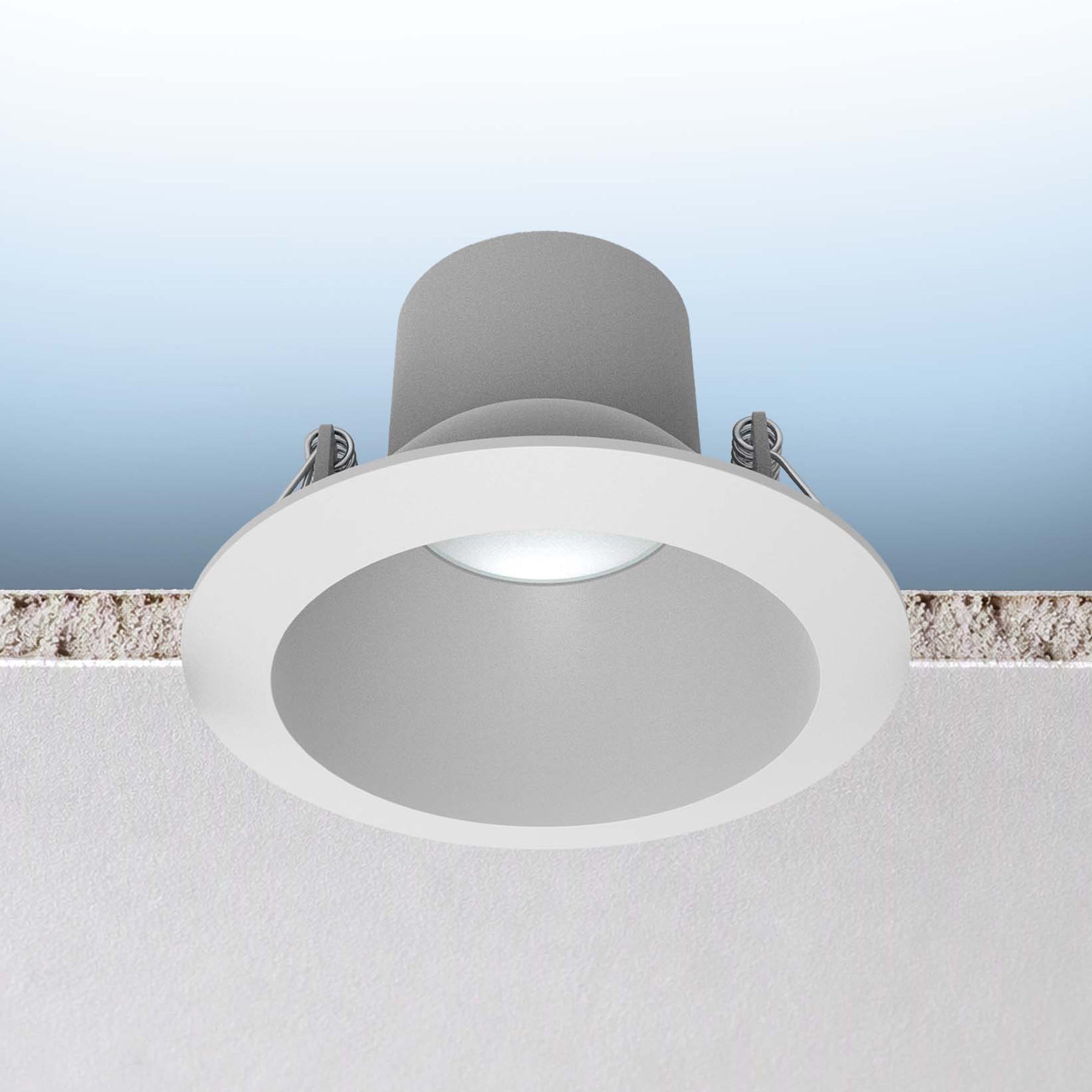

4" REGRESSED CANLESS SPOTLIGHT - ROUND WHITE - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

LED/RDL4/5CCT/RD/UNV/DD/WT

LR23368

4" REGRESSED CANLESS SPOTLIGHT - ROUND WHITE - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/RDL4/5CCT/RD/UNV/DD/WT

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 1150
  • WATT 12
  • Size4"

SPECIFICATIONS

  • Item numberLR23368
  • Item description

    LED/RDL4/5CCT/RD/UNV/DD/WT

  • Size4"
  • Shape 4" ROUND REGRESSED
  • Dimensions
    • Width Ø4.72"
    • Depth 3.14"
  • Finish WHITE
  • Cutout Ø4"
  • Plate LR41002 (#1), LR41006 (#3), LR41010 (R1), LR41011 (#4)

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 1150
  • Beam Angle 45º
  • CRI 90

ELECTRICAL

  • Power (Wattage) 12
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $1.44
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Input Current 0.1A
  • Frequency 60Hz
  • Lumen Efficacy 96
  • Operating Temp:
    • Min -4º
    • Max 104º

PACKAGING

  • UPC Barcode 608870480122
  • Master BarCode 10608870480129
  • Master Carton Dimensions:
    • Length 19.98"
    • Width 12.59"
    • Height 12.79"
  • Case Size 12

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
