LR23372

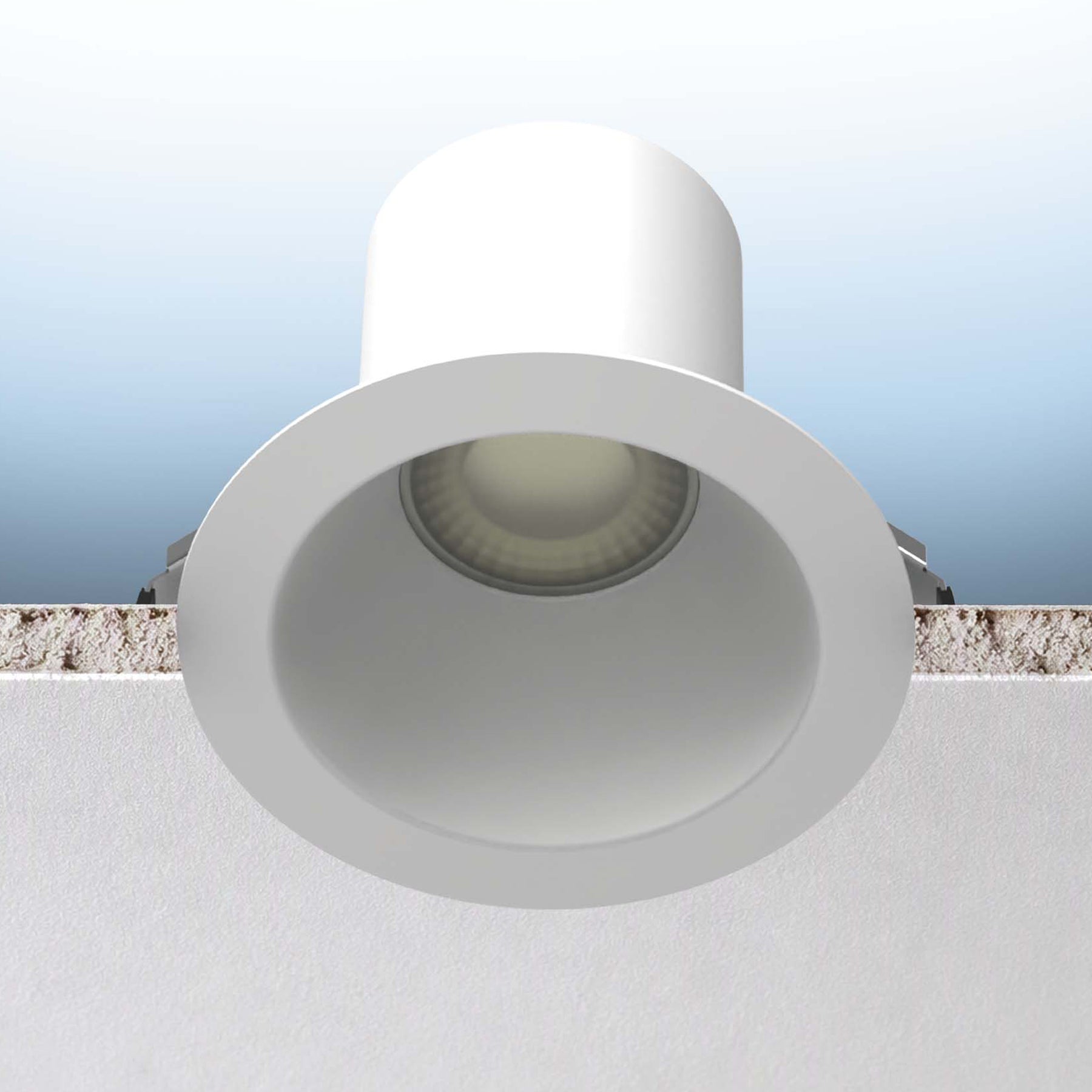

6" REGRESSED CANLESS SPOTLIGHT - ROUND WHITE - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

LED/RDL6/5CCT/RD/UNV/DD/WT

LR23372

6" REGRESSED CANLESS SPOTLIGHT - ROUND WHITE - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/RDL6/5CCT/RD/UNV/DD/WT

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 2600
  • WATT 25
  • Size6"

SPECIFICATIONS

  • Item numberLR23372
  • Item description

    LED/RDL6/5CCT/RD/UNV/DD/WT

  • Size6"
  • Shape 6" ROUND REGRESSED

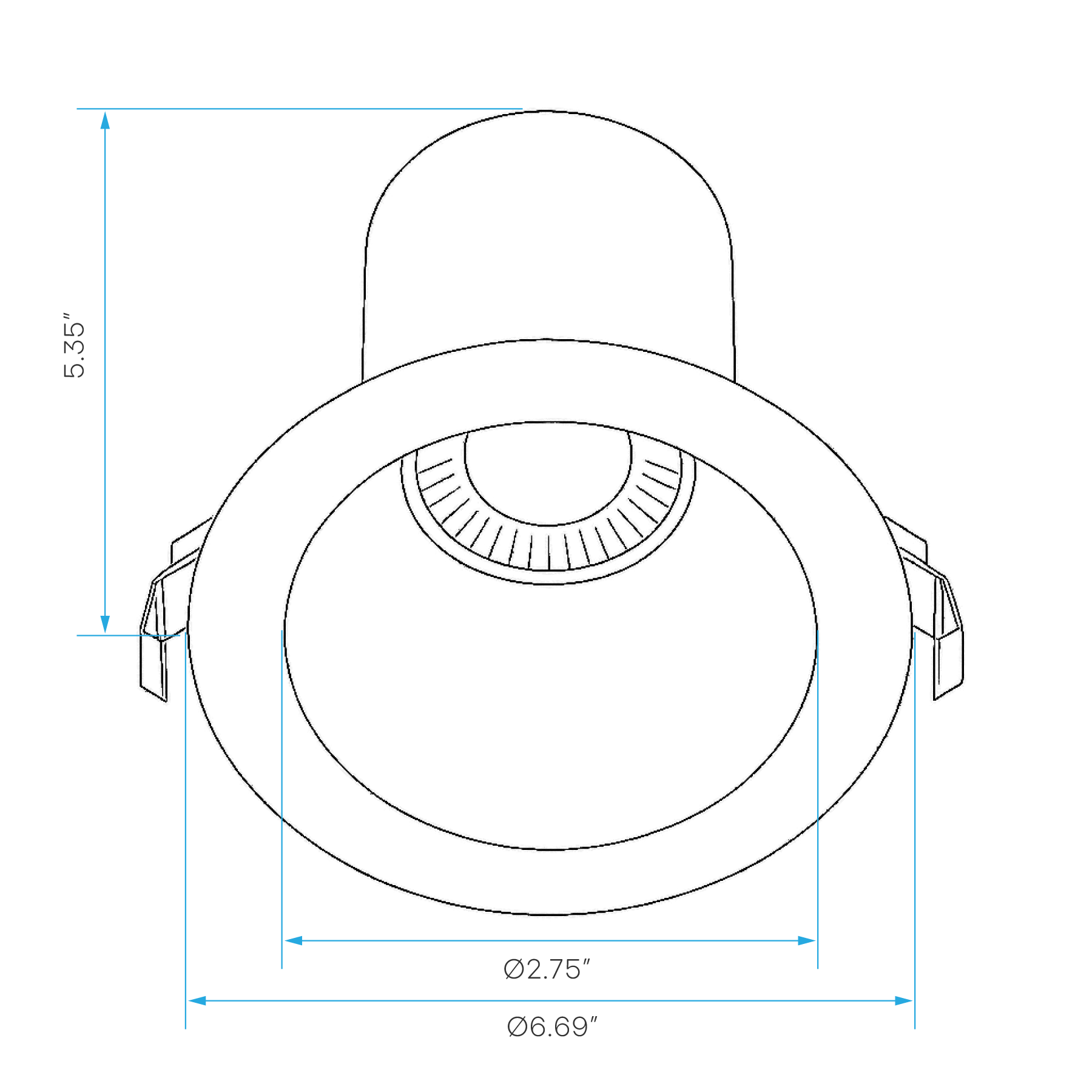

  • Dimensions
    • Width Ø6.69"
    • Depth 5.35"
  • Finish WHITE
  • Cutout Ø5.5"
  • Plate LR41002 (#2), LR41006 (#5), LR41010 (R3)

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 2600
  • Beam Angle 60º
  • CRI 90

ELECTRICAL

  • Power (Wattage) 25
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $3.01
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Input Current 0.2A
  • Frequency 60Hz
  • Lumen Efficacy 100
  • Operating Temp:
    • Min -4º
    • Max 104º

PACKAGING

  • UPC Barcode 608870480528
  • Master BarCode 10608870480525
  • Master Carton Dimensions:
    • Length 14.57"
    • Width 14.37"
    • Height 15.94"
  • Case Size 8

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
