SPECIFICATIONS
- Item numberLR23733
- Item description

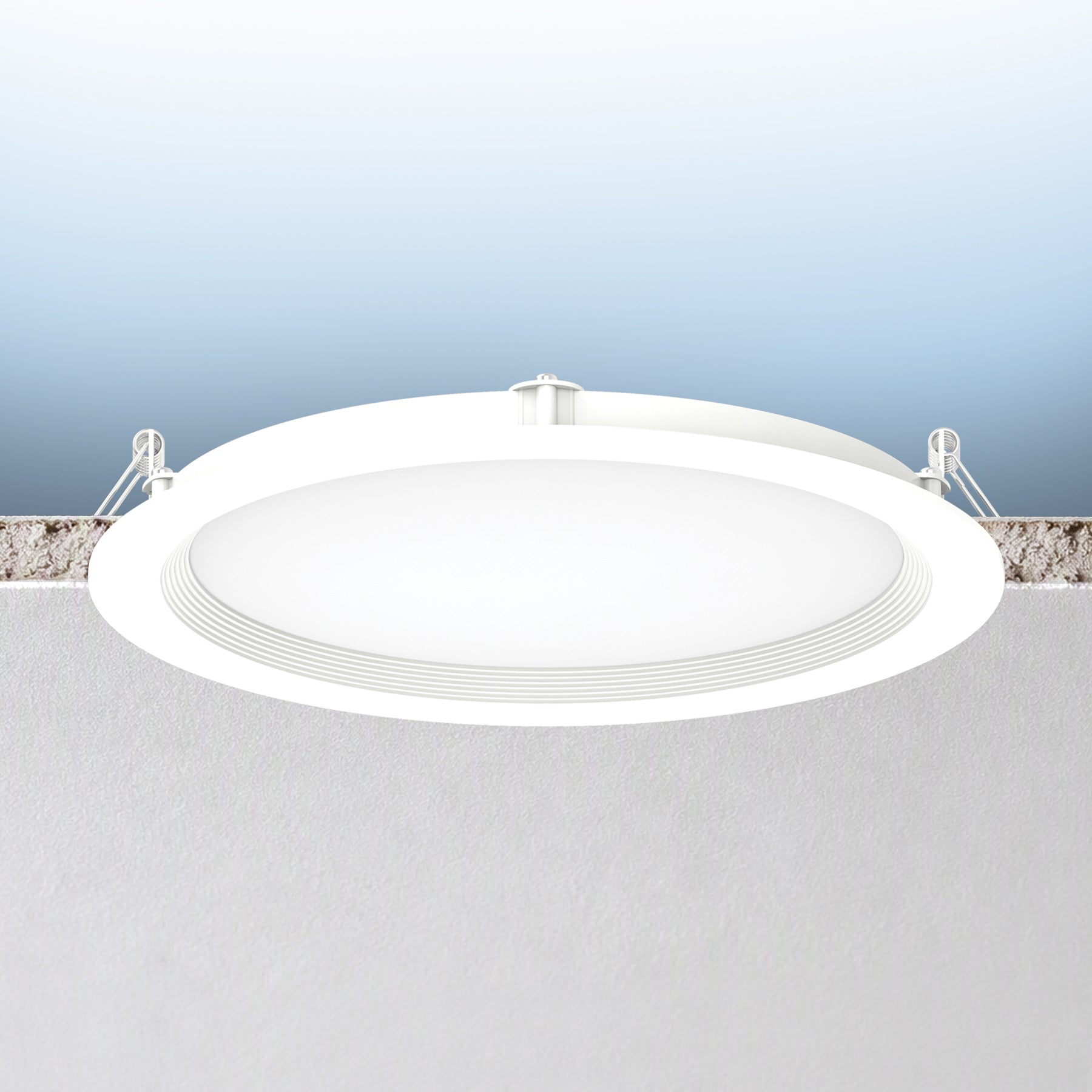

LED/MINI8/PANEL/5CCT/RD/B
- Size8"
- Shape 6" ROUND BAFFLED
- Dimensions
- Width Ø 8.87"
- Height 1.99"
- Depth 0.69"
- Cutout 8.3"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1800
- Beam Angle 110°
- CRI 90
ELECTRICAL
- Power (Wattage) 23
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $2.77
- Dimmable TRIAC
- Power Factor 0.9
- Input Current 220mA
- Frequency 60Hz
- Lumen Efficacy 78
- Operating Temp:
- Min -22°
- Max 104°
PACKAGING
- UPC Barcode 644216101313
- Master BarCode 10644216101310
- Master Carton Dimensions:
- Length 18.50"
- Width 9.92"
- Height 9.64"
- Weight 5.345kg
- Case Size 6
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
LIFERITE WARRANTY
When you buy from us,
you’re covered by us.
LifeRite is our own, first-party warranty,
available in 2-, 3-, and 5—year terms,
depending on the exact product.
