LR23911

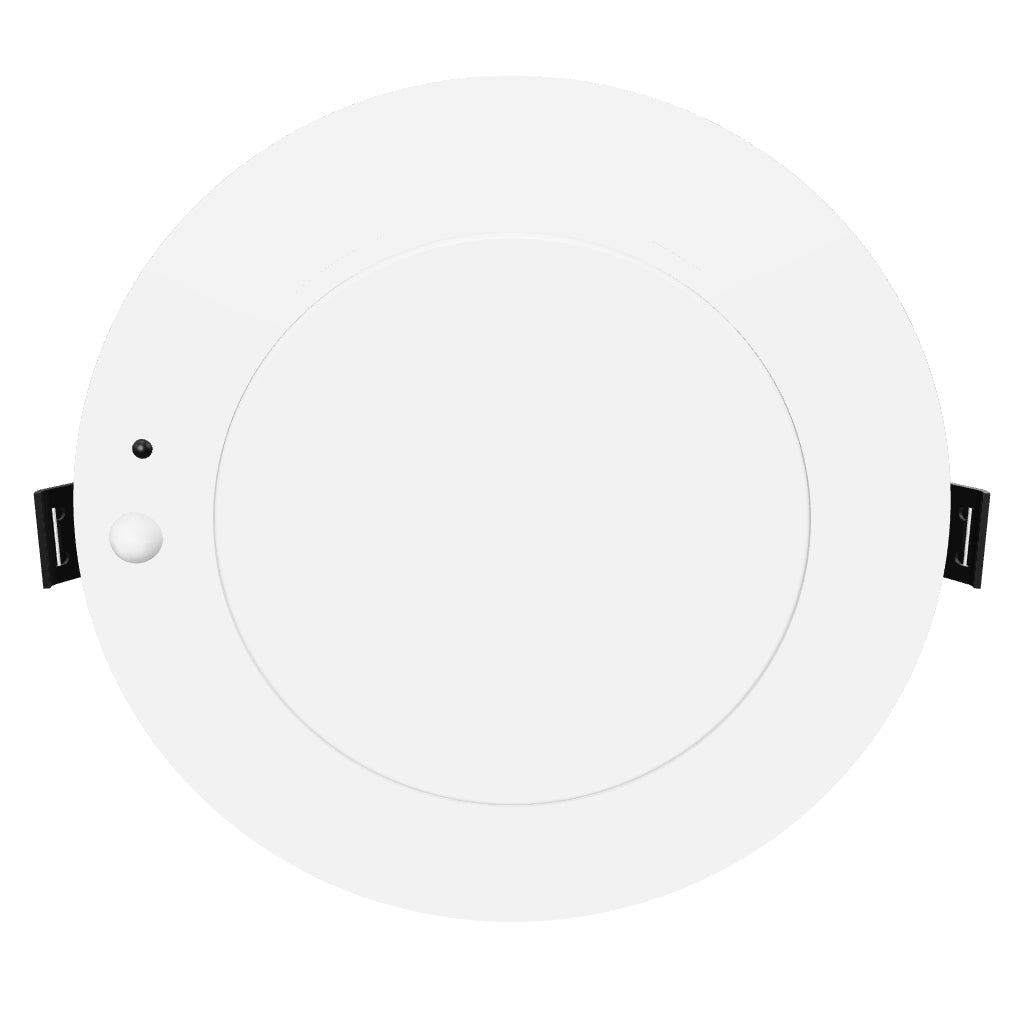

4" RECESSED MINI PANEL CANLESS SPOTLIGHT - 5CCT & ADJUSTABLE PIR SENSOR - UNIVERSAL VOLTAGE

LED/MINI4/PANEL/5CCT/RD/PIR

LR23911

4" RECESSED MINI PANEL CANLESS SPOTLIGHT - 5CCT & ADJUSTABLE PIR SENSOR - UNIVERSAL VOLTAGE

$0.00
/

LED/MINI4/PANEL/5CCT/RD/PIR

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 750
  • WATT 9
  • Size4"

SPECIFICATIONS

  • Item numberLR23911
  • Item description

    LED/MINI4/PANEL/5CCT/RD/PIR

  • Size4"
  • Shape RECESSED MINI PANEL
  • Dimensions
    • Length Ƙ5.31"
    • Height 1.79"
  • Cutout Ƙ4.3"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 750
  • Beam Angle 110Āŗ
  • CRI 90

ELECTRICAL

  • Power (Wattage) 9
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $1.08
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 84
  • Operating Temp:
    • Min -4Āŗ
    • Max 104Āŗ

PACKAGING

  • UPC Barcode 732388953264
  • Master BarCode 10732388953261
  • Master Carton Dimensions:
    • Length 11.41"
    • Width 10.39"
    • Height 6.30"
  • Case Size 6

FEATURES

    90 LIFE HR 50000
