SPECIFICATIONS
- Item numberLR23948
- Item description

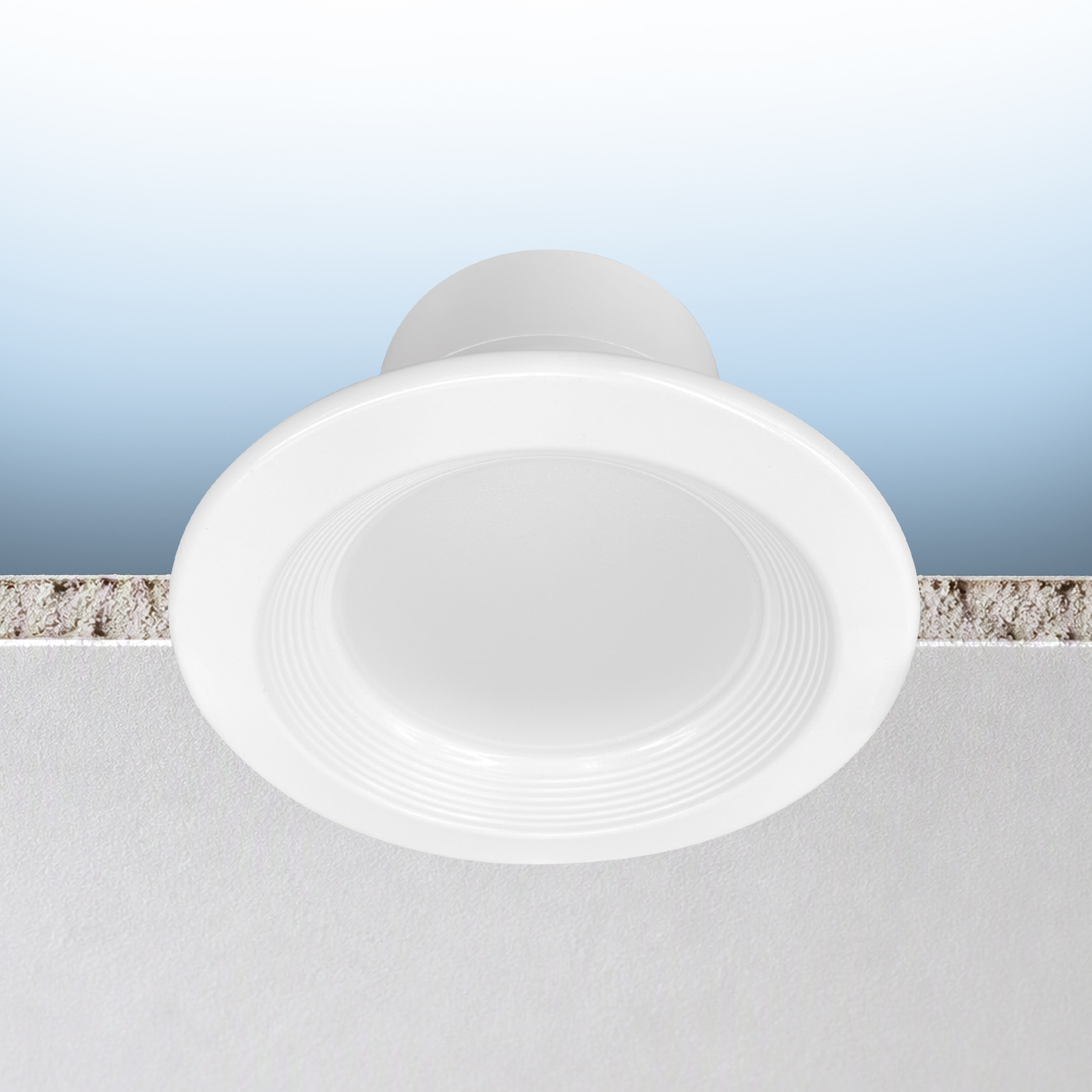

LED/CDL4HO/3WO/3CCT/B/JB
- Size4"
- Shape 4" ROUND
- Dimensions
- Width Ć 5.12"
- Height 3.44"
- Finish WHITE
- Cutout 4.3"
- Plate LR41002 (#1), LR41004 (#3), LR41006 (#3), LR41010 (#R1), LR41011 (#4)
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/4000K/5000K
- Lumen 810/1080/1350
- Beam Angle 120Āŗ
- CRI 80
ELECTRICAL
- Power (Wattage) 9/12/15
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.8
- Dimmable 0-10V
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 90
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 644216095711
- Master BarCode 10644216095718
- Master Carton Dimensions:
- Length 20.28''
- Width 15.75''
- Height 13.39''
- Weight 17.64lbs
- Case Size 12
