LR23972

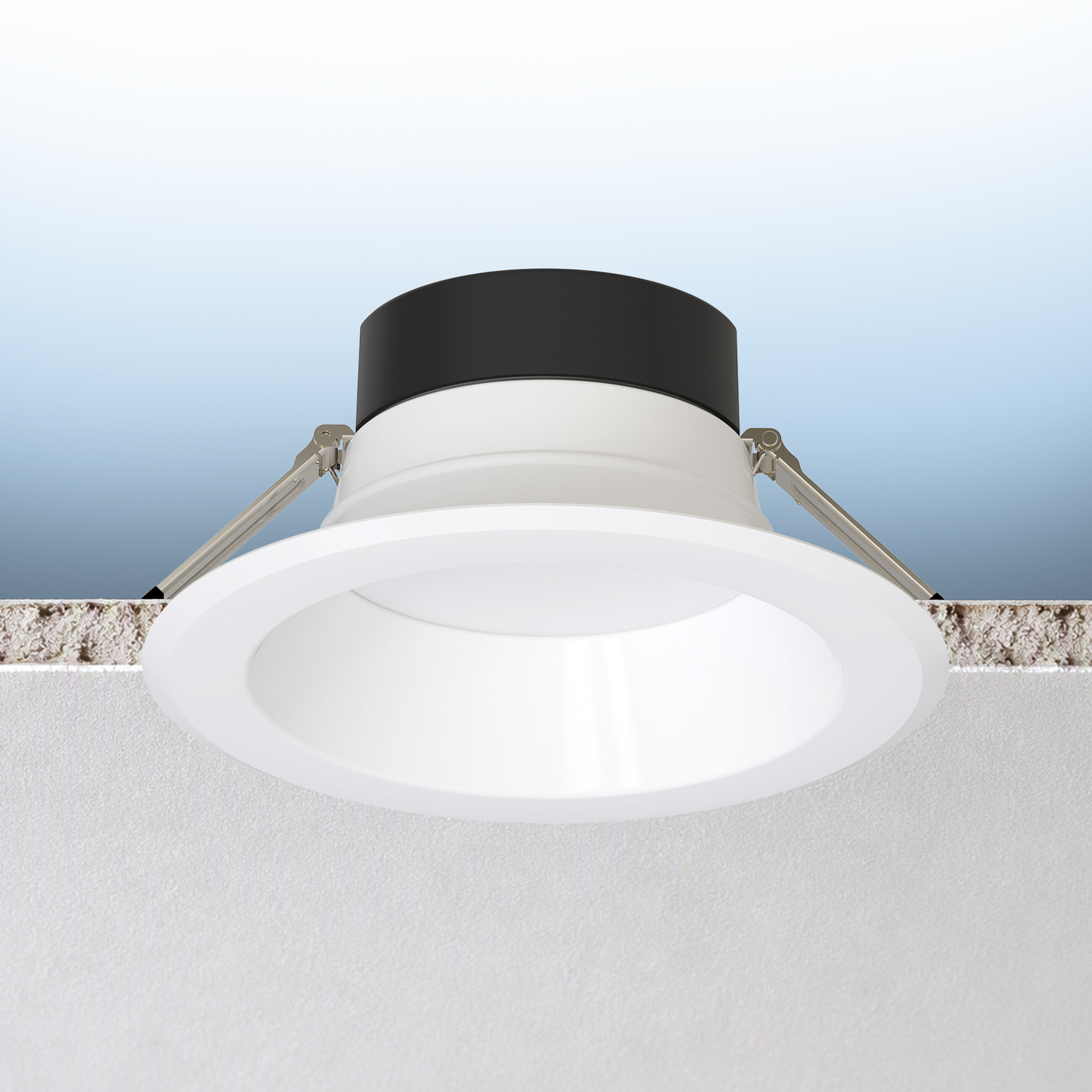

8" COMMERCIAL DOWNLIGHT 5 CCT & 3 WATTAGE SELECTABLE - UNIVERSAL VOLTAGE/DUAL DIMMING

LED/CDL8HO/3WO/5CCT/JB/UNV/DD

LR23972

8" COMMERCIAL DOWNLIGHT 5 CCT & 3 WATTAGE SELECTABLE - UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/CDL8HO/3WO/5CCT/JB/UNV/DD

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 1800/2700/3500
  • WATT 16/24/30
  • Size8"

SPECIFICATIONS

  • Item numberLR23972
  • Item description

    LED/CDL8HO/3WO/5CCT/JB/UNV/DD

  • Size8"
  • Shape 8" ROUND
  • Dimensions
    • Width Ƙ9.45"
    • Depth 4.45"
  • Cutout Ƙ7.28"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 1800/2700/3500
  • Beam Angle 80Ā°
  • CRI 90

ELECTRICAL

  • Power (Wattage) 16/24/30
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $3.61
  • Dimmable TRIAC/0-10V
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 117
  • Operating Temp:
    • Min -4Ā°
    • Max 104Ā°

PACKAGING

  • UPC Barcode 793888456846
  • Master BarCode 10793888456843
  • Master Carton Dimensions:
    • Length 20"
    • Width 10.03"
    • Height 12.40"
  • Case Size 4

FEATURES

    90 LIFE HR 50000
