LR23973

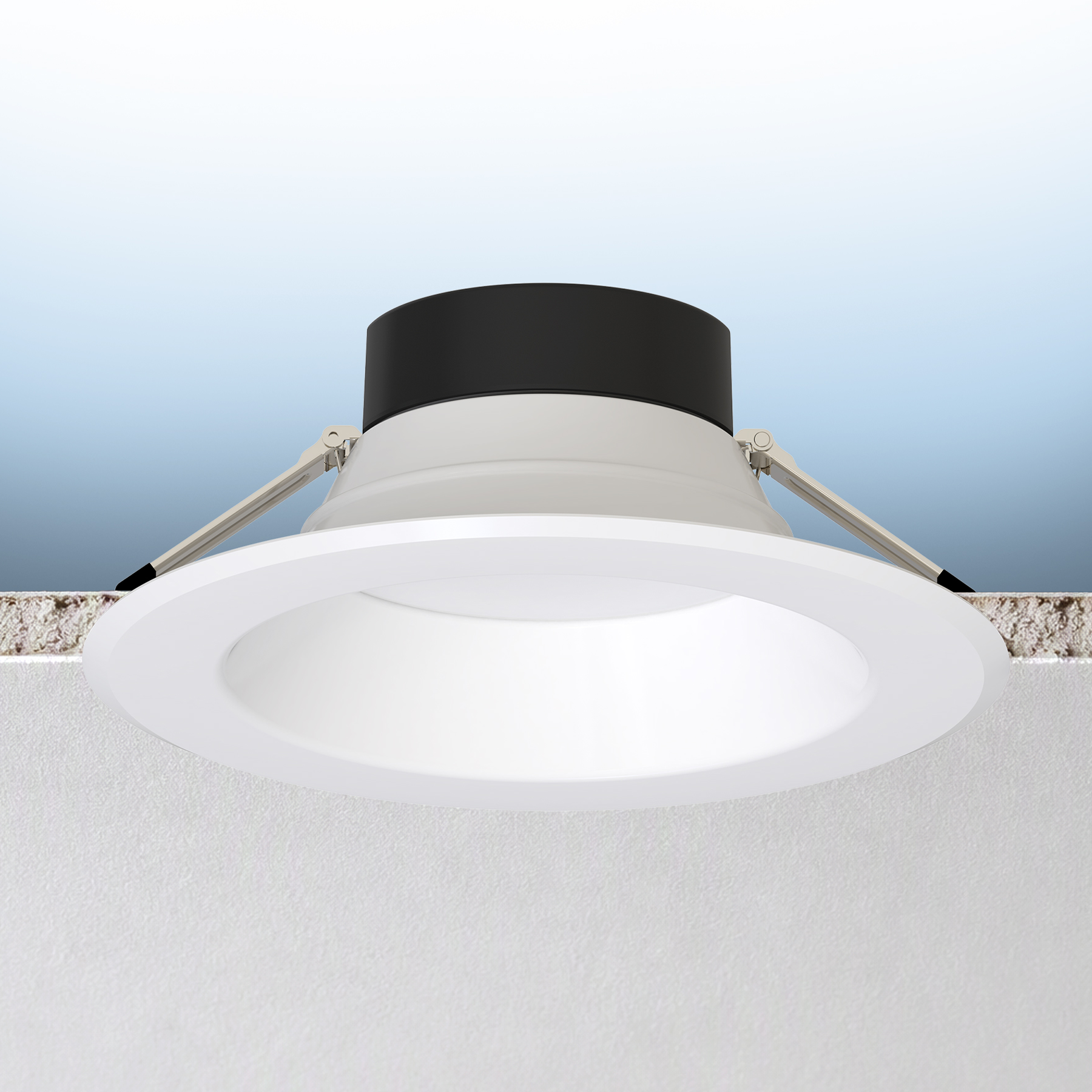

10" COMMERCIAL DOWNLIGHT 5 CCT & 3 WATTAGE SELECTABLE - UNIVERSAL VOLTAGE/DUAL DIMMING

LED/CDL10HO/3WO/5CCT/JB/UNV/DD

LR23973

10" COMMERCIAL DOWNLIGHT 5 CCT & 3 WATTAGE SELECTABLE - UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/CDL10HO/3WO/5CCT/JB/UNV/DD

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 2800/3500/4500
  • WATT 24/30/37
  • Size10"

SPECIFICATIONS

  • Item numberLR23973
  • Item description

    LED/CDL10HO/3WO/5CCT/JB/UNV/DD

  • Size10"
  • Shape 10" ROUND
  • Dimensions
    • Width Ƙ8.07"
    • Depth 4.46"
  • Cutout Ƙ8.07"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 2800/3500/4500
  • Beam Angle 80Ā°
  • CRI 90

ELECTRICAL

  • Power (Wattage) 24/30/37
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $4.45
  • Dimmable TRIAC/0-10V
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 117
  • Operating Temp:
    • Min -4Ā°
    • Max 104Ā°

PACKAGING

  • UPC Barcode 793888456945
  • Master BarCode 10793888456942
  • Master Carton Dimensions:
    • Length 23.62"
    • Width 11.22"
    • Height 11.89"
  • Case Size 4

FEATURES

    90 LIFE HR 50000
