SPECIFICATIONS
- Item numberLR23977
- Item description
LED/CDL8HO/3WO/5CCT/B/JB/UNV/DD
- Size8"
- Shape 8" ROUND

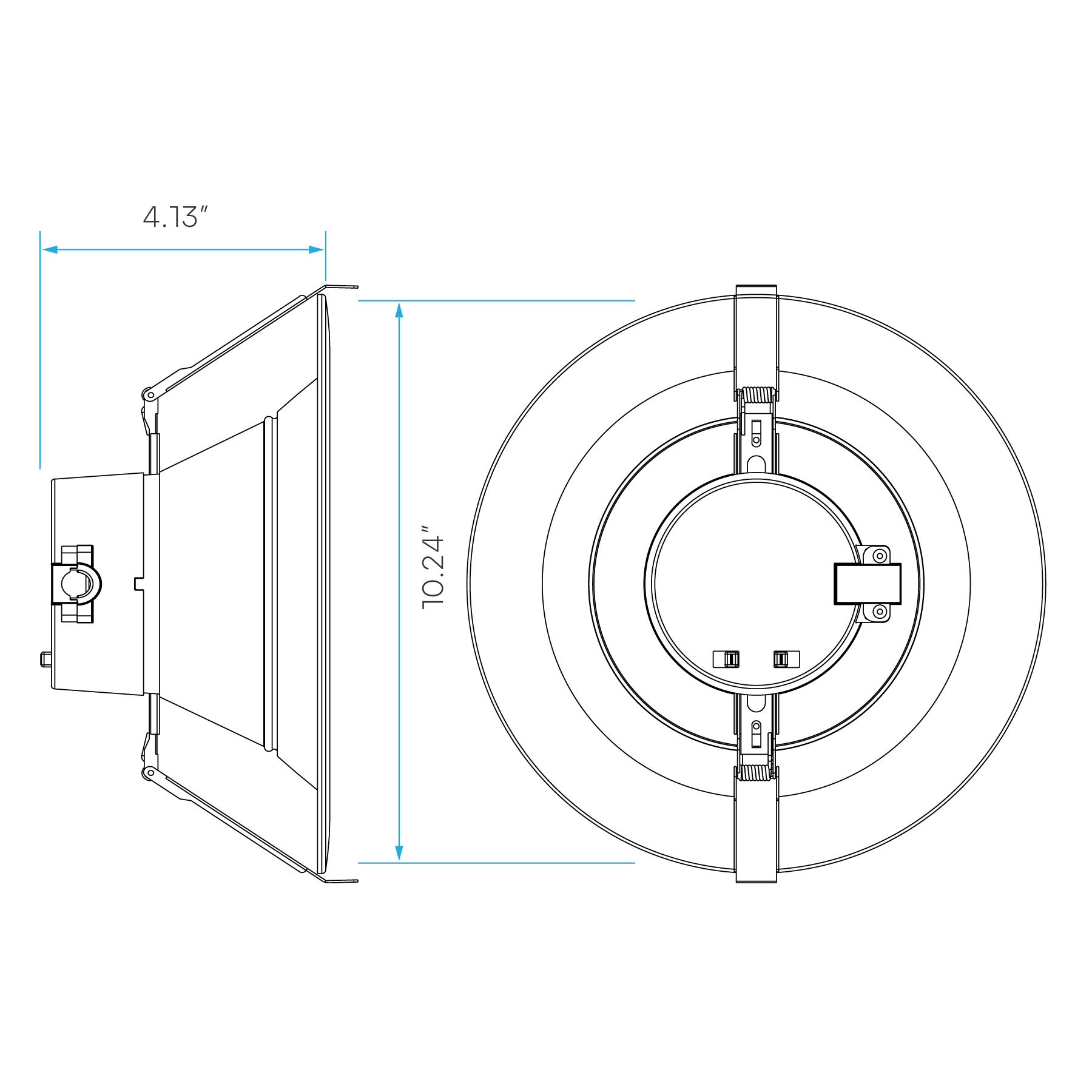

- Dimensions
- Width Ø10.24"
- Depth 4.13"
- Cutout 7.87"
- Finish WHITE

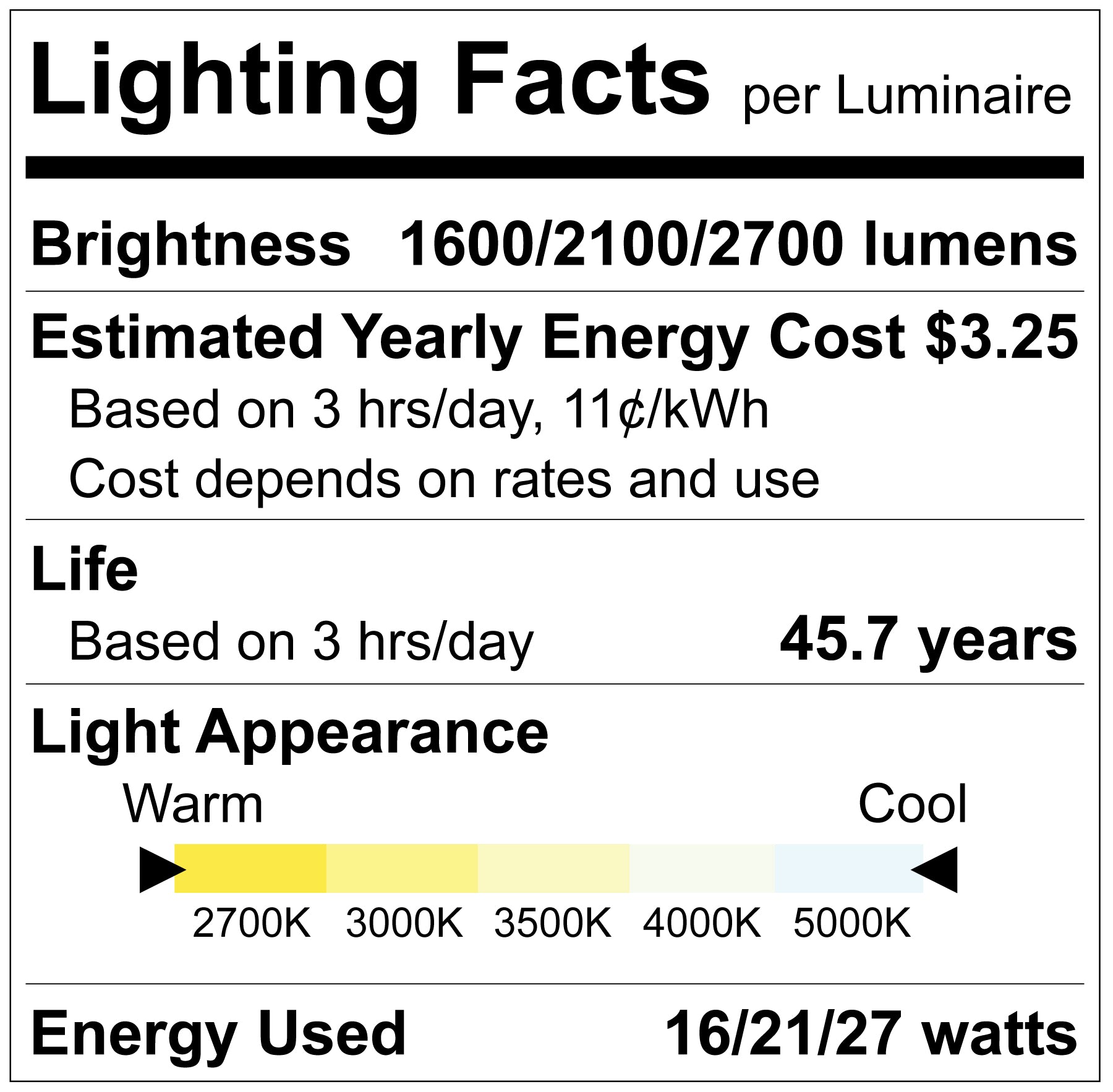

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1600/2100/2700
- Beam Angle 120º
- CRI 80
ELECTRICAL
- Power (Wattage) 16/21/27
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $3.25
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 100
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388924264
- Master BarCode 10732388924261
- Master Carton Dimensions:
- Length 25.39''
- Width 21.06''
- Height 10.83''
- Case Size 10
