SPECIFICATIONS
- Item numberLR23978
- Item description

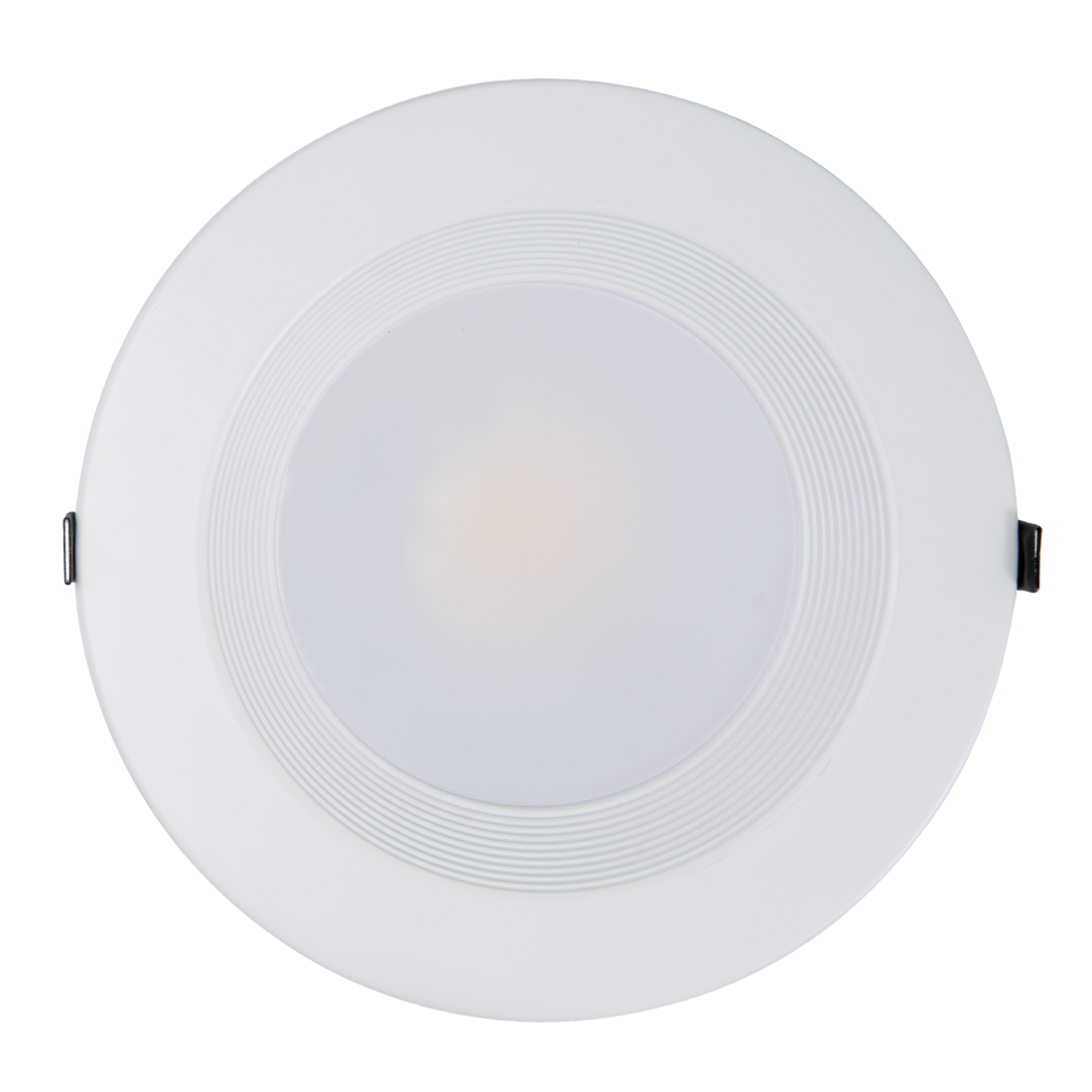

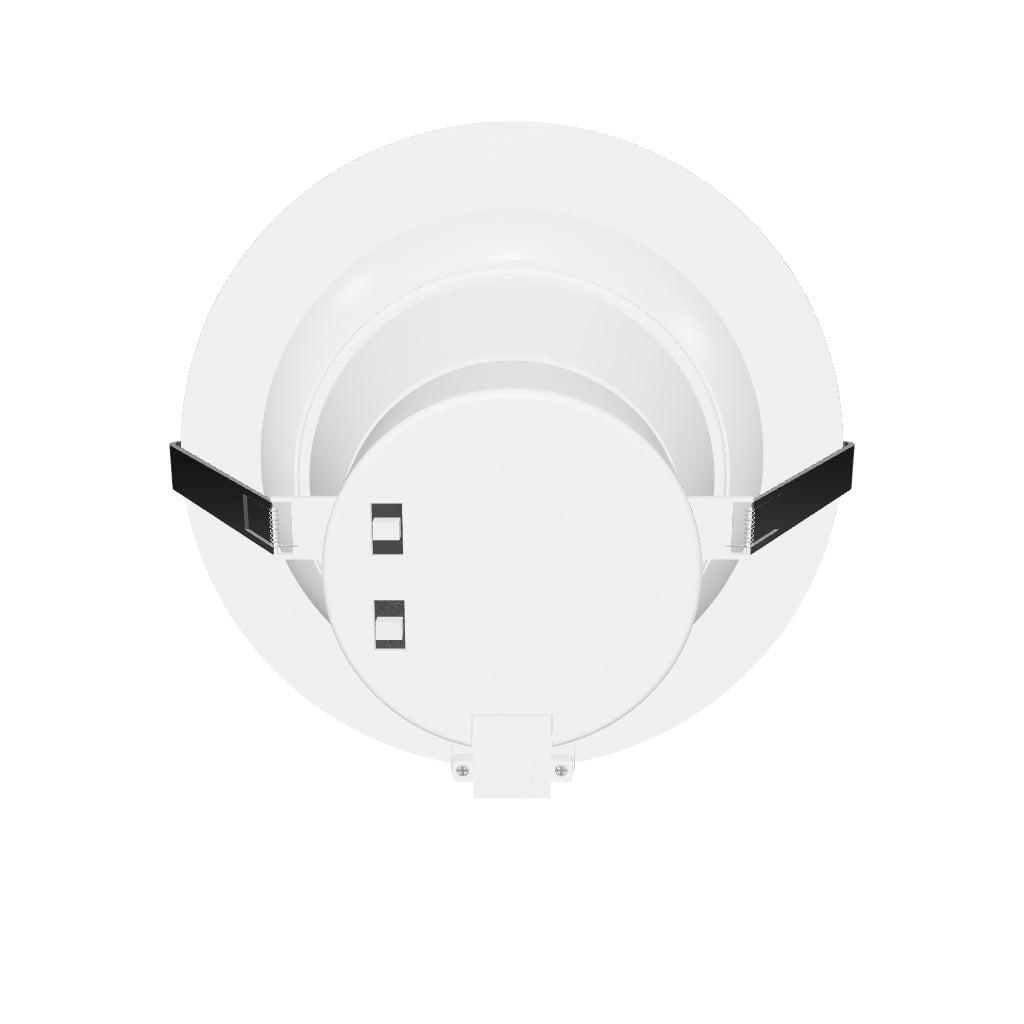

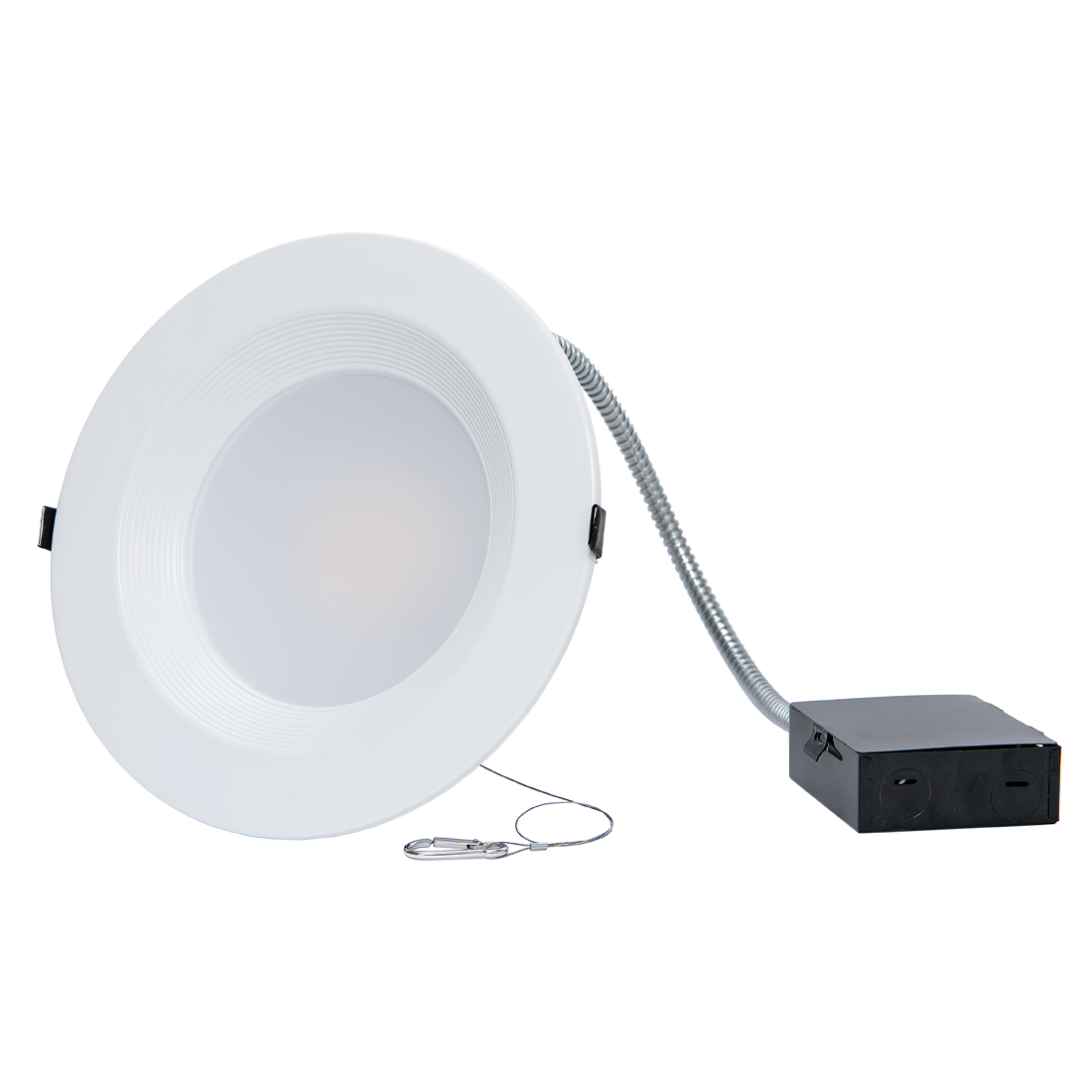

LED/CDL10HO/3WO/5CCT/B/JB/UNV/DD
- Size10"
- Shape 10" ROUND
- Dimensions
- Width Ø 11.2"
- Depth 4.72"
- Cutout 9.64"
- Finish WHITE

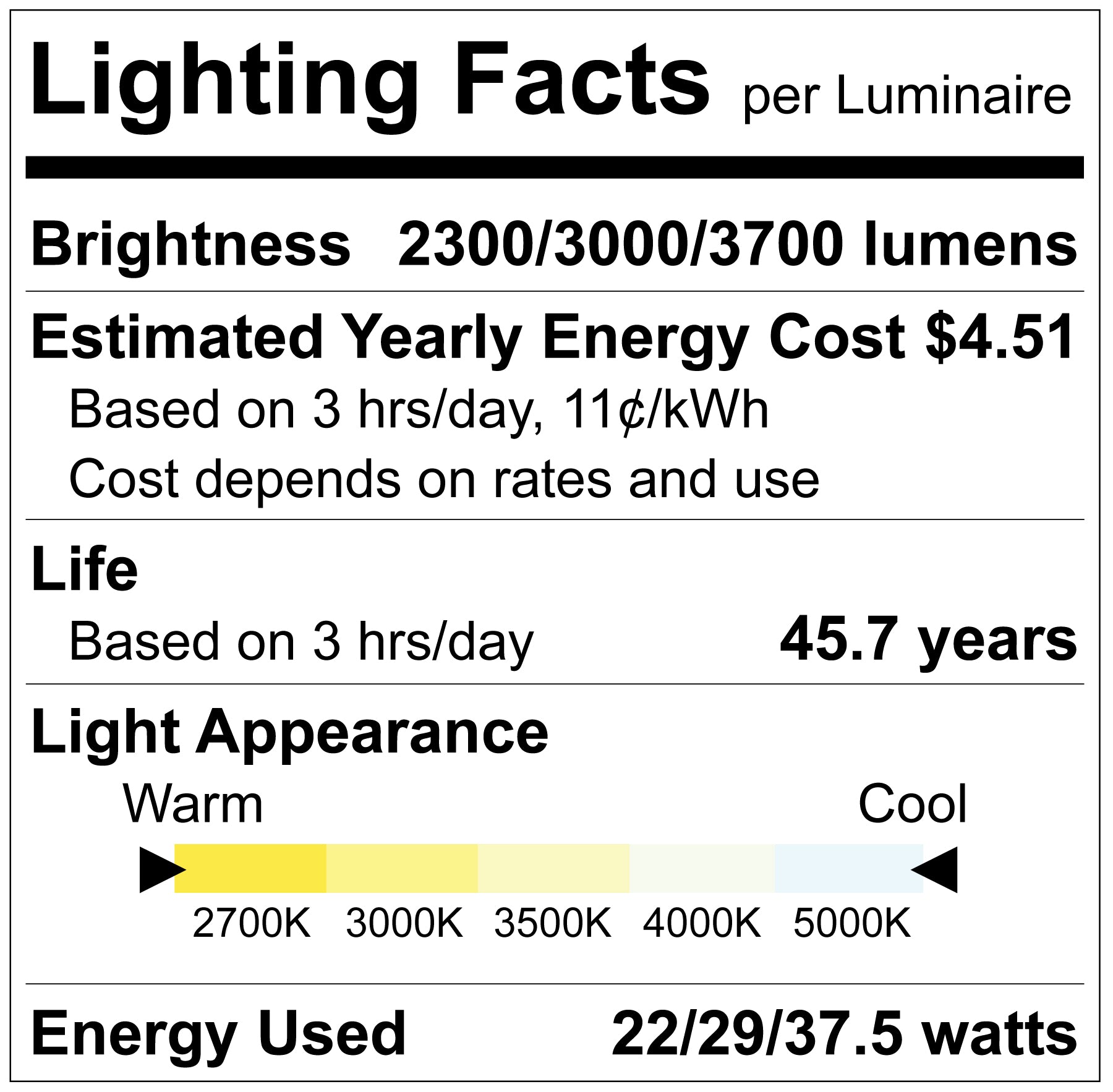

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 2300/3000/3700
- Beam Angle 120°
- CRI 80
ELECTRICAL
- Power (Wattage) 22/29/37.5
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $$4.51
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Input Current 420mA
- Frequency 50/60Hz
- Lumen Efficacy 105
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388924363
- Master BarCode 10732388924360
- Master Carton Dimensions:
- Length 31.10"
- Width 12.99"
- Height 12.40"
- Case Size 5
