LR25446

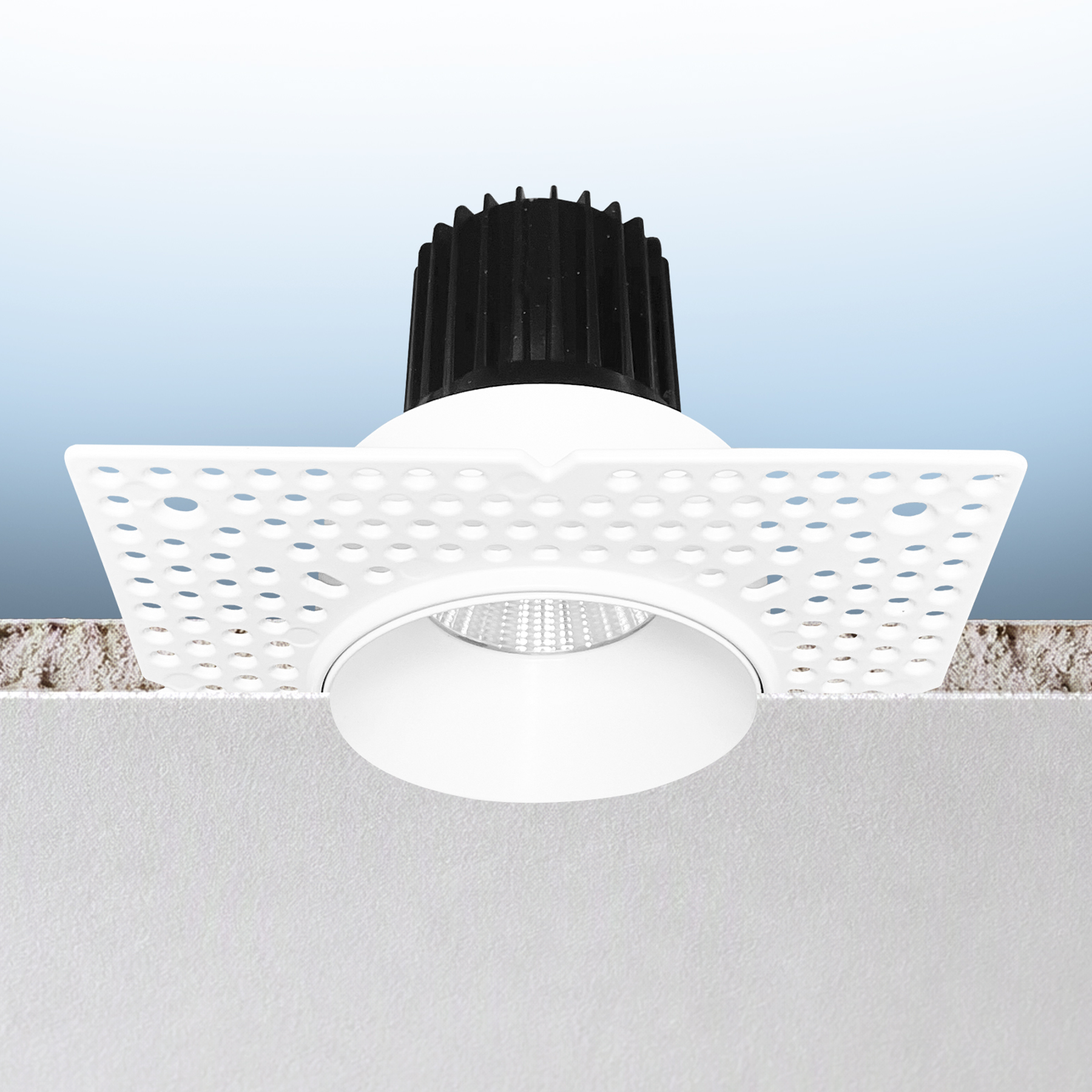

2" REGRESSED TRIMLESS PUSH N' LOCK SPOTLIGHT - CCT SELECTABLE DUAL DIMMING/UNIVERSAL VOLTAGE 60º

LED/TLMD2/5CCT/RD/WT/UNV/DD/WFL

2" REGRESSED TRIMLESS PUSH N&
2" REGRESSED TRIMLESS PUSH N&
2" REGRESSED TRIMLESS PUSH N&
2" REGRESSED TRIMLESS PUSH N&
3D viewer 2" REGRESSED TRIMLESS PUSH N&
2" REGRESSED TRIMLESS PUSH N&
2" REGRESSED TRIMLESS PUSH N&

LR25446

2" REGRESSED TRIMLESS PUSH N' LOCK SPOTLIGHT - CCT SELECTABLE DUAL DIMMING/UNIVERSAL VOLTAGE 60º

$0.00
/

LED/TLMD2/5CCT/RD/WT/UNV/DD/WFL

  • CCT 2700K/3000K/3500K/4000K/50000K
  • Lumen 1100
  • WATT 12
  • Size2"

SPECIFICATIONS

  • Item numberLR25446
  • Item description

    LED/TLMD2/5CCT/RD/WT/UNV/DD/WFL

  • Size2"
  • Shape REGRESSED TRIMLESS
  • Dimensions
    • Length 4.72"
    • Width 4.72"
    • Depth 3.66"
  • Cutout Ø3"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/50000K
  • Lumen 1100
  • Beam Angle 38º
  • CRI 90

ELECTRICAL

  • Power (Wattage) 12
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $1.44
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Frequency 60Hz
  • Lumen Efficacy 91
  • Operating Temp:
    • Min -4º
    • Max 113º

PACKAGING

  • UPC Barcode 793888476042
  • Master BarCode 10793888476049
  • Master Carton Dimensions:
    • Length 20.66"
    • Width 17.32"
    • Height 14.17"

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
