SPECIFICATIONS
- Item numberLR23322
- Item description
LED/RDL3/5CCT/SQ/WT2
- Size3"

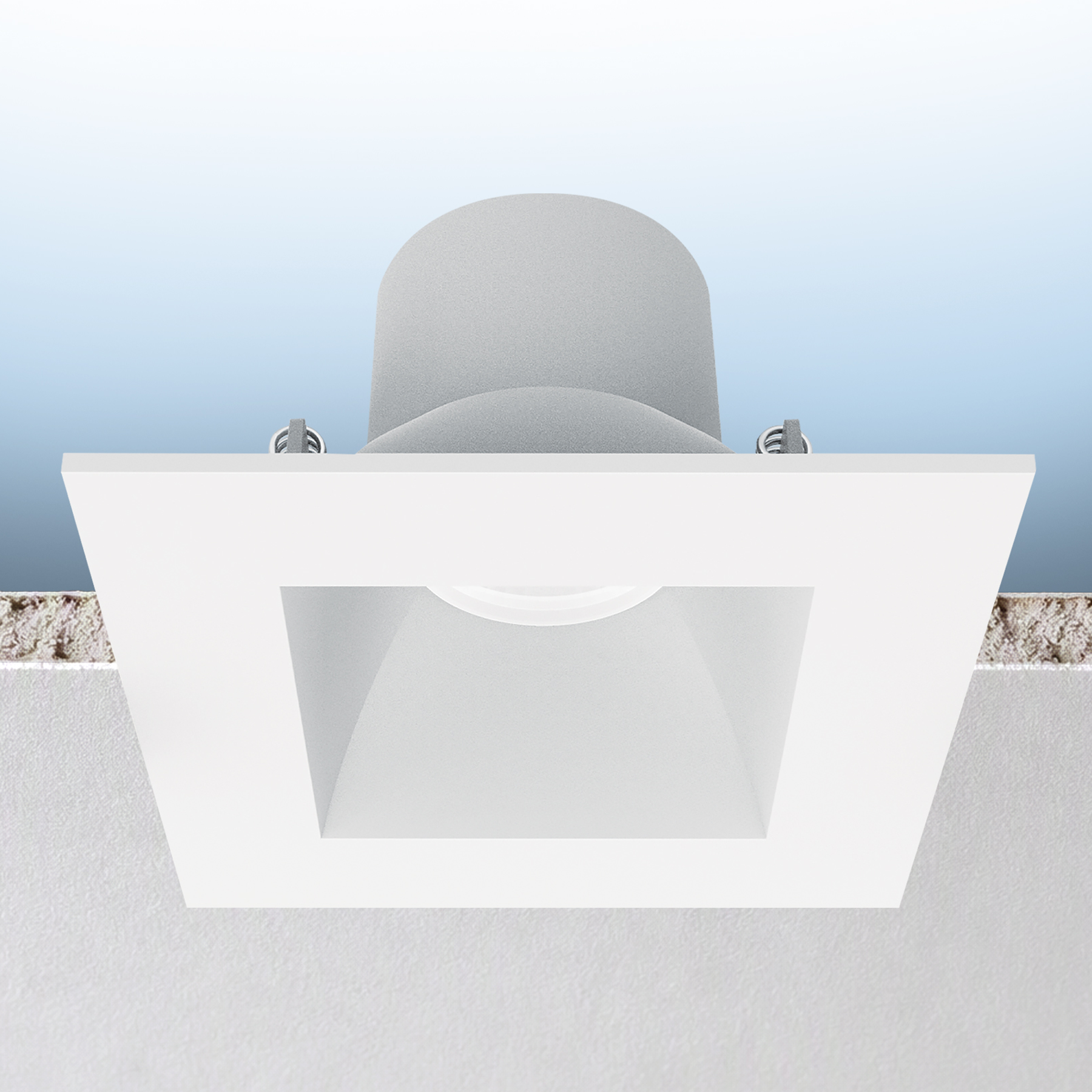

- Shape 3" SQUARE REGRESSED
- Dimensions
- Length 3.54"
- Width 3.54"
- Depth 2.65"
- Cutout 3"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 740
- Beam Angle 45Āŗ
- CRI 90
ELECTRICAL
- Power (Wattage) 8
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $0.96
- Dimmable TRIAC
- Power Factor 0.9
- Input Current 0.70A
- Frequency 60Hz
- Lumen Efficacy 93
- Operating Temp:
- Min -4Āŗ
- Max 104Āŗ
PACKAGING
- UPC Barcode 793888440647
- Master BarCode 10793888440644
- Master Carton Dimensions:
- Length 17.51"
- Width 15.95"
- Height 9.84"
- Weight 8.64kg
- Case Size 24
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. Itās designed to help industry experts formulate and display predicted lighting performance.
