LR38001

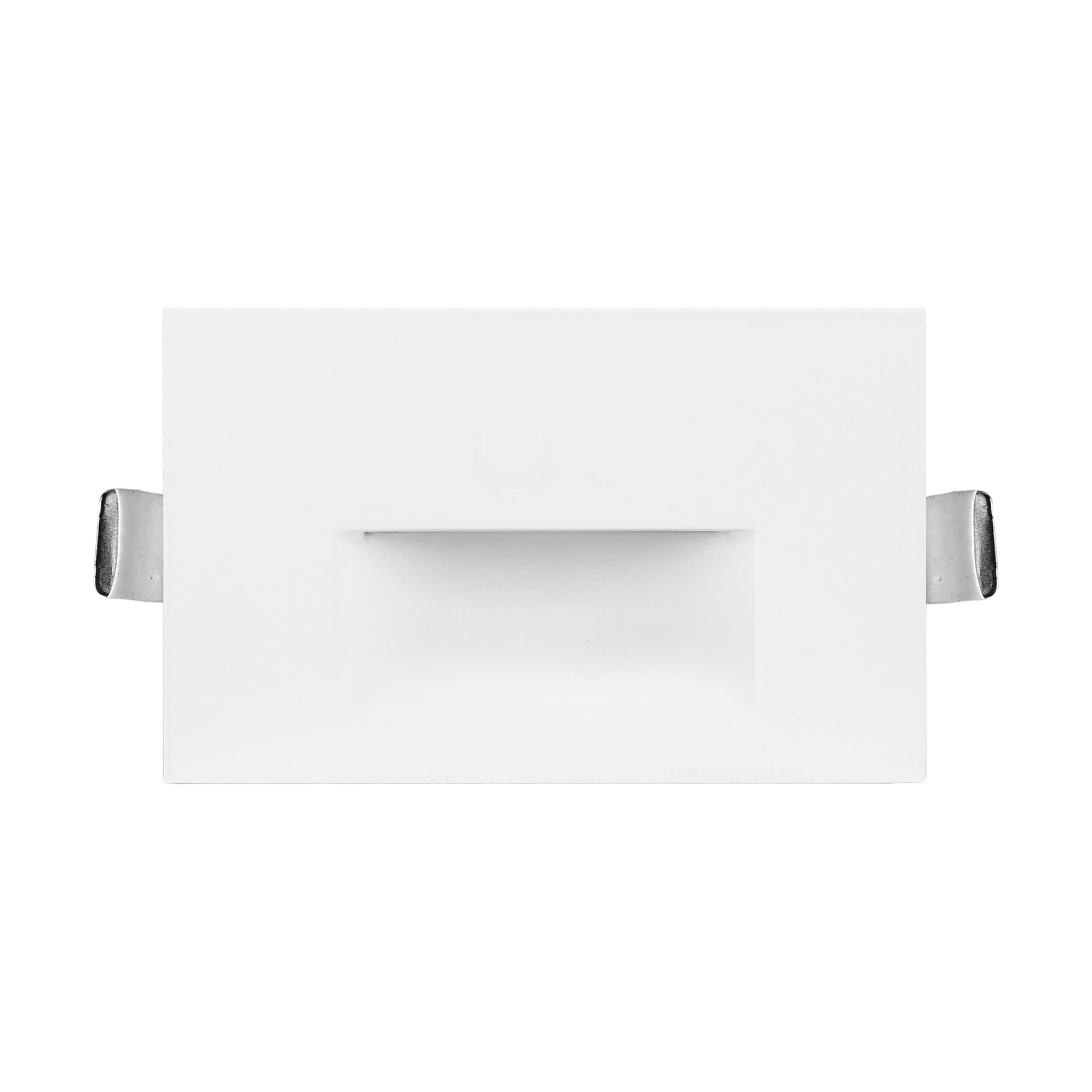

3W CLIP-IN HORIZONTAL STEP-LIGHT - 5CCT SELECTABLE WHITE FINISH

LEDSTEP/CL/3W/5CCT/HOR/WT

LR38001

3W CLIP-IN HORIZONTAL STEP-LIGHT - 5CCT SELECTABLE WHITE FINISH

$0.00
/

LEDSTEP/CL/3W/5CCT/HOR/WT

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 150
  • WATT 3

SPECIFICATIONS

  • Item numberLR38001
  • Item description

    LEDSTEP/CL/3W/5CCT/HOR/WT

  • Shape STEP LIGHT

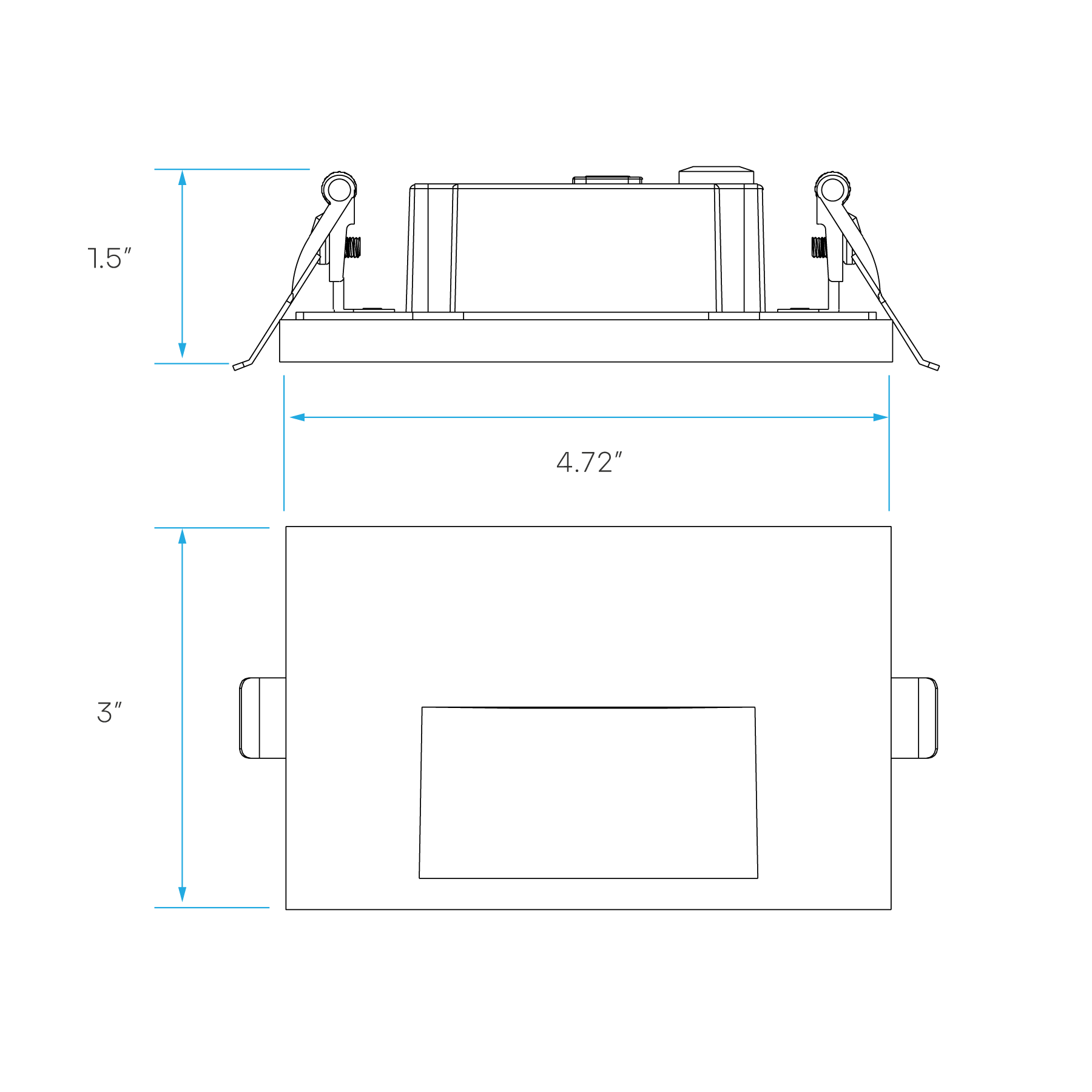

  • Dimensions
    • Length 4.72"
    • Width 3"
    • Depth 1.5"
  • Cutout 4.14" x 1.97"
  • Finish WHITE

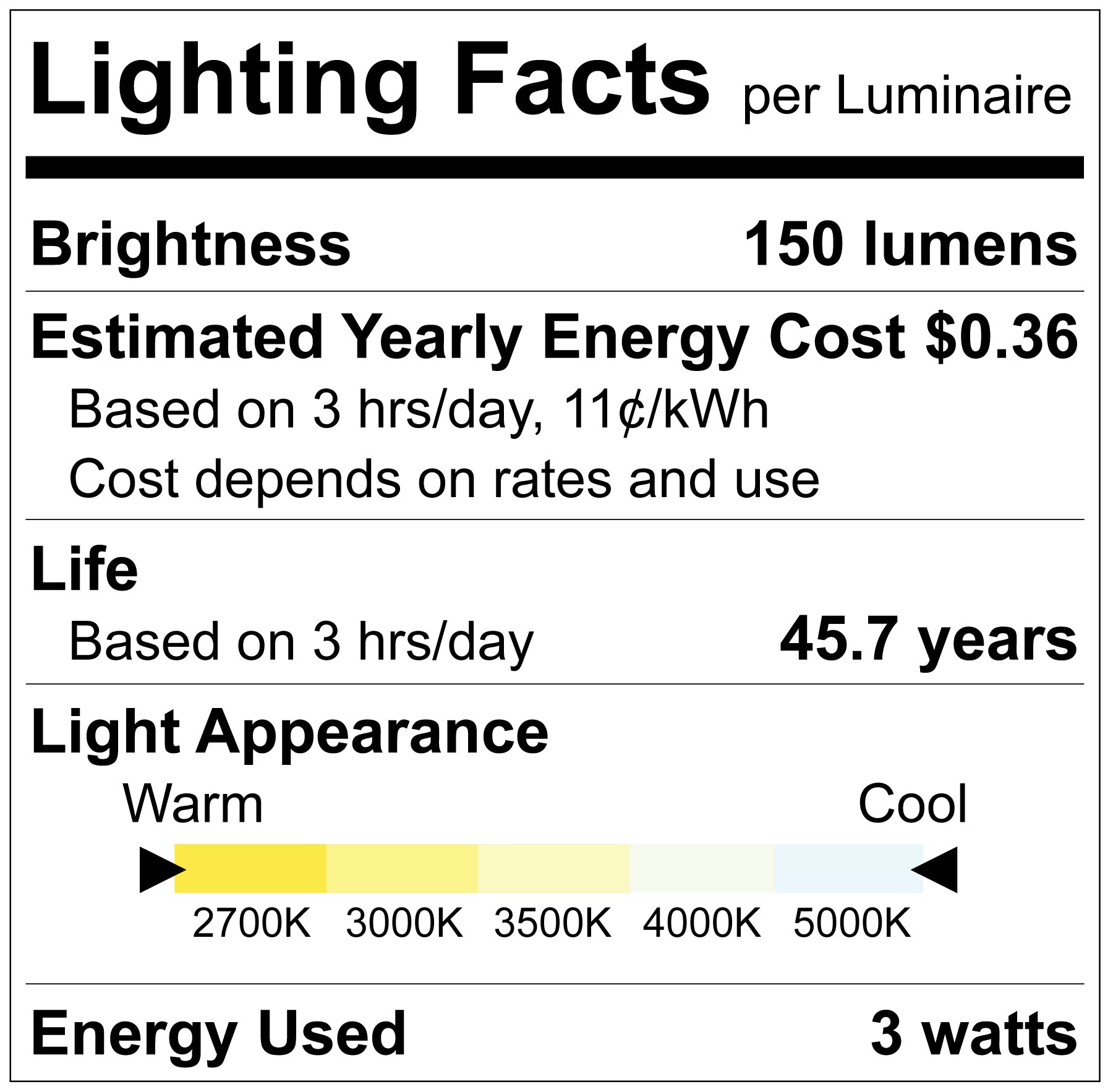

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 150
  • Beam Angle 90°
  • CRI 80

ELECTRICAL

  • Power (Wattage) 3
  • Input Volts 120V
  • Rated Lifetime 50000
  • Yearly Cost $0.36
  • Dimmable TRIAC
  • Power Factor 0.9
  • Frequency 60Hz
  • Lumen Efficacy 28
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 732388960262
  • Master BarCode 10732388960269
  • Master Carton Dimensions:
    • Length 15.94"
    • Width 12.40"
    • Height 8.07"
  • Case Size 18

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS
