LR36145

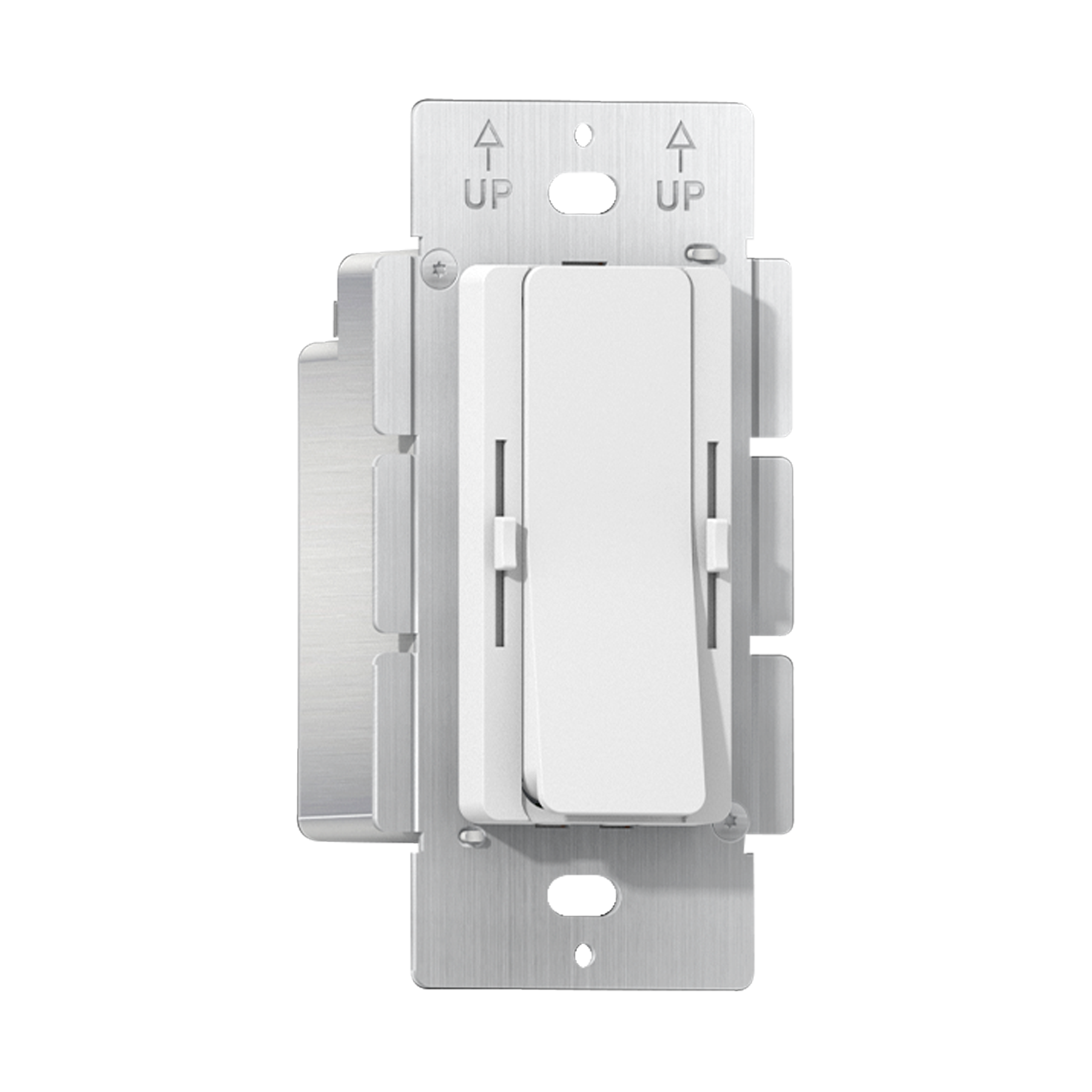

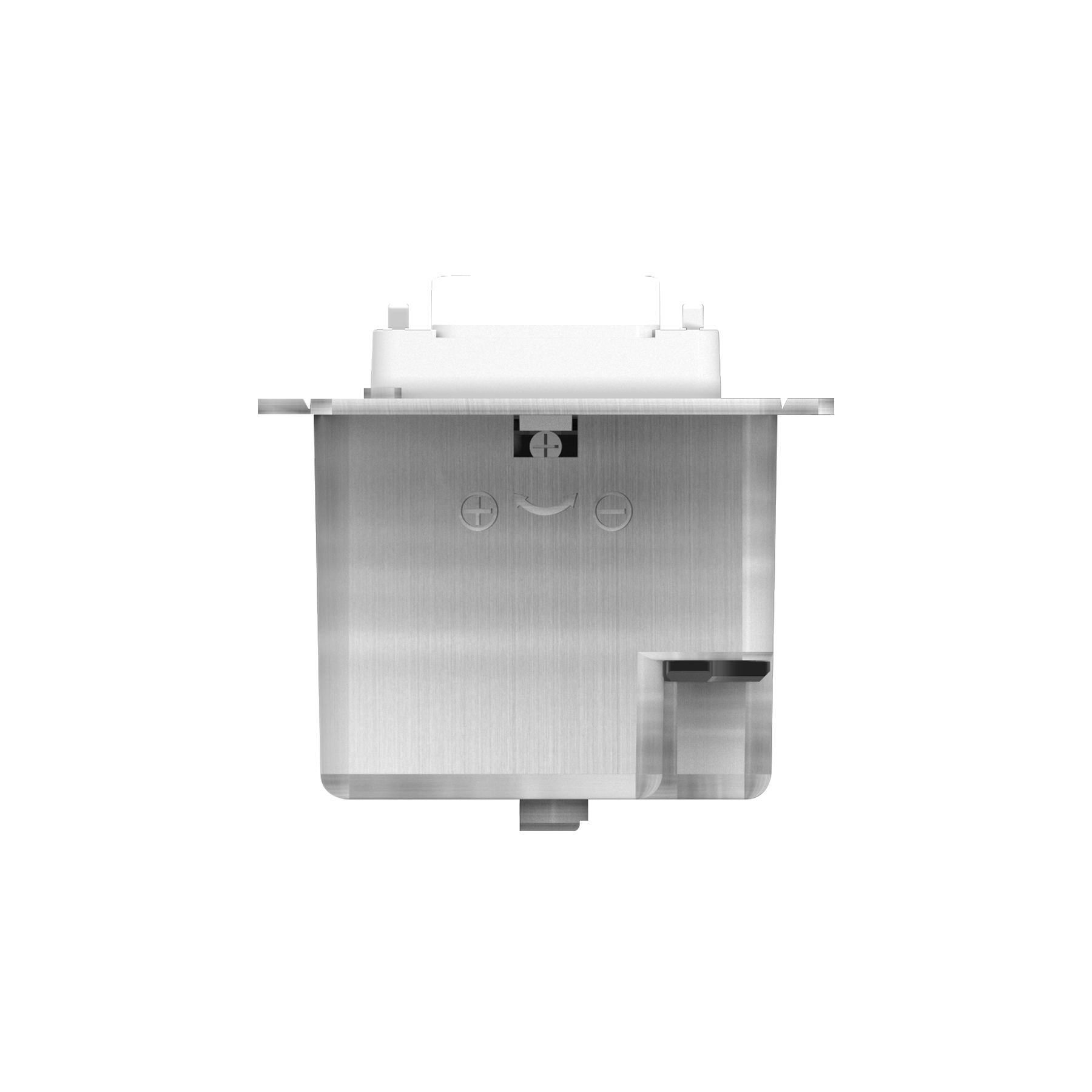

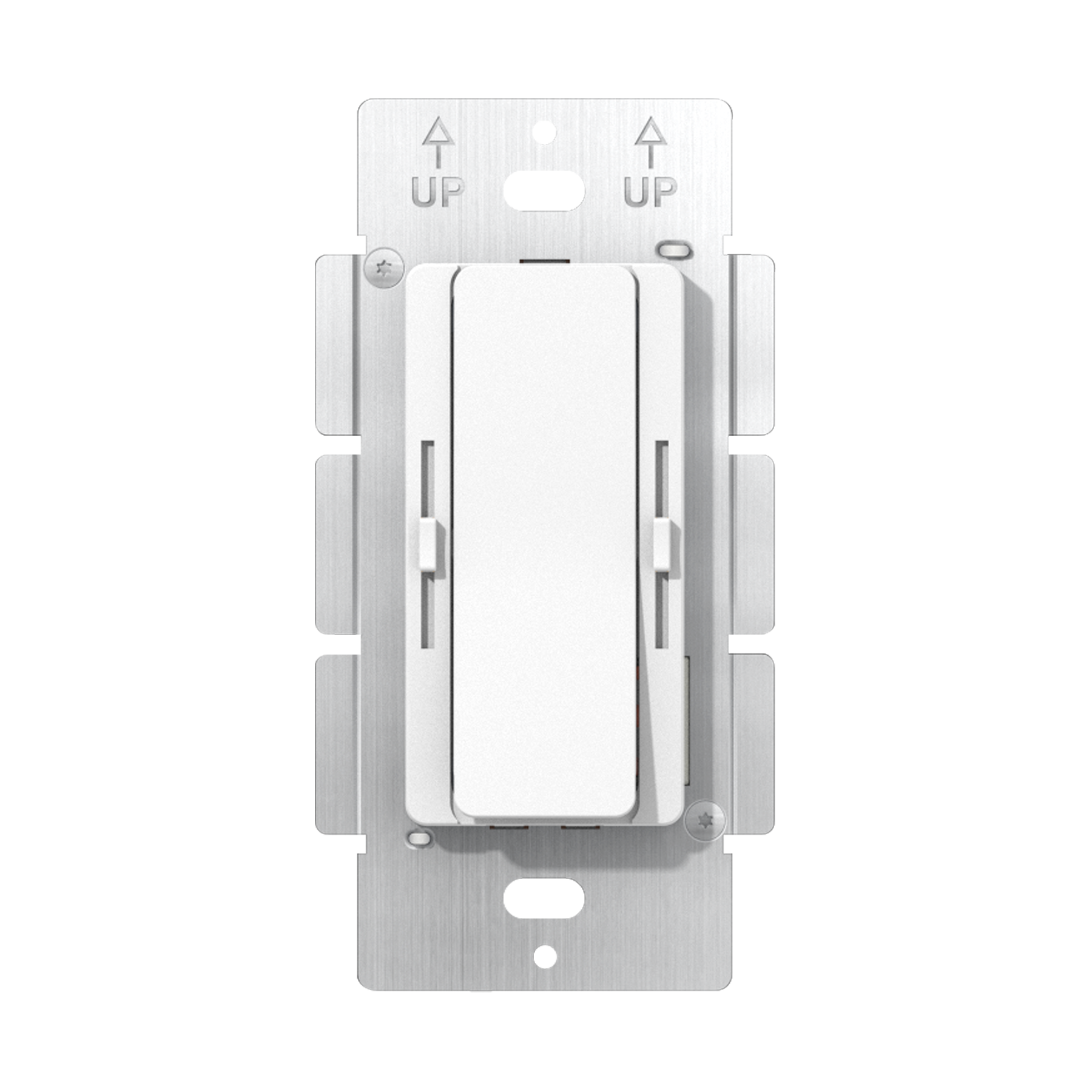

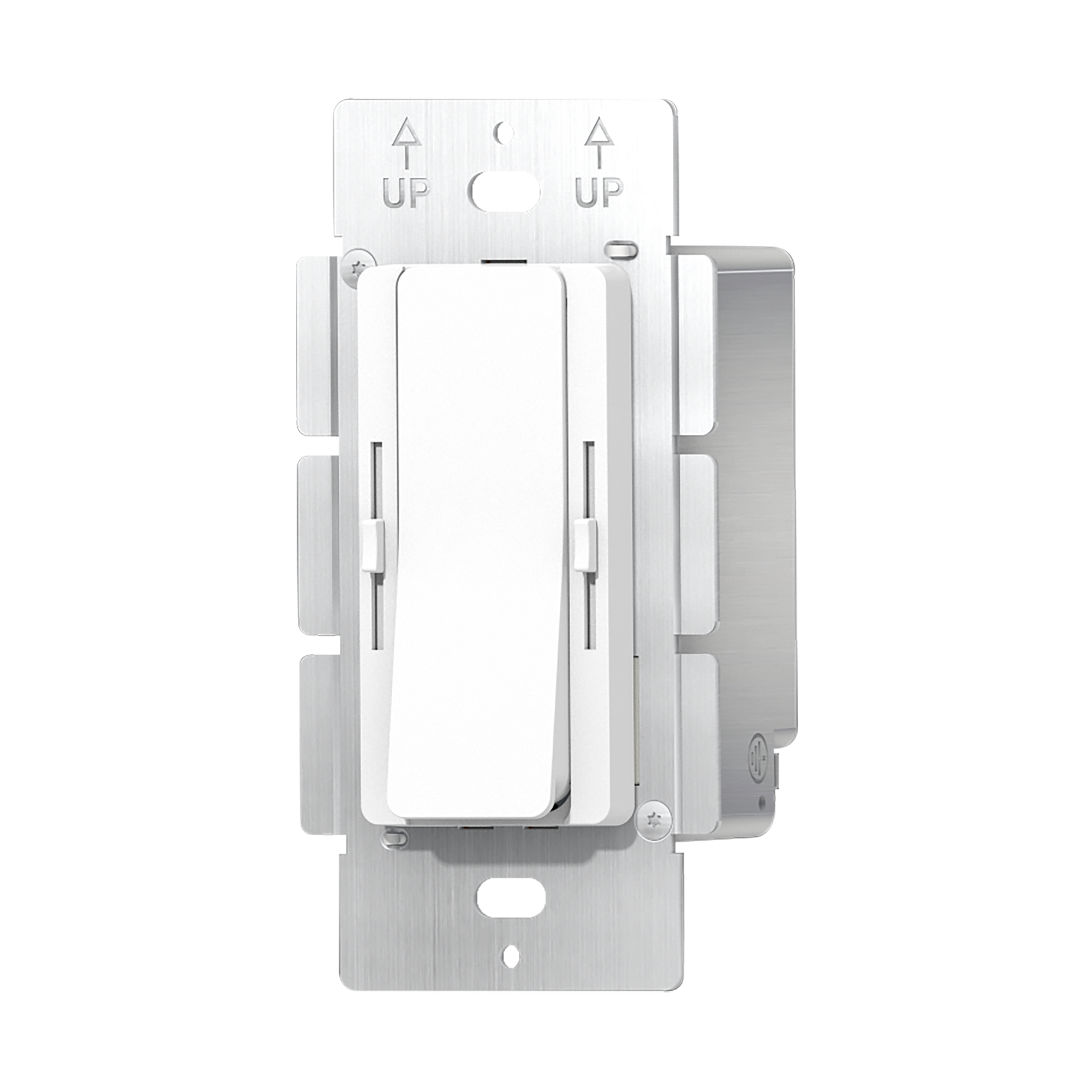

96W SMART WiFi & BLUETOOTH MICRO ELECTRONIC CONSTANT VOLTAGE DRIVER + DIMMER + CCT SLIDER

LED/SMRT/DM/MDRV/CCT/CV2/96/24V/120V

LR36145

96W SMART WiFi & BLUETOOTH MICRO ELECTRONIC CONSTANT VOLTAGE DRIVER + DIMMER + CCT SLIDER

$0.00
/

LED/SMRT/DM/MDRV/CCT/CV2/96/24V/120V

  • DC voltage 24V
  • Rated Power 96W
  • Voltage Range 120V

SPECIFICATIONS

  • Item numberLR36145
  • Item description

    LED/SMRT/DM/MDRV/CCT/CV2/96/24V/120V

OUTPUT

  • DC voltage 24V
  • Rated Current 4A
  • Rated Power 96W
  • Voltage Tolerance Ā±0.5V
  • Load Regulation <1%

INPUT

  • Voltage Range 120V
  • Frequency Range 60Hz
  • Power Factorļ¼ˆTyp.ļ¼‰@ full load 0.99
  • THDļ¼ˆTyp.ļ¼‰@ full load <10%
  • Efficiencyļ¼ˆTyp.ļ¼‰@ full load 91%
  • AC Currentļ¼ˆMax.ļ¼‰ 0.9A
  • Inrush Current ļ¼ˆTyp.ļ¼‰ 50A, 150us@50% Ipeak
  • Leakage current <0.5mA

Protection

  • Over Loading ā‰„110% Hiccup mode, recovers automatically after fault condition is removed
  • Over temperature When the shell surface temperature reaches 212ĀŗF +/- 50ĀŗF, shut down o/p voltage and automatically recover after cooling.

Environment

  • Working TEMP. - 40ĀŗF ~ +140Ā°F
  • Working Humidity 20~95%RH NON-CONDENSING
  • Storage TEMP. Humidity - 40ĀŗF ~ +176Ā°F, 10-95% RH NON-CONDENSING
  • TEMP. coefficient Ā±0.03% /ĀŗC (0~50ĀŗC)
  • Vibration 10~500Hz, 2G 12min./1 cycle, period for 72 min. each along X,Y,Z axes

Safety & EMC

  • Safety standards UL8750
  • Withstand voltage 1.88KVAC
  • Isolation resistance 100M/500VDC/25ĀŗC/70%RH
  • EMC EMISSION FCC Part 15, Subpart B ANSI C63.4:2014

MISC

  • POWER FACTOR 0.99
  • DIMMABLE YES
  • DIMMING RANGE 0.3% - 100%
  • DIMMING TYPE TRIAC/PHASE
  • LOAD 10-100%

CERTIFICATIONS

PACKAGING

  • Dimensions:
    • Length 15.15'
    • Width 9.65"
    • Height 7.09"
  • Case Size 20
  • UPC Barcode 732388968268
  • Master BarCode 10732388968265
