SPECIFICATIONS

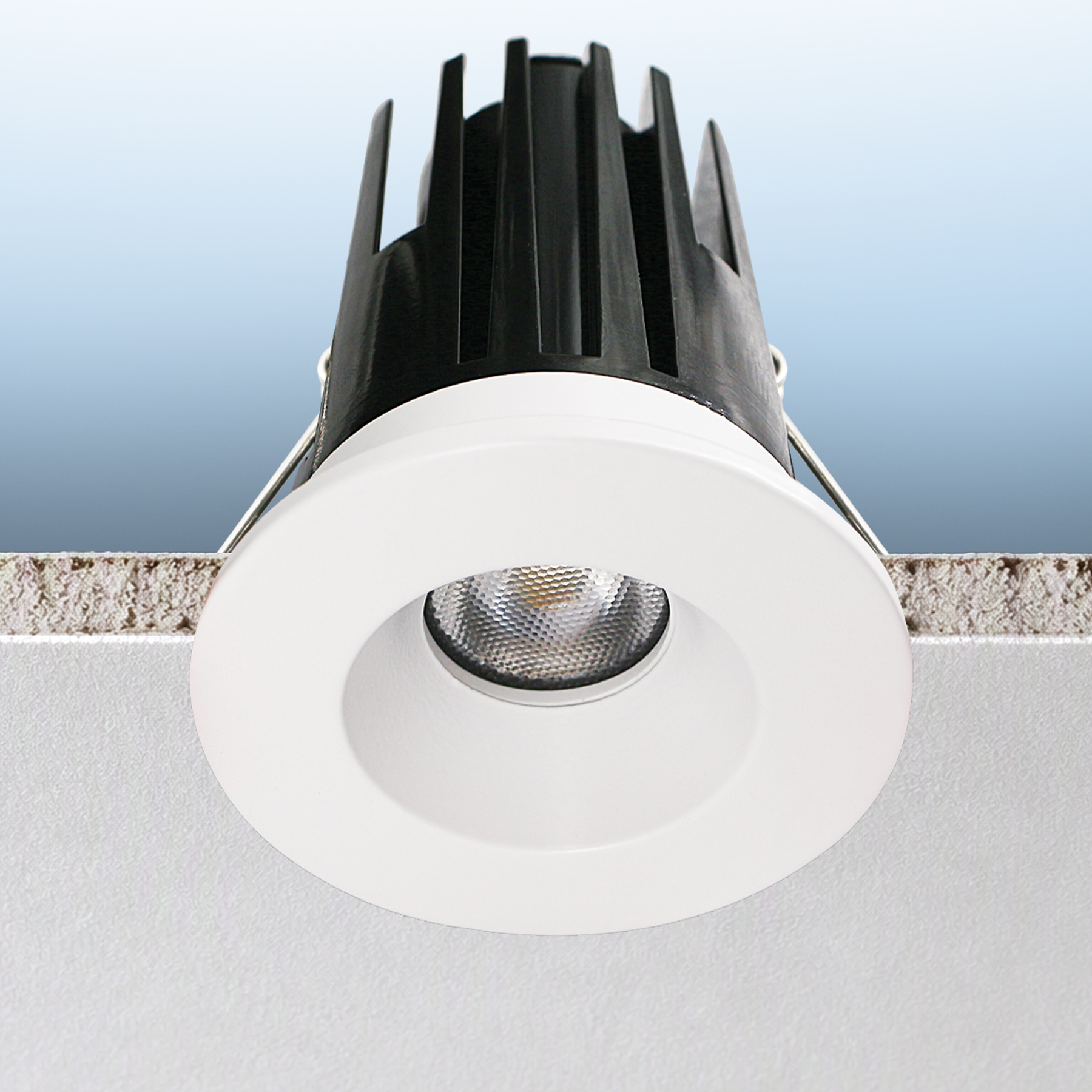

- Item numberLR23460
- Item description
LED/DLMD1/5CCT/RD/WT
- Size1"
- Shape 1" INTERCHANGABLE
- Dimensions
- Width Ø 2.36"
- Depth 3.34"
- Cutout 2.12"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 500
- Beam Angle 30°
- CRI 90
ELECTRICAL
- Power (Wattage) 7
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $0.84
- Dimmable TRIAC
- Power Factor >0.9
- Input Current 80mA
- Frequency 60Hz
- Lumen Efficacy 71
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 644216102112
- Master BarCode 10644216102119
- Master Carton Dimensions:
- Length 17.51"
- Width 8.85"
- Height 13.38"
- Weight 11.14
- Case Size 24
