LR25715

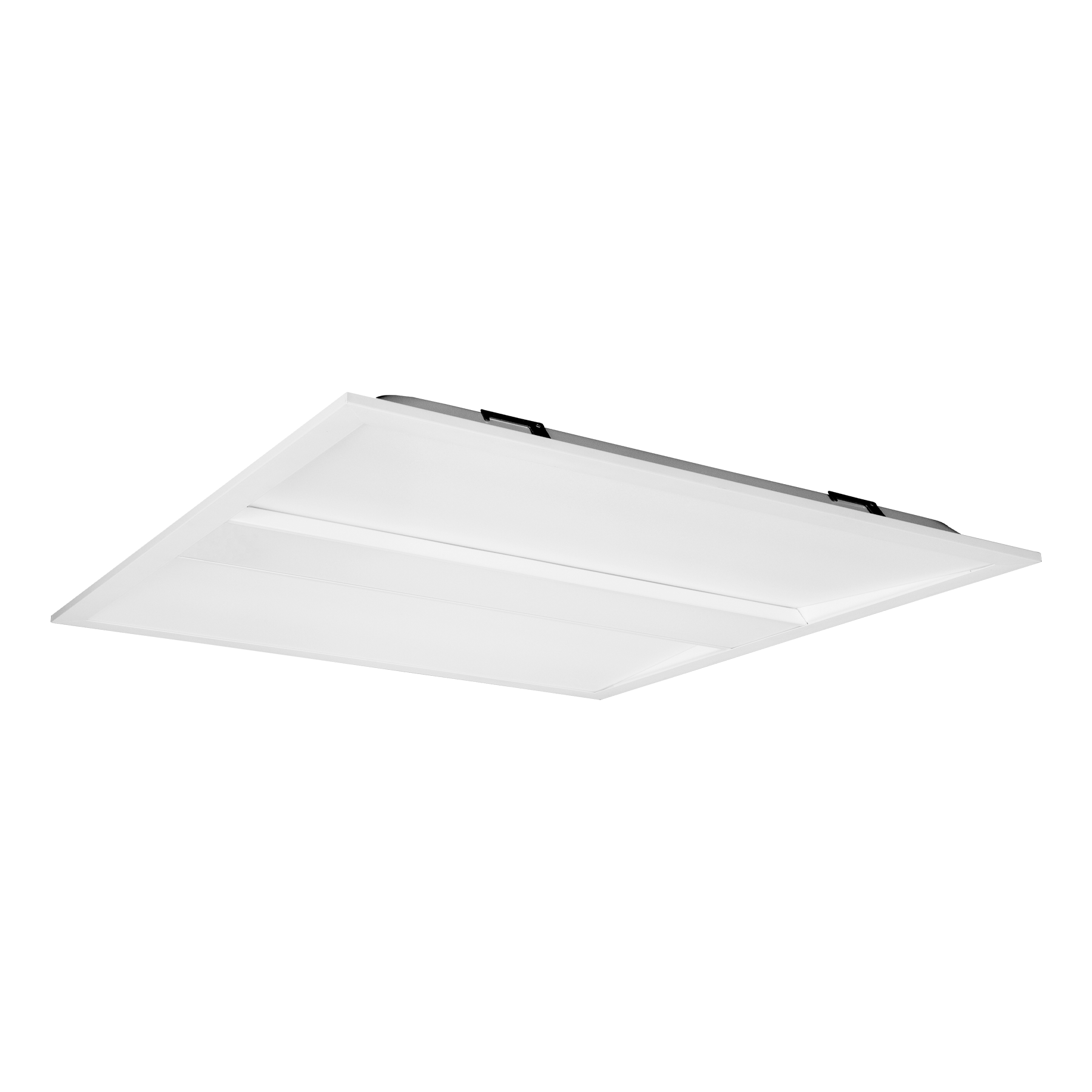

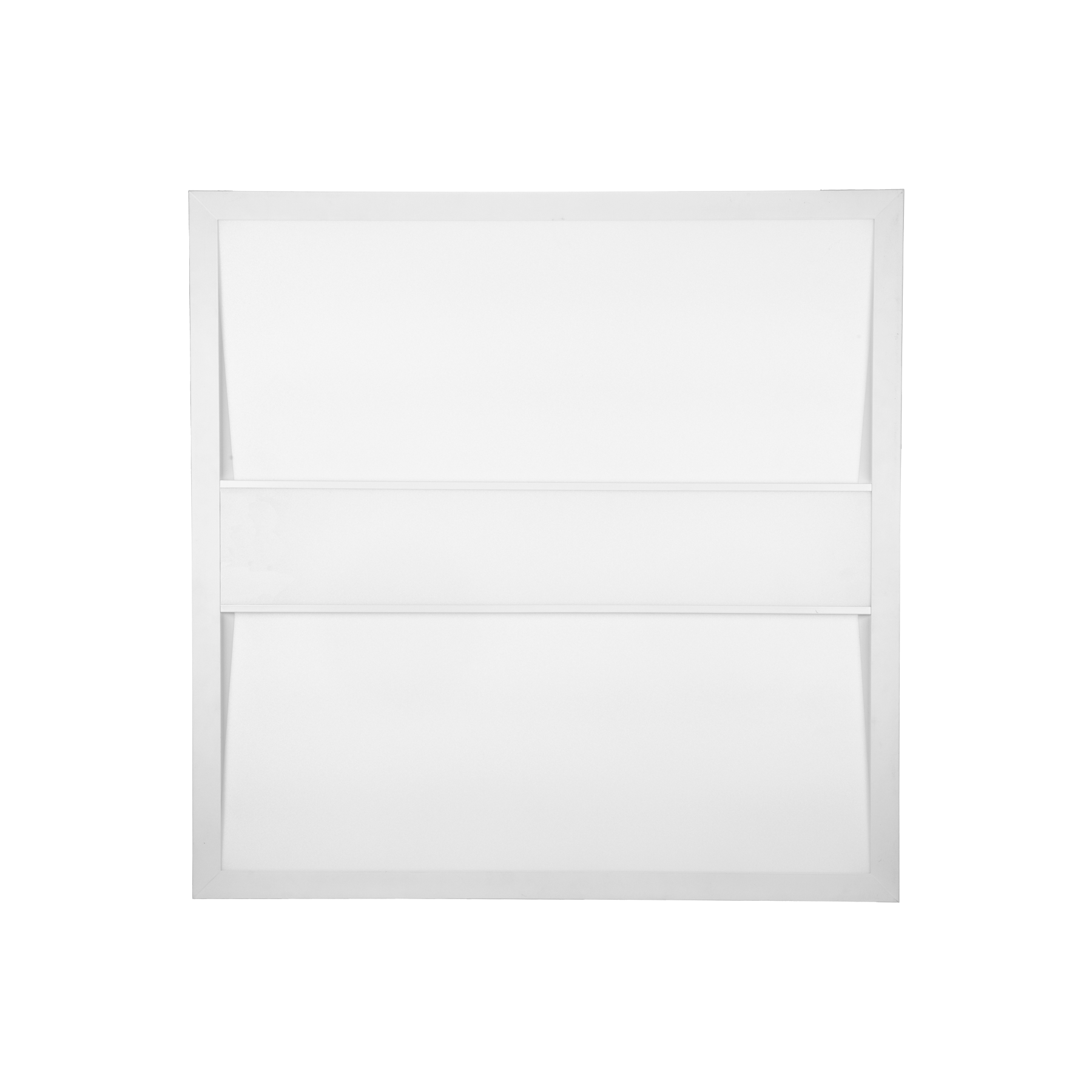

2X2 CENTER LENS DESIGNER PANEL - 5CCT & 4 WATTAGE SELECTABLE SENSOR READY

Name: 2X2 CENTER LENS DESIGNER PANEL - 5CCT & 4 WATTAGE SELECTABLE SENSOR READY
Brand: LUXRITE
SKU: LR25715
Availability: InStock

LED2X2DPNL/4WO/5CCT/HC/CL/SR

LR25715

2X2 CENTER LENS DESIGNER PANEL - 5CCT & 4 WATTAGE SELECTABLE SENSOR READY

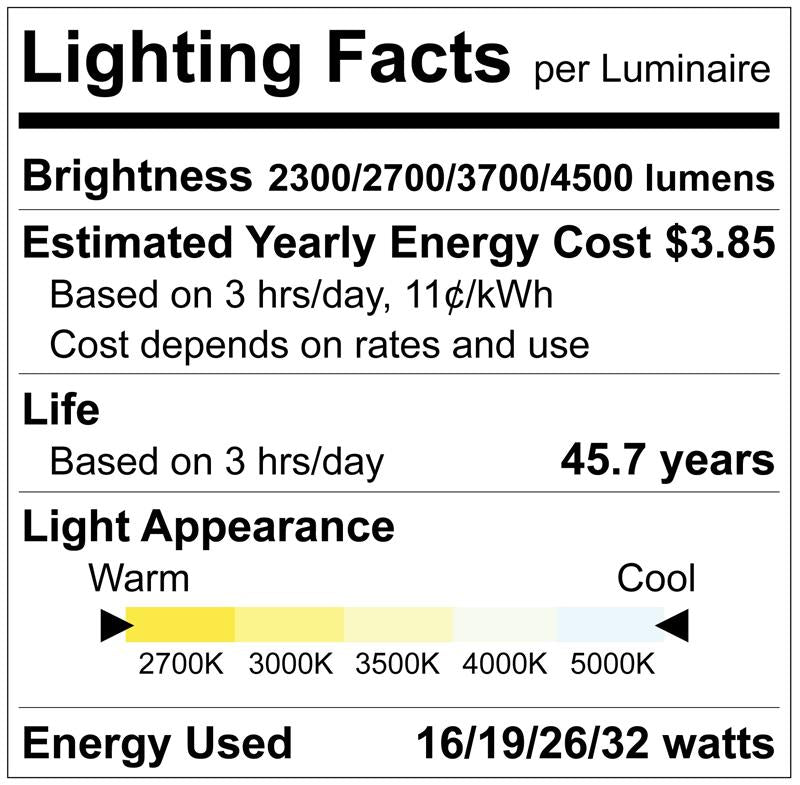

CCT 3500K/4000K/5000K
Lumen 2300/2700/3700/4500
WATT 16/19/26/32
Size2X2

SPECIFICATIONS

Item numberLR25715
Item description
LED2X2DPNL/4WO/5CCT/HC/CL/SR
Size2X2
Shape 2X2
Dimensions

Length 23.74"
Width 23.74"
Height 1.3"

Finish WHITE

PHOTOMETRIC

Color (Temp) CCT SELECTABLE
Color (CCT) 3500K/4000K/5000K
Lumen 2300/2700/3700/4500
Beam Angle 120°
CRI 90

ELECTRICAL

Power (Wattage) 16/19/26/32
Input Volts 120-277V
Rated Lifetime 50000
Yearly Cost $3.85
Dimmable 0-10V
Power Factor 0.9
Frequency 50/60Hz
Lumen Efficacy 140
Operating Temp:

Min -4°
Max 122°

PACKAGING

UPC Barcode 732388961368
Master BarCode 10732388961365
Master Carton Dimensions:

Length 25.19"
Width 25.59"
Height 3.29"

Case Size 2

FEATURES

CERTIFICATIONS

DOCUMENTS

LUXIFLOW

Lighting Layout Software

Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
