LR25717

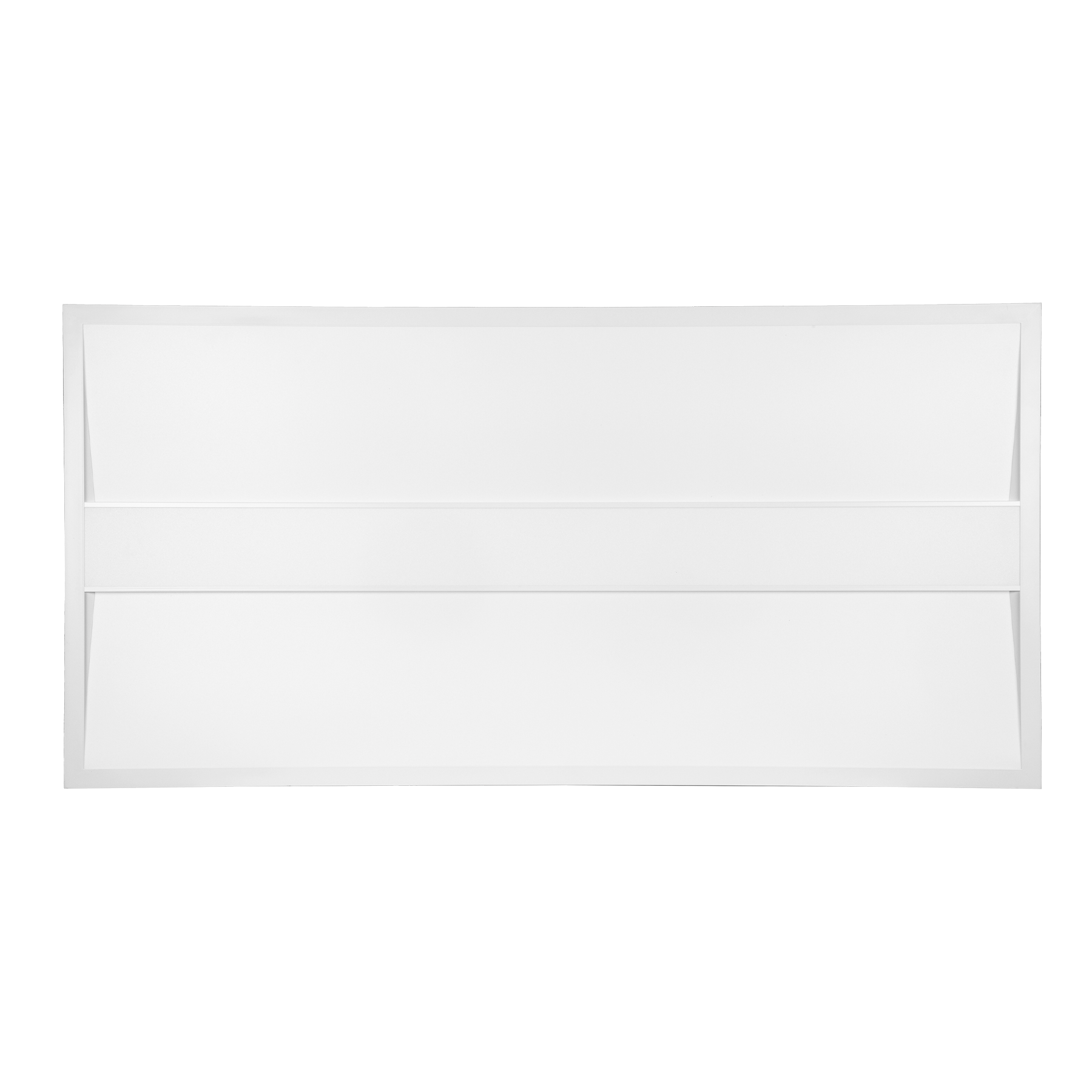

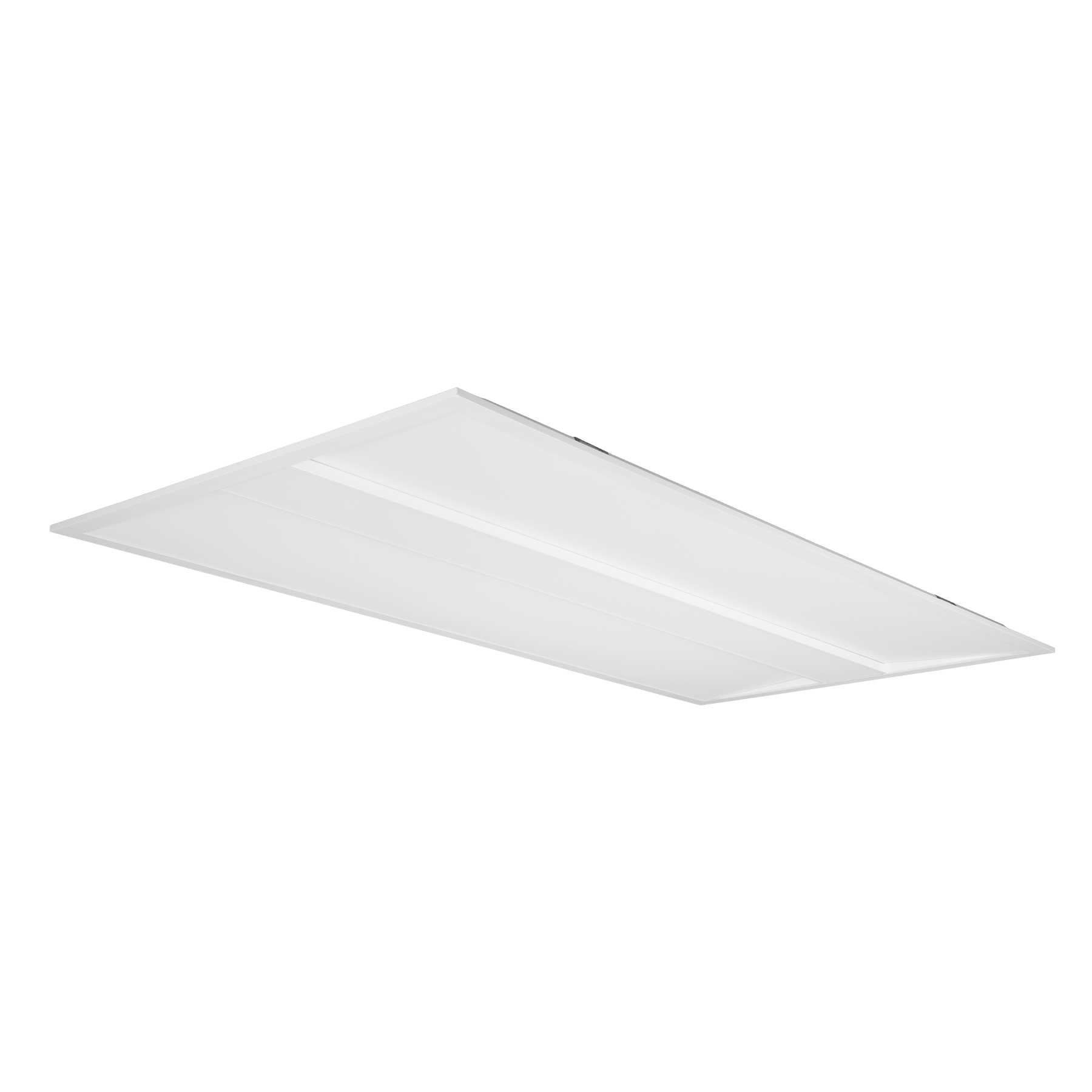

2X4 CENTER LENS DESIGNER PANEL - 5CCT & 4 WATTAGE SELECTABLE SENSOR READY

Name: 2X4 CENTER LENS DESIGNER PANEL - 5CCT & 4 WATTAGE SELECTABLE SENSOR READY
Brand: LUXRITE
SKU: LR25717
Availability: InStock

LED2X4DPNL/4WO/5CCT/HC/CL/SR

LR25717

2X4 CENTER LENS DESIGNER PANEL - 5CCT & 4 WATTAGE SELECTABLE SENSOR READY

CCT 2700K/3000K/3500K/4000K/5000K
Lumen 6,000/7,000/8,000/10,000
WATT 22/30/36/43
Size2X4

SPECIFICATIONS

Item numberLR25717
Item description
LED2X4DPNL/4WO/5CCT/HC/CL/SR
Size2X4
Shape 2X4
Dimensions

Length 47.7"
Width 23.7"
Height 1.3"

Finish WHITE

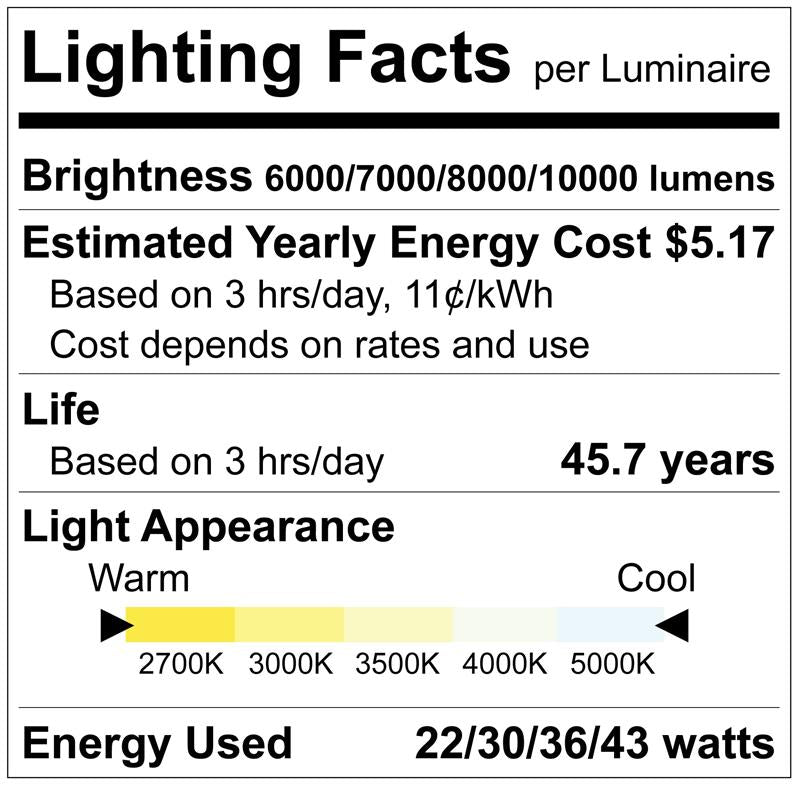

PHOTOMETRIC

Color (Temp) CCT SELECTABLE
Color (CCT) 2700K/3000K/3500K/4000K/5000K
Lumen 6,000/7,000/8,000/10,000
Beam Angle 120°
CRI 90

ELECTRICAL

Power (Wattage) 22/30/36/43
Input Volts 120-277V
Rated Lifetime 50000
Yearly Cost $5.17
Dimmable 0-10V
Power Factor 0.9
Frequency 50/60Hz
Lumen Efficacy 140
Operating Temp:

Min -4°
Max 122°

PACKAGING

UPC Barcode 732388961566
Master BarCode 10732388961563
Master Carton Dimensions:

Length 48.82"
Width 25.59"
Height 3.29"

Case Size 2

FEATURES

CERTIFICATIONS

DOCUMENTS

LUXIFLOW

Lighting Layout Software

Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
