SPECIFICATIONS
- Item numberLR42680
- Item description

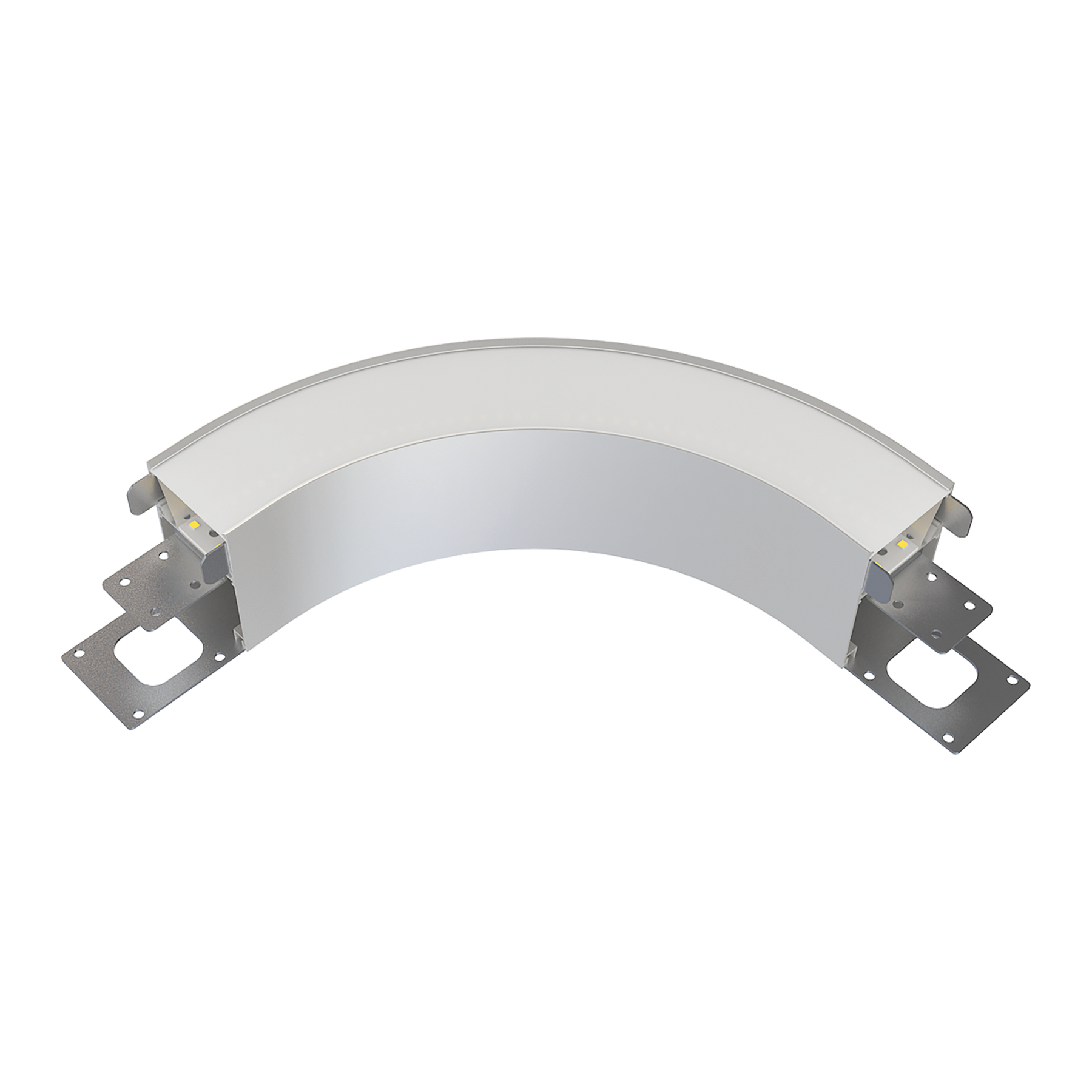

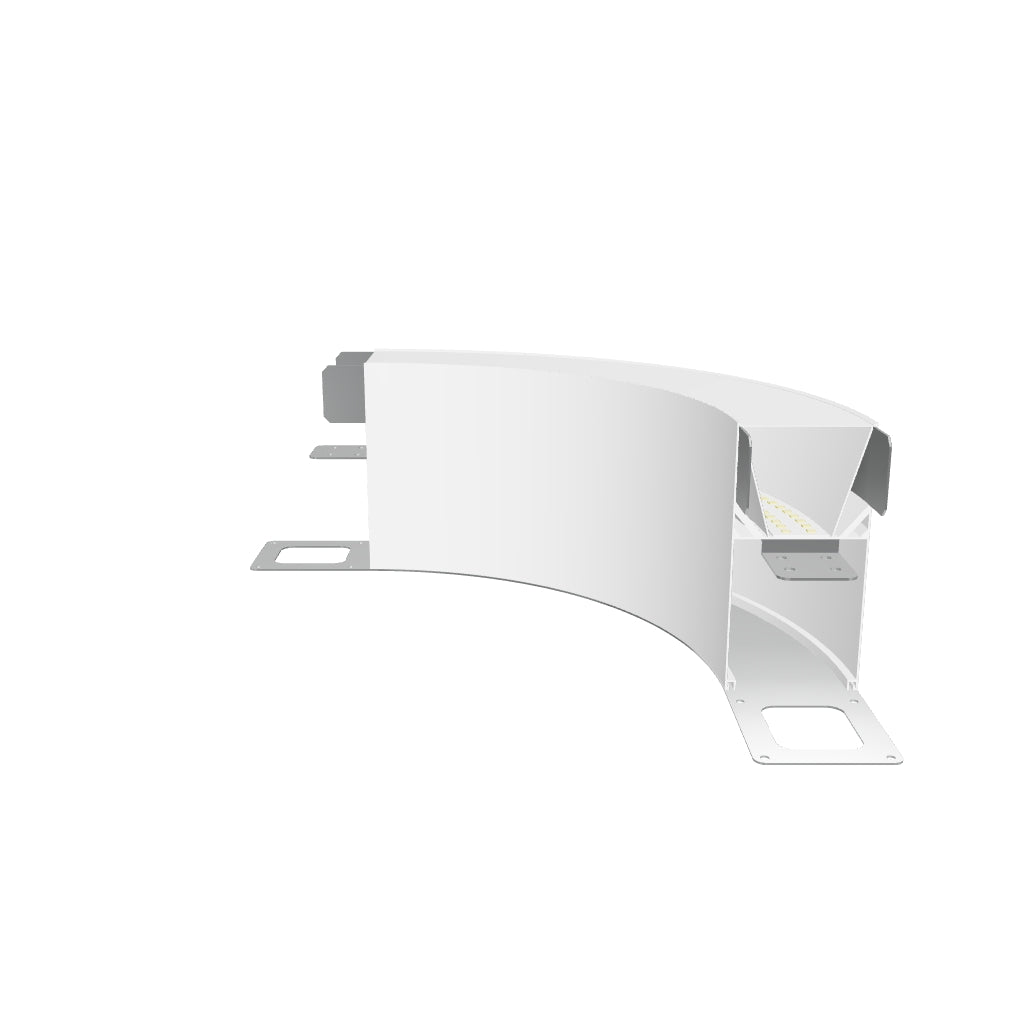

ARCHL-ARC/3CCT/3WO/WT
- Shape ARC
- Dimensions
- Length 10.82"
- Width 10.82"
- Height 2.95"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3500K/4000K/5000K
- Beam Angle 120Āŗ
- CRI 80
ELECTRICAL
- Input Volts 120-277V
- Rated Lifetime 50000
- Dimmable 0-10V
- Power Factor 0.9
- Operating Temp:
- Min -4Āŗ
- Max 113Āŗ
PACKAGING
- UPC Barcode 732388955565
- Master BarCode 10732388955562
- Master Carton Dimensions:
- Length 19.01"
- Width 12.21"
- Height 12.6"
- Case Size 5
