LR23902

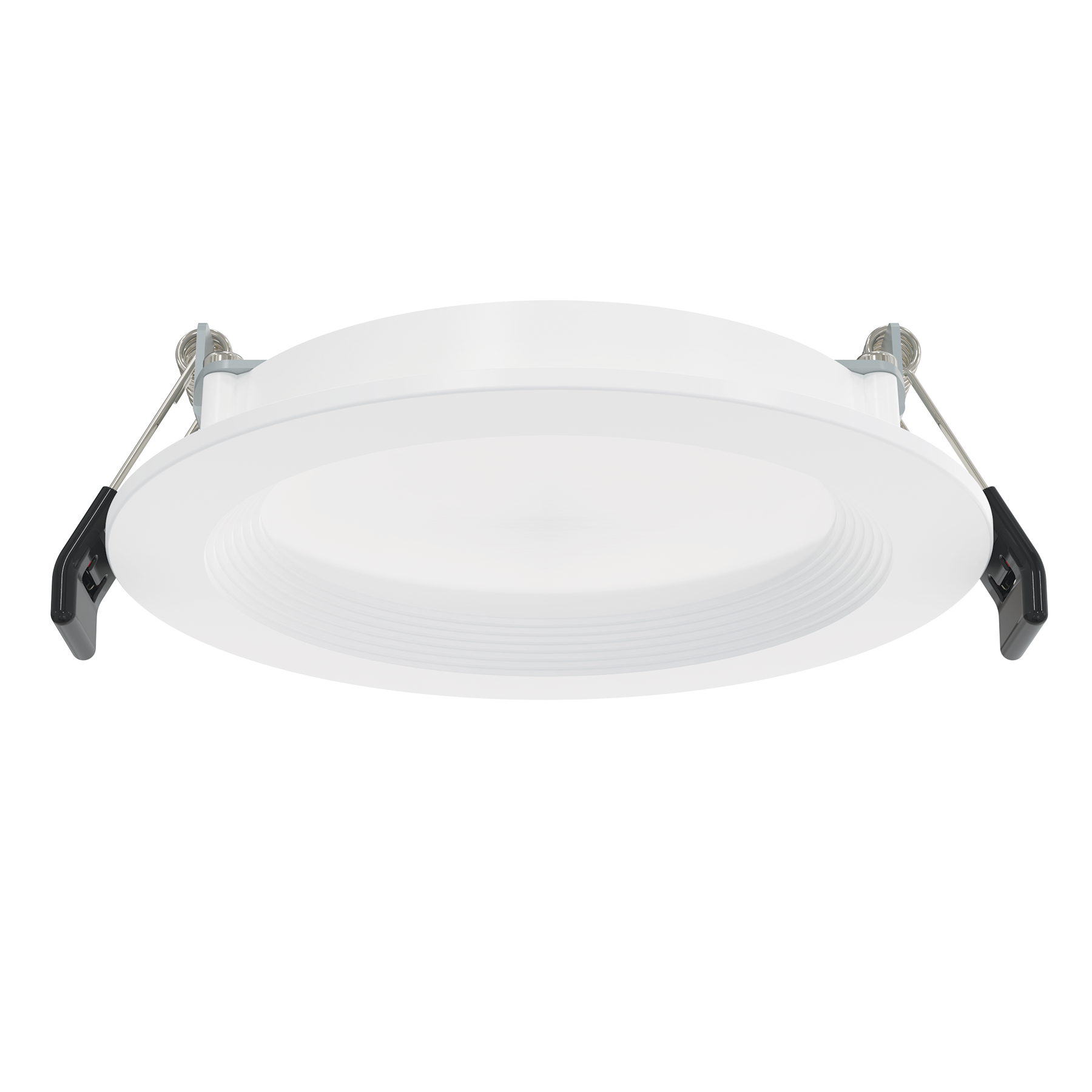

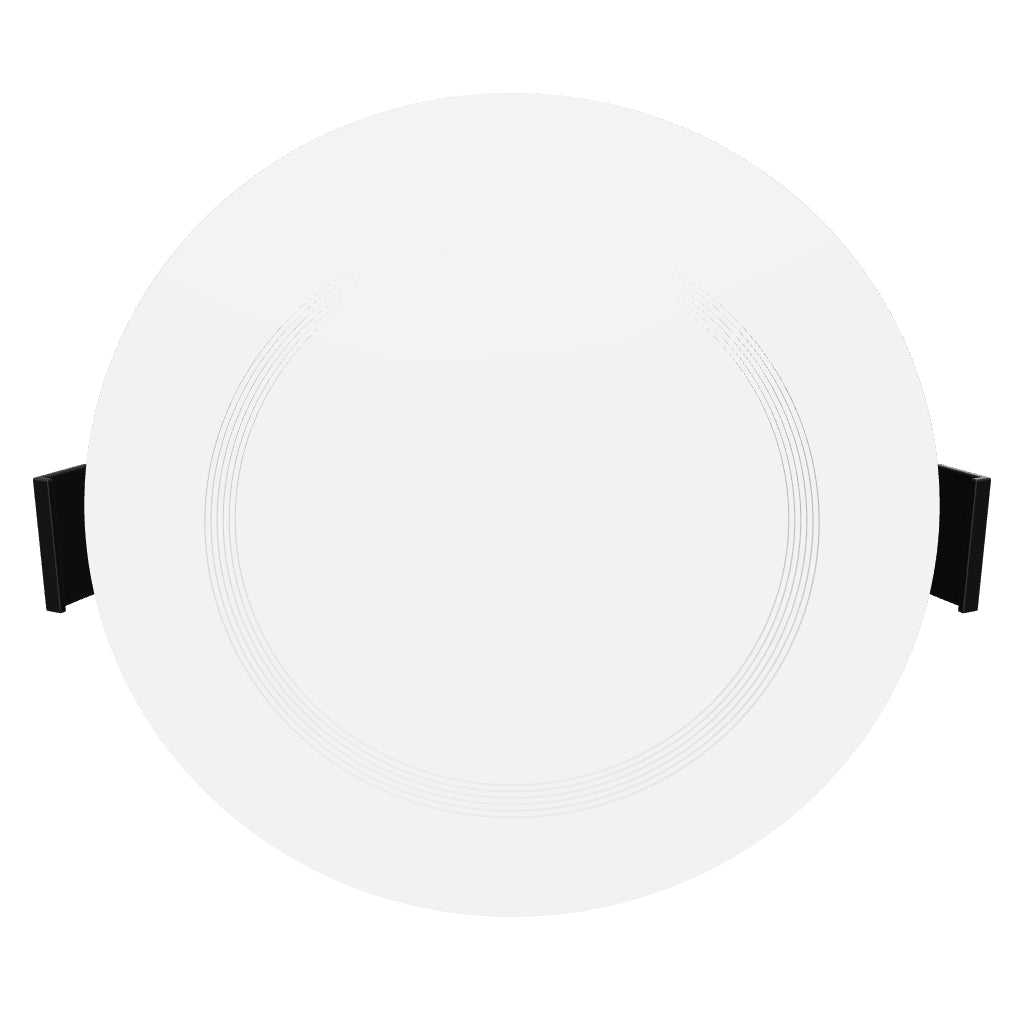

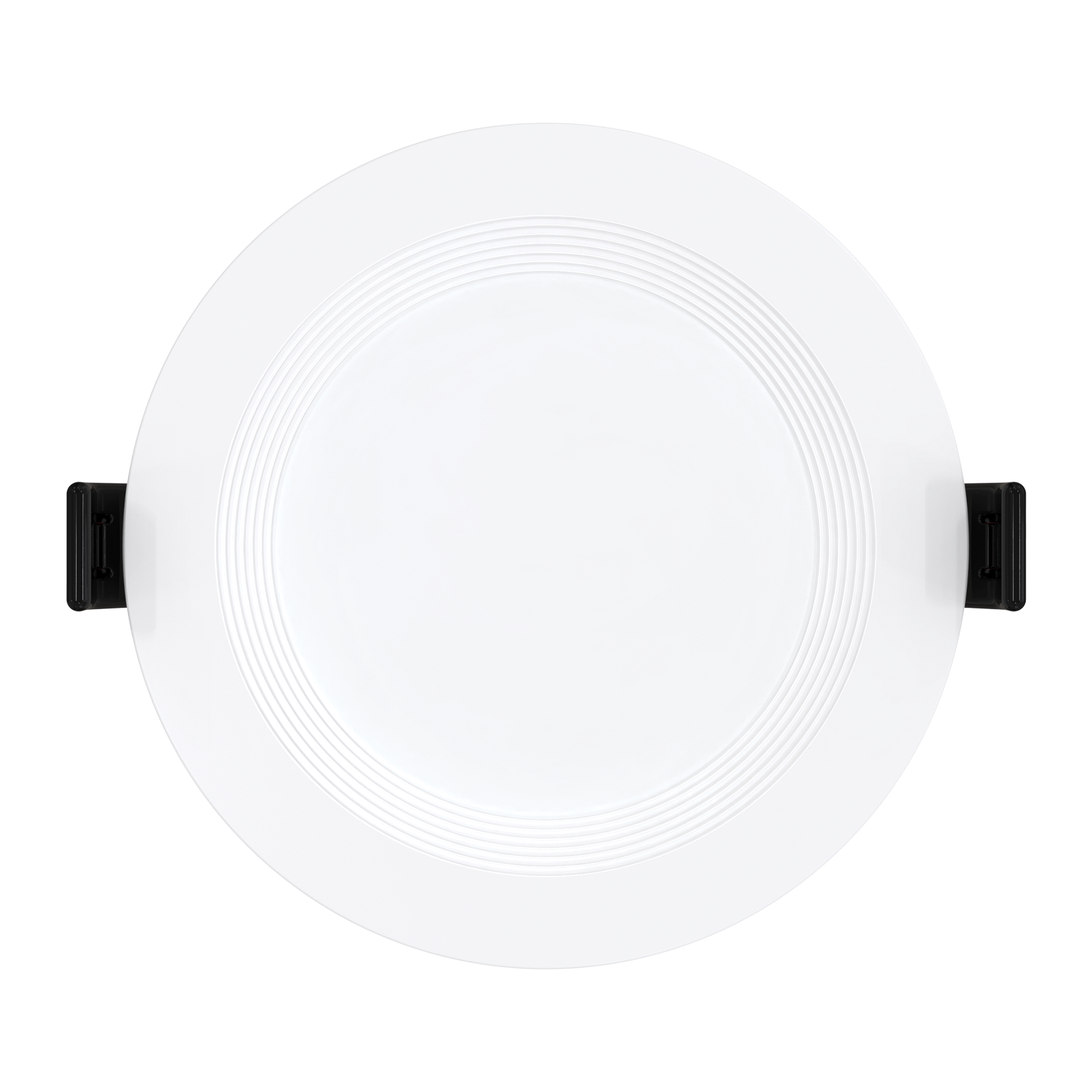

4" RECESSED MINI PANEL CANLESS SPOTLIGHT - 5CCT & 3 WATTAGE SELECTABLE - UNIVERSAL VOLTAGE
LED/MINI4/PANEL/3WO/5CCT/RD/UNV/B
SPECIFICATIONS
- Item numberLR23902
- Item description
LED/MINI4/PANEL/3WO/5CCT/RD/UNV/B
- Size4"
- Shape RECESSED MINI PANEL
- Dimensions
- Length Ø4.75"
- Height 1.92"
- Cutout Ø4.3"
- Finish WHITE

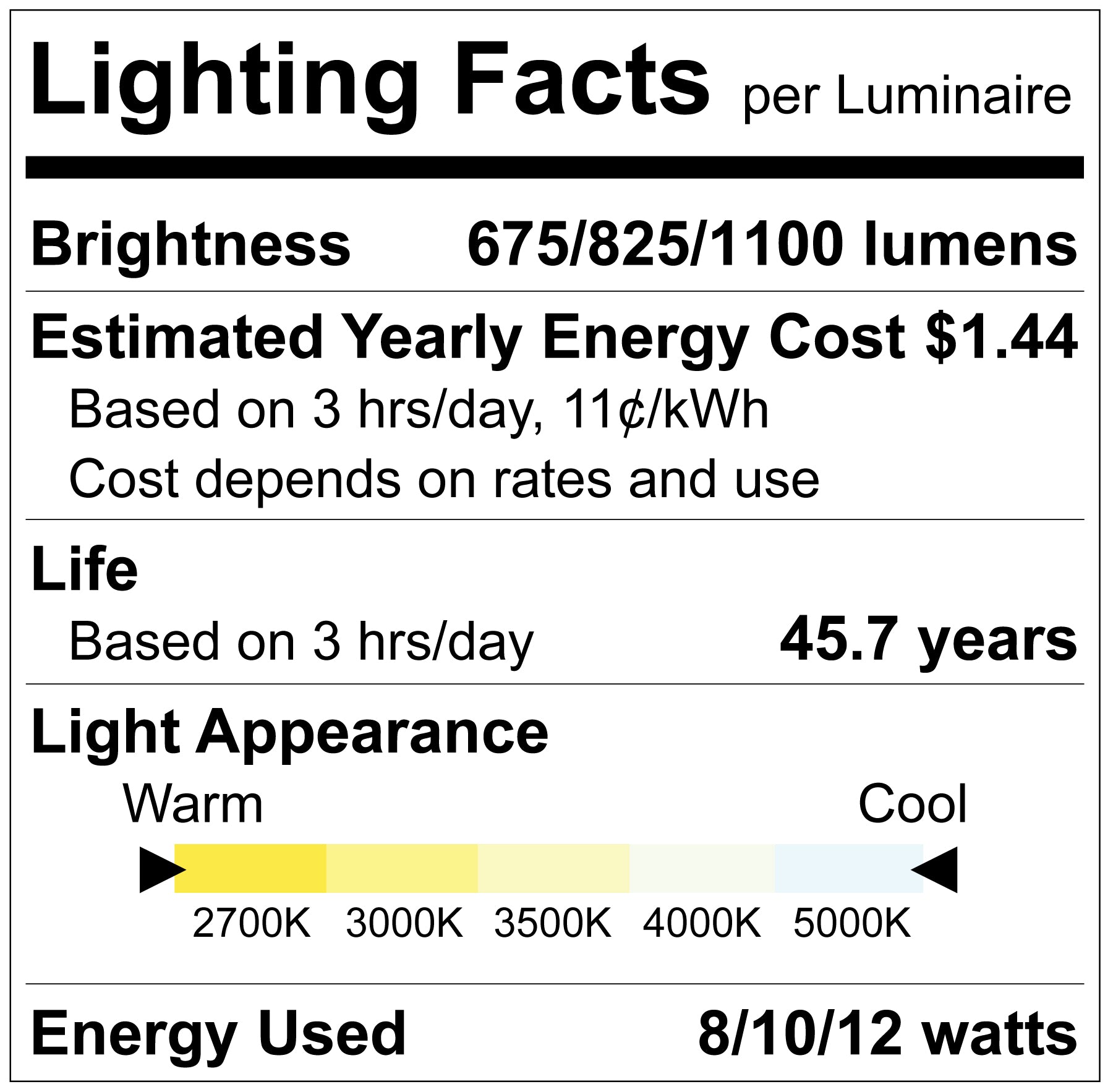

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 675/825/1100
- Beam Angle 110º
- CRI 90
ELECTRICAL
- Power (Wattage) 8/10/12
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.44
- Dimmable TRIAC
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 84/83/92
- Operating Temp:
- Min -4º
- Max 104º
PACKAGING
- UPC Barcode 732388954469
- Master BarCode 10732388954466
- Master Carton Dimensions:
- Length 12.36"
- Width 8.98"
- Height 5.35"
- Case Size 6
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
