LR44960

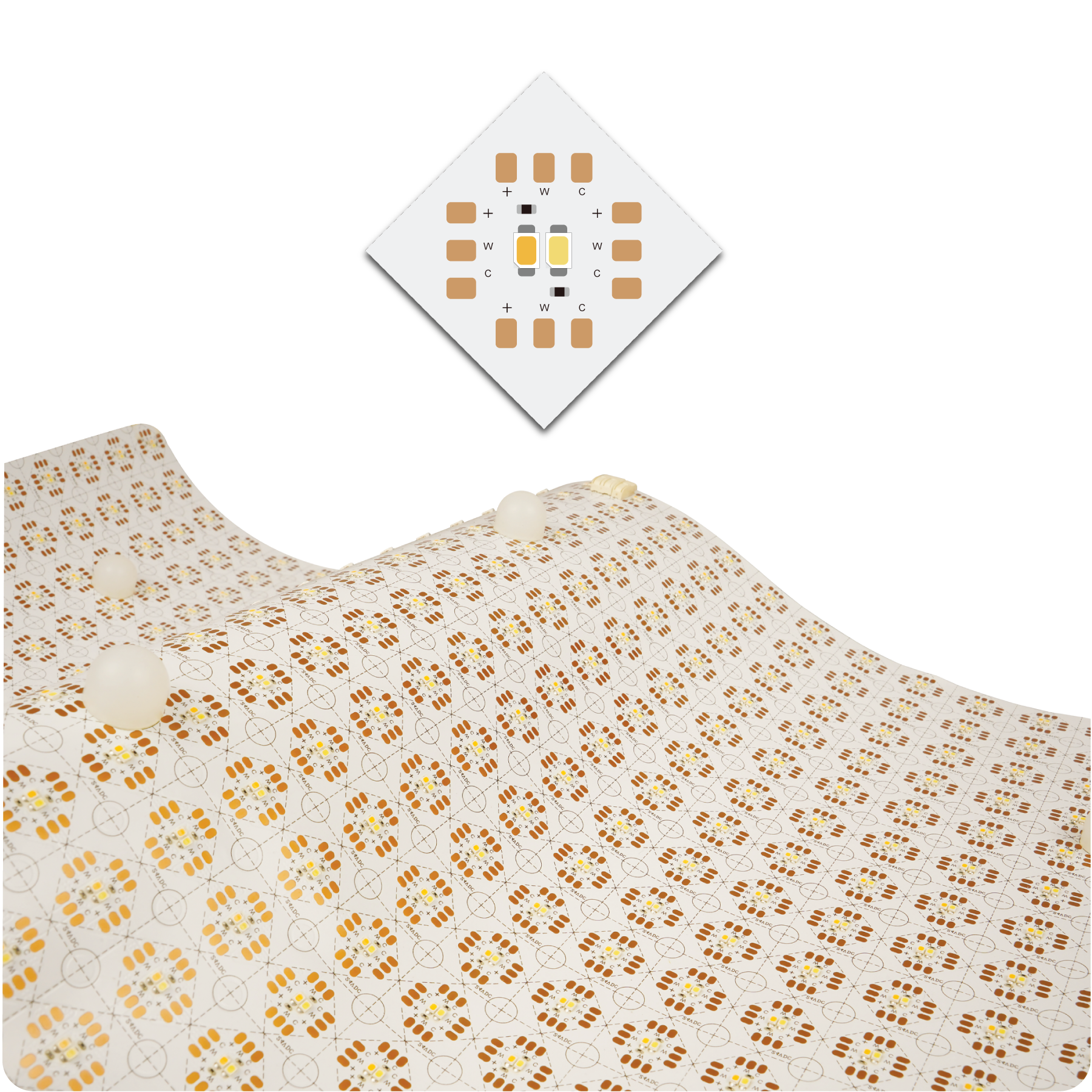

CCT TUNABLE WHITE 1X2 MATRIX LIGHT SHEET

LEDTL/2216/SH/24/CCT/IP54/24V/1X2

LR44960

CCT TUNABLE WHITE 1X2 MATRIX LIGHT SHEET

$0.00
/

LEDTL/2216/SH/24/CCT/IP54/24V/1X2

  • W/FT 12W/sq ft
  • LM/FT 1380 lm/sq ft
  • CCT CCT TUNABLE WHITE 2700-6500K
  • VOLT24V

SPECIFICATIONS

  • Item numberLR44960
  • Item description

    LEDTL/2216/SH/24/CCT/IP54/24V/1X2

  • Dimensions
    • Chip Group 2
    • Width 12" x 24"
    • Cut Size 0.75" x 0.75"

Wattage

  • W/FT 12W/sq ft
  • W/MT 129W/sq m

Lumen

  • LM/FT 1380 lm/sq ft
  • LM/M 115
  • LM/W 14854 lm/sq m

PHOTOMETRIC

  • Color (CCT) CCT TUNABLE WHITE 2700-6500K
  • Beam Angle 116Ā°
  • CRI 90

ELECTRICAL

  • Max Run 3.5 sheets on one 96W Driver
  • Volt 24V
  • Current MA 1A/Sheet

DENSITY

  • CHIP/FT 2 x 256 chips/sq ft
  • CHIP/M 2 x 2756 chips/sq m

FEATURES

MISC

  • Copper Weight 3oz
  • Adhesive 300LSE 3M
  • Cable Length 15cm
  • UPC 608870480726
  • Master BarCode 10608870480723
