LR32197

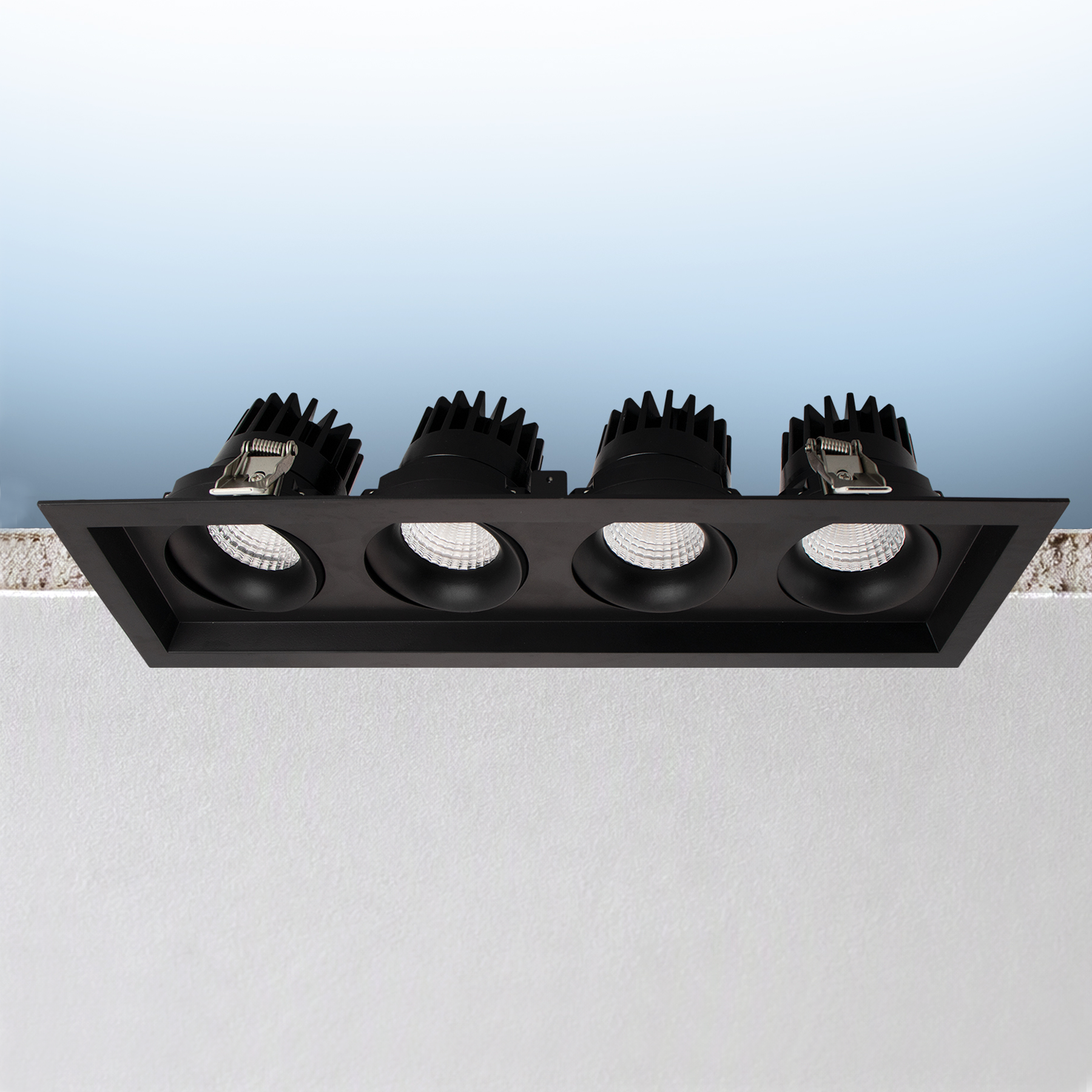

OMNI4 - FOUR HEAD REGRESSED MULTI-HEAD GIMBAL 5CCT SELECTABLE BLACK FINISH - DUAL DIMMING/UNIVERSAL VOLTAGE

LED/OMNI4/5CCT/HC/G/WFL/DD/UNV/BK

OMNI4 - FOUR HEAD REGRESSED MULTI-HEAD GIMBAL 5CCT SELECTABLE BLACK FINISH - DUAL DIMMING/UNIVERSAL VOLTAGE
OMNI4 - FOUR HEAD REGRESSED MULTI-HEAD GIMBAL 5CCT SELECTABLE BLACK FINISH - DUAL DIMMING/UNIVERSAL VOLTAGE

LR32197

OMNI4 - FOUR HEAD REGRESSED MULTI-HEAD GIMBAL 5CCT SELECTABLE BLACK FINISH - DUAL DIMMING/UNIVERSAL VOLTAGE

$0.00
/

LED/OMNI4/5CCT/HC/G/WFL/DD/UNV/BK

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 4000
  • WATT 60

SPECIFICATIONS

  • Item numberLR32197
  • Item description

    LED/OMNI4/5CCT/HC/G/WFL/DD/UNV/BK

  • Shape 4 HEAD GIMBAL
  • Dimensions
    • Length 15.74"
    • Width 5.03"
    • Depth 3.76"
  • Cutout 15.27" x 4.25"
  • Finish BLACK

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 4000
  • Beam Angle 60°
  • CRI 90

ELECTRICAL

  • Power (Wattage) 60
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $7.22
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Frequency 60Hz
  • Lumen Efficacy 66
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 732388920167
  • Master BarCode 10732388920164
  • Master Carton Dimensions:
    • Length 16.92"
    • Width 12.40"
    • Height 13.58"
  • Case Size 4

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
