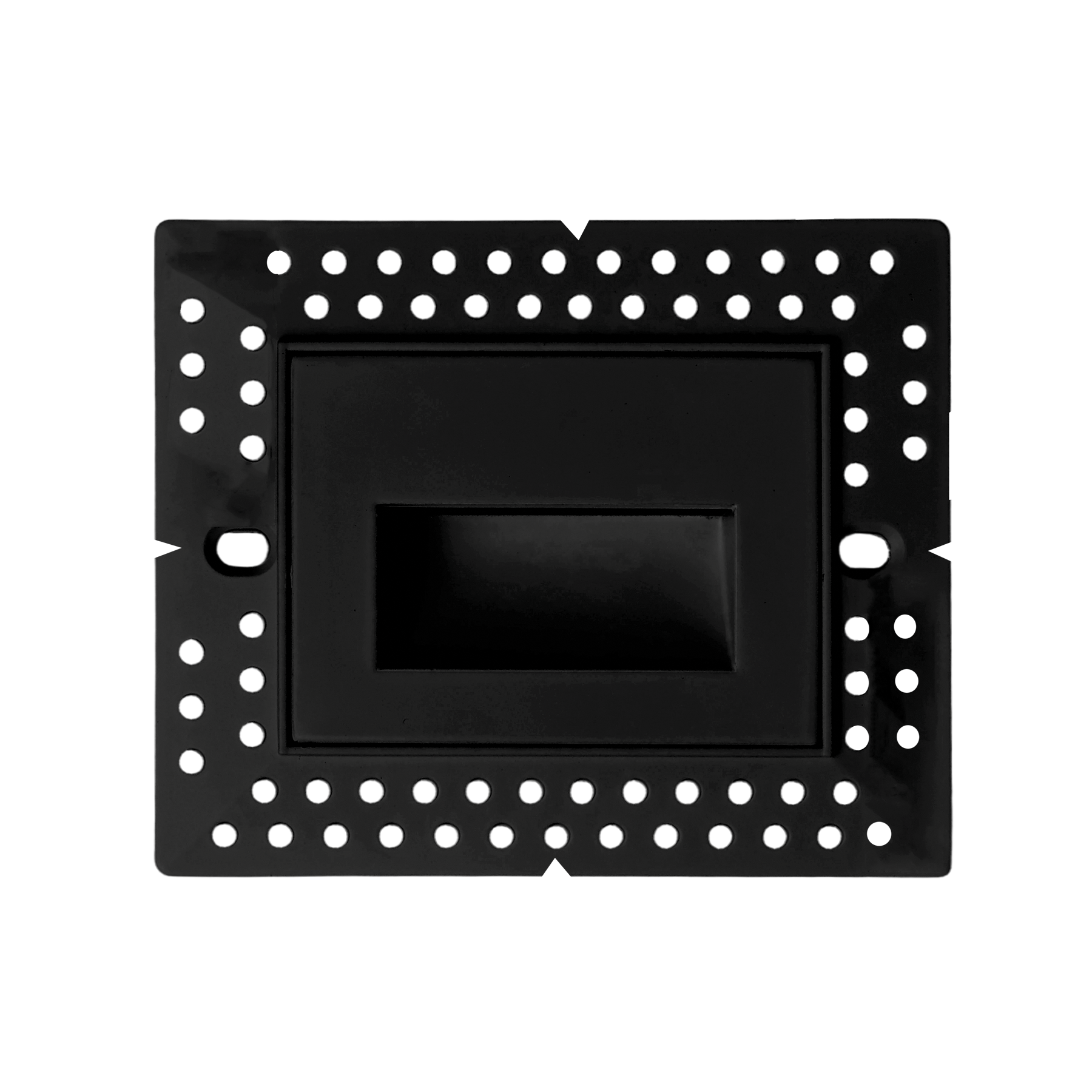

LR38031

3W TRIMLESS HORIZONTAL STEP-LIGHT - 5CCT SELECTABLE BLACK FINISH

LEDSTEP/TL/3W/5CCT/HOR/BK

LR38031

3W TRIMLESS HORIZONTAL STEP-LIGHT - 5CCT SELECTABLE BLACK FINISH

$0.00
/

LEDSTEP/TL/3W/5CCT/HOR/BK

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 90
  • WATT 3

SPECIFICATIONS

  • Item numberLR38031
  • Item description

    LEDSTEP/TL/3W/5CCT/HOR/BK

  • Shape STEP LIGHT
  • Dimensions
    • Length 4.20"
    • Width 3.46"
    • Depth 1.92"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 90
  • Beam Angle 110°
  • CRI 90

ELECTRICAL

  • Power (Wattage) 3
  • Input Volts 120V
  • Rated Lifetime 50000
  • Yearly Cost $0.36
  • Dimmable TRIAC
  • Power Factor 0.9
  • Frequency 60Hz
  • Lumen Efficacy 30
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 732388966264
  • Master BarCode 10732388966261
  • Master Carton Dimensions:
    • Length 12"
    • Width 9.25"
    • Height 11.22"
  • Case Size 24

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
