SPECIFICATIONS
- Item numberLR23269
- Item description

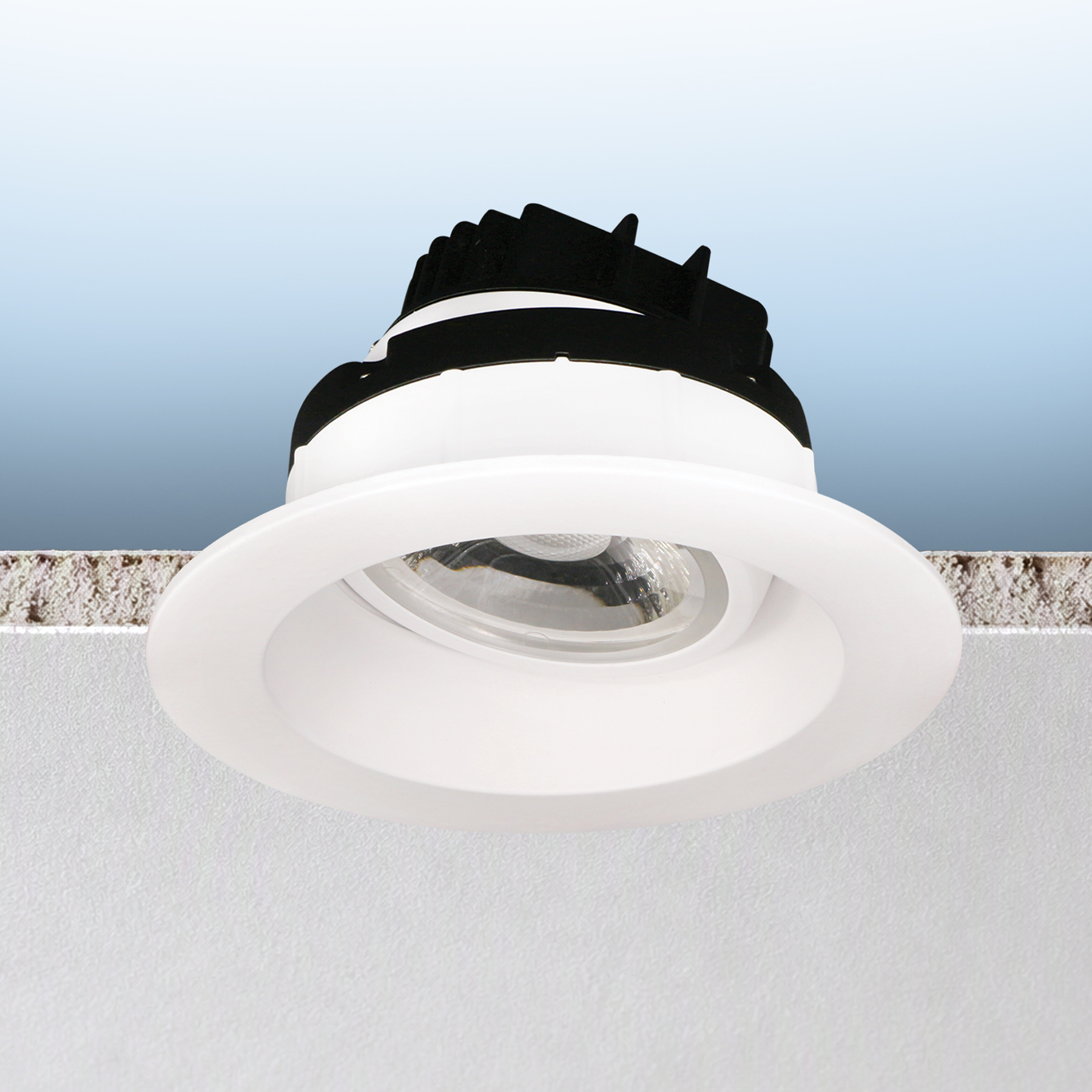

LED12W/RDL4/GB/5CCT/FL
- Size4"
- Shape 4" DEEP GIMBAL
- Dimensions
- Width Ć 5.70"
- Height 2.24"
- Cutout 4.87"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1000
- Beam Angle 40Ā°
- CRI 80
ELECTRICAL
- Power (Wattage) 12
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $1.45
- Dimmable TRIAC
- Power Factor 0.98
- Input Current 120mA
- Frequency 60Hz
- Watt Replacement 50
- Lumen Efficacy 83
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 644216095513
- Master BarCode 10644216095510
- Master Carton Dimensions:
- Length 20.07"
- Width 16.33"
- Height 15.74"
- Weight 17.10kg
- Case Size 18
FEATURES
