SPECIFICATIONS
- Item numberAS50020
- Item description
LED7DLMD/930/36D
- Size2.5"
- Shape ROUND MODULE

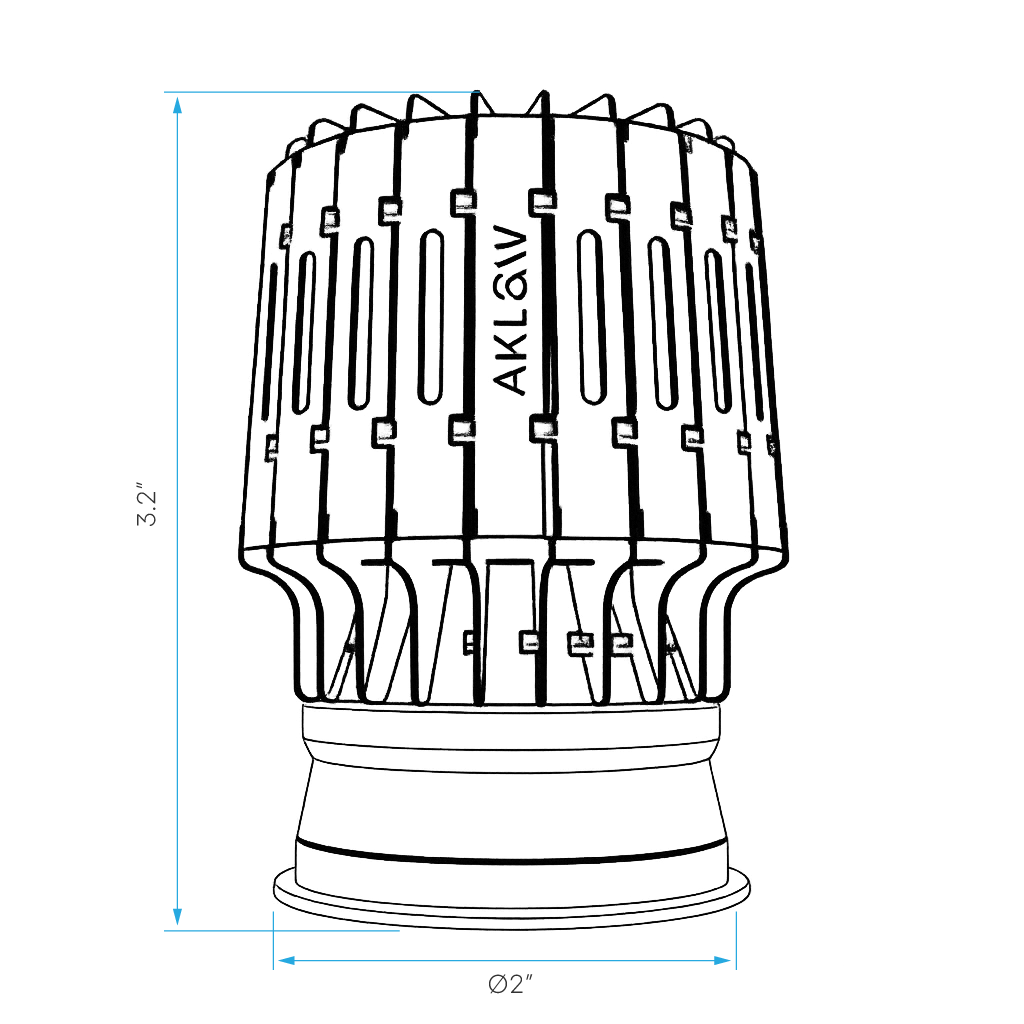

- Dimensions
- Width 2.5
- Height 3.2"
- Finish ALUMINUM WITH NICKEL PLATING
- MOL 3.2"
PHOTOMETRIC
- Color (Temp) COOL WHITE
- Color (CCT) 3000K
- Lumen 700
- Beam Angle 36Āŗ
- CRI 92
ELECTRICAL
- Power (Wattage) 7
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $0.84
- Dimmable TRIAC 5-100%
- Power Factor 0.9
- Input Current 200mA
- Frequency 60Hz
- Lumen Efficacy 82
- Operating Temp:
- Min -4Āŗ
- Max 104Āŗ
