SPECIFICATIONS
- Item numberLR22630
- Item description
LEDRMP3/HO/5CCT/RD/WT/D
- Size3"

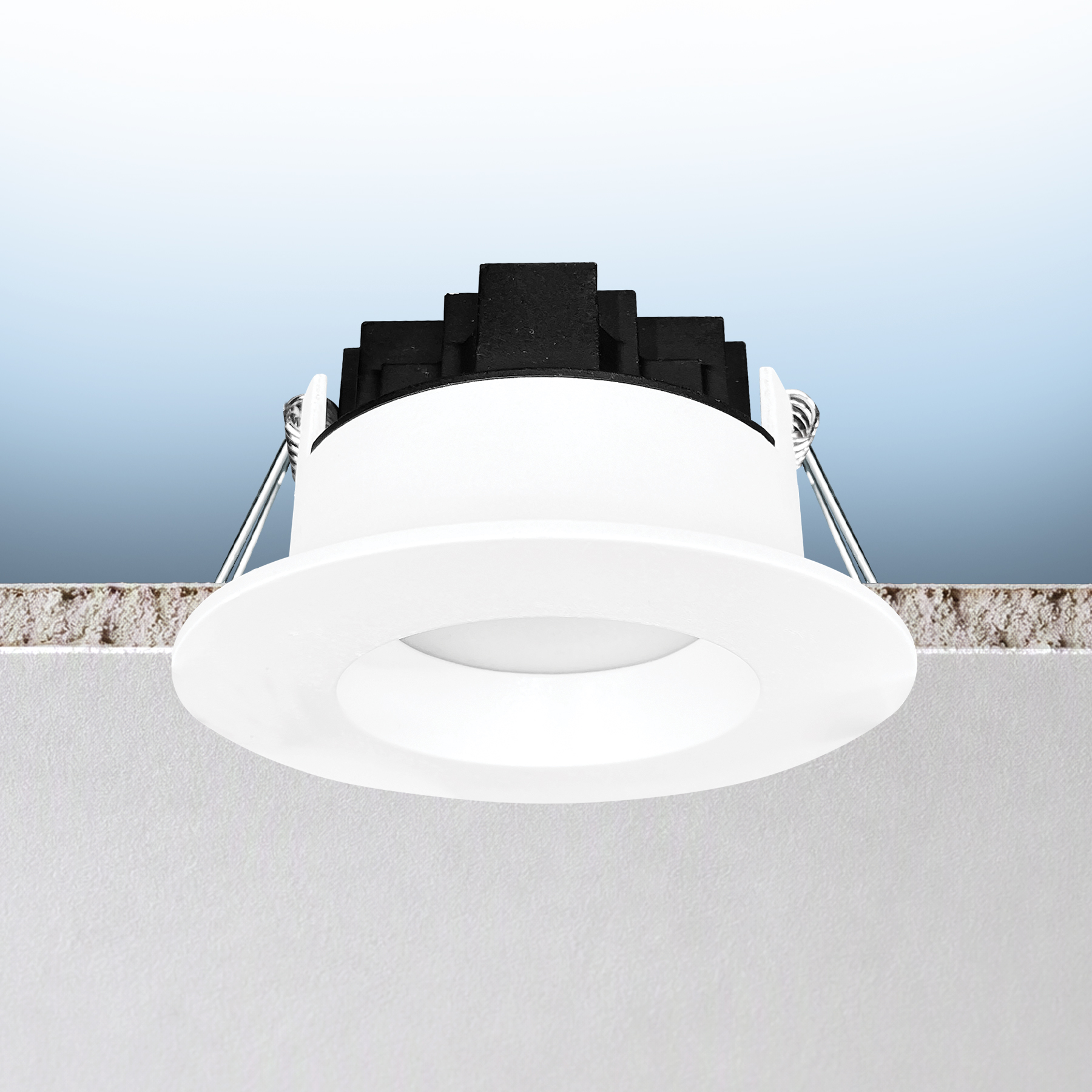

- Shape 3" REGRESSED MINI PANEL
- Dimensions
- Width Ć3.77"
- Height 2.04"
- Cutout Ć3.22"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 800
- Beam Angle 100Ā°
- CRI 80
ELECTRICAL
- Power (Wattage) 10
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $1.20
- Dimmable TRIAC
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 80
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 793888395442
- Master BarCode 10793888395442
- Master Carton Dimensions:
- Length 14.40"
- Width 13.18"
- Height 8.77"
- Case Size 12
