LR22637

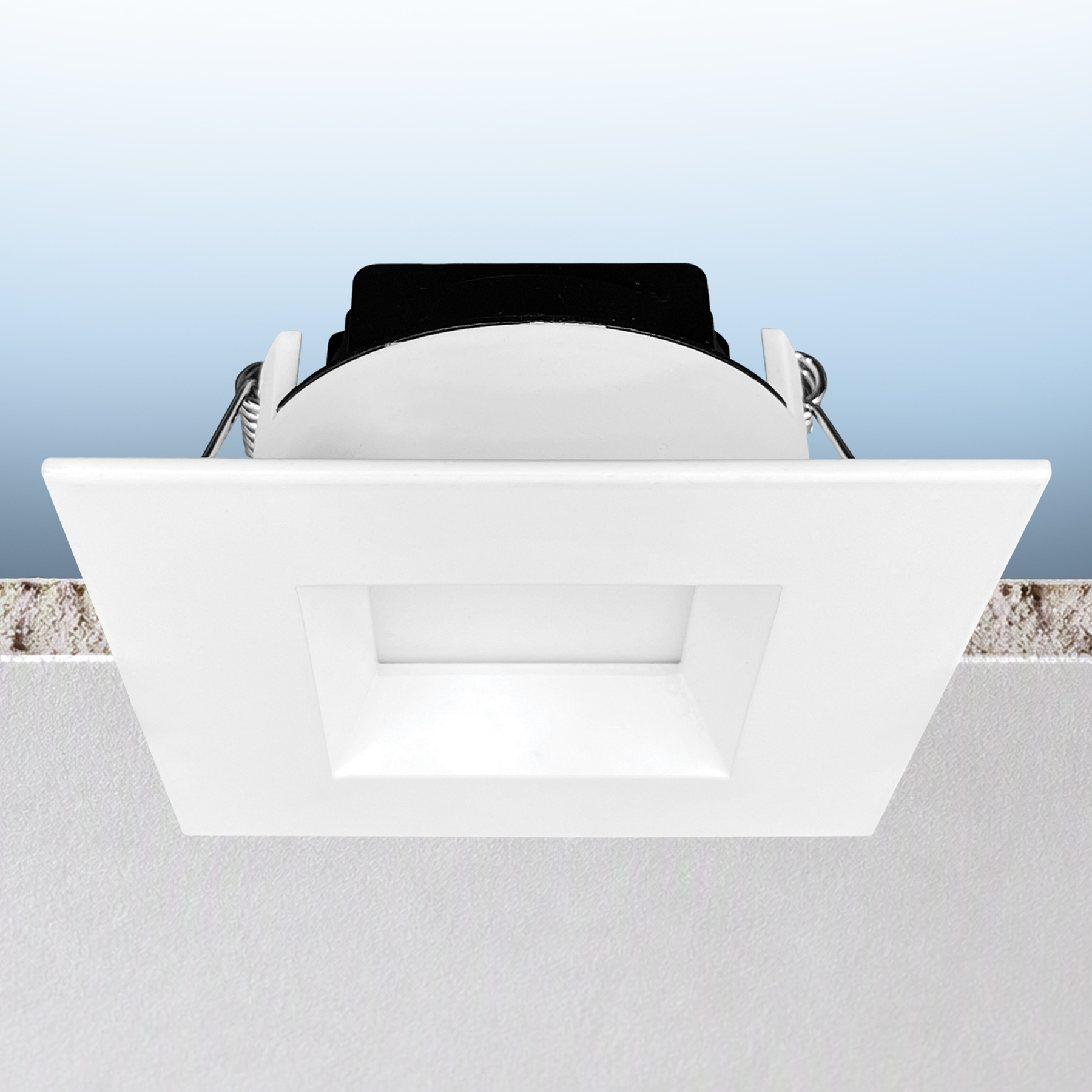

2" REGRESSED MINI PANEL 5CCT - HIGH OUTPUT

LEDRMP2/HO/5CCT/SQ/WT/D

LR22637

2" REGRESSED MINI PANEL 5CCT - HIGH OUTPUT

$0.00
/

LEDRMP2/HO/5CCT/SQ/WT/D

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 660
  • WATT 8
  • Size2"

SPECIFICATIONS

  • Item numberLR22637
  • Item description

    LEDRMP2/HO/5CCT/SQ/WT/D

  • Size2"
  • Shape 2" REGRESSED MINI PANEL
  • Dimensions
    • Length 3.1"
    • Width 3.1"
    • Height 1.7"
  • Cutout Ø2.12"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 660
  • Beam Angle 100°
  • CRI 80

ELECTRICAL

  • Power (Wattage) 8
  • Input Volts 120V
  • Rated Lifetime 50000
  • Yearly Cost $0.96
  • Dimmable TRIAC
  • Power Factor 0.9
  • Frequency 60Hz
  • Lumen Efficacy 82
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 793888454040
  • Master BarCode 10793888454047
  • Master Carton Dimensions:
    • Length 21.26"
    • Width 9.25"
    • Height 17.32"
  • Case Size 20

FEATURES

    80 LIFE HR 50000
