SPECIFICATIONS
- Item numberLR22670
- Item description
LEDRMP2/2WO/5CCT/RD/WT/D
- Size2"
- Shape Regressed Mini Panel
- Dimensions
- Width Ø3.09"
- Depth 1.69"
- Cutout Ø2.36"
- Finish WHITE

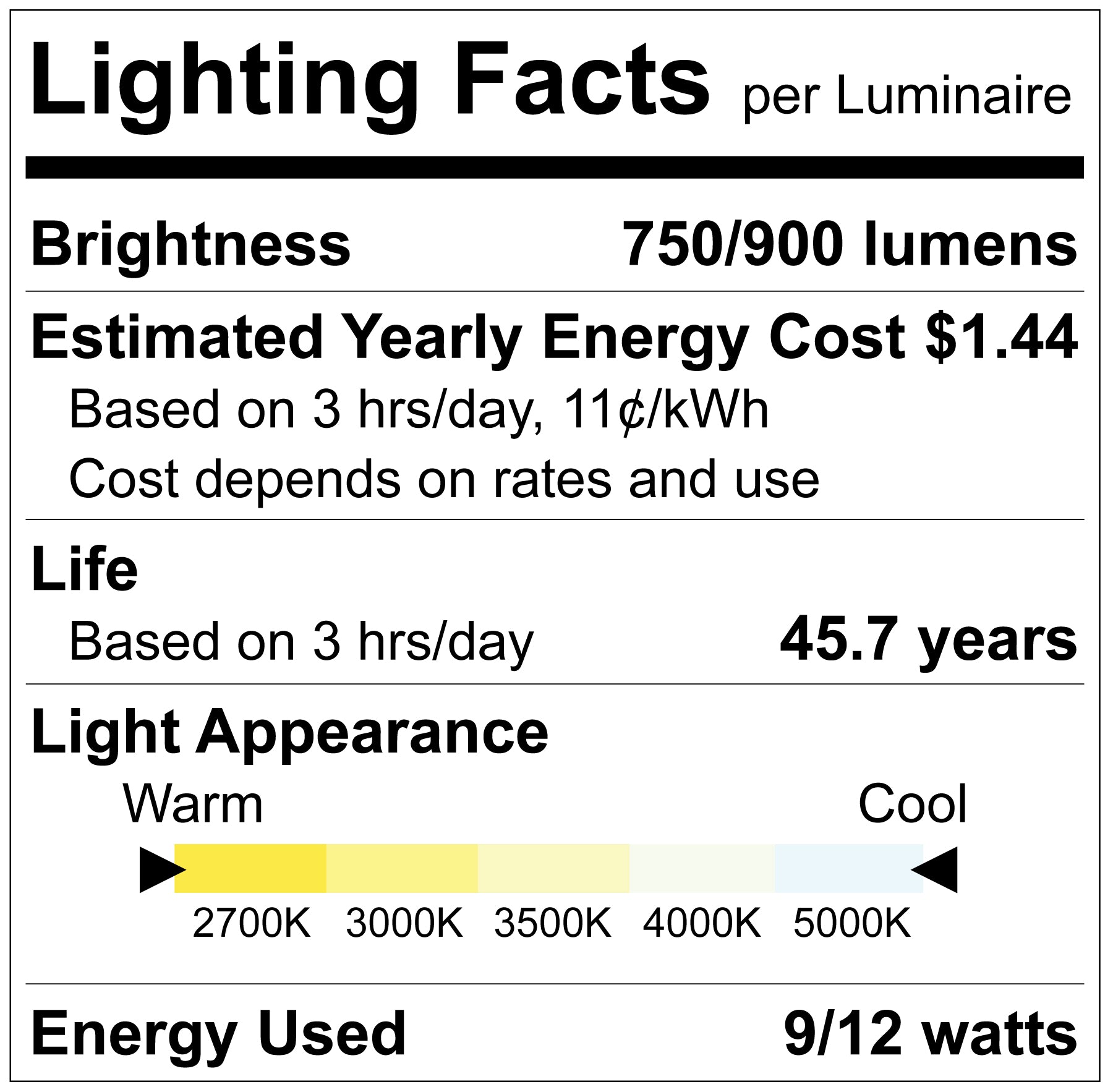

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 750/900
- Beam Angle 90°
- CRI 80
ELECTRICAL
- Power (Wattage) 9/12
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $1.44
- Dimmable TRIAC
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 77
- Operating Temp:
- Min 5º
- Max 104°
PACKAGING
- UPC Barcode 732388963065
- Master BarCode 10732388963062
- Master Carton Dimensions:
- Length 30.31"
- Width 10.03"
- Height 14.56"
- Case Size 20
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
LIFERITE WARRANTY
When you buy from us,
you’re covered by us.
LifeRite is our own, first-party warranty,
available in 2-, 3-, and 5—year terms,
depending on the exact product.
