SPECIFICATIONS
- Item numberLR22671
- Item description
LEDRMP3/2WO/5CCT/RD/WT/UNV/DD
- Size3"
- Shape Regressed Mini Panel
- Dimensions
- Width Ć3.77"
- Depth 2.15"
- Cutout Ć3.22"
- Finish WHITE

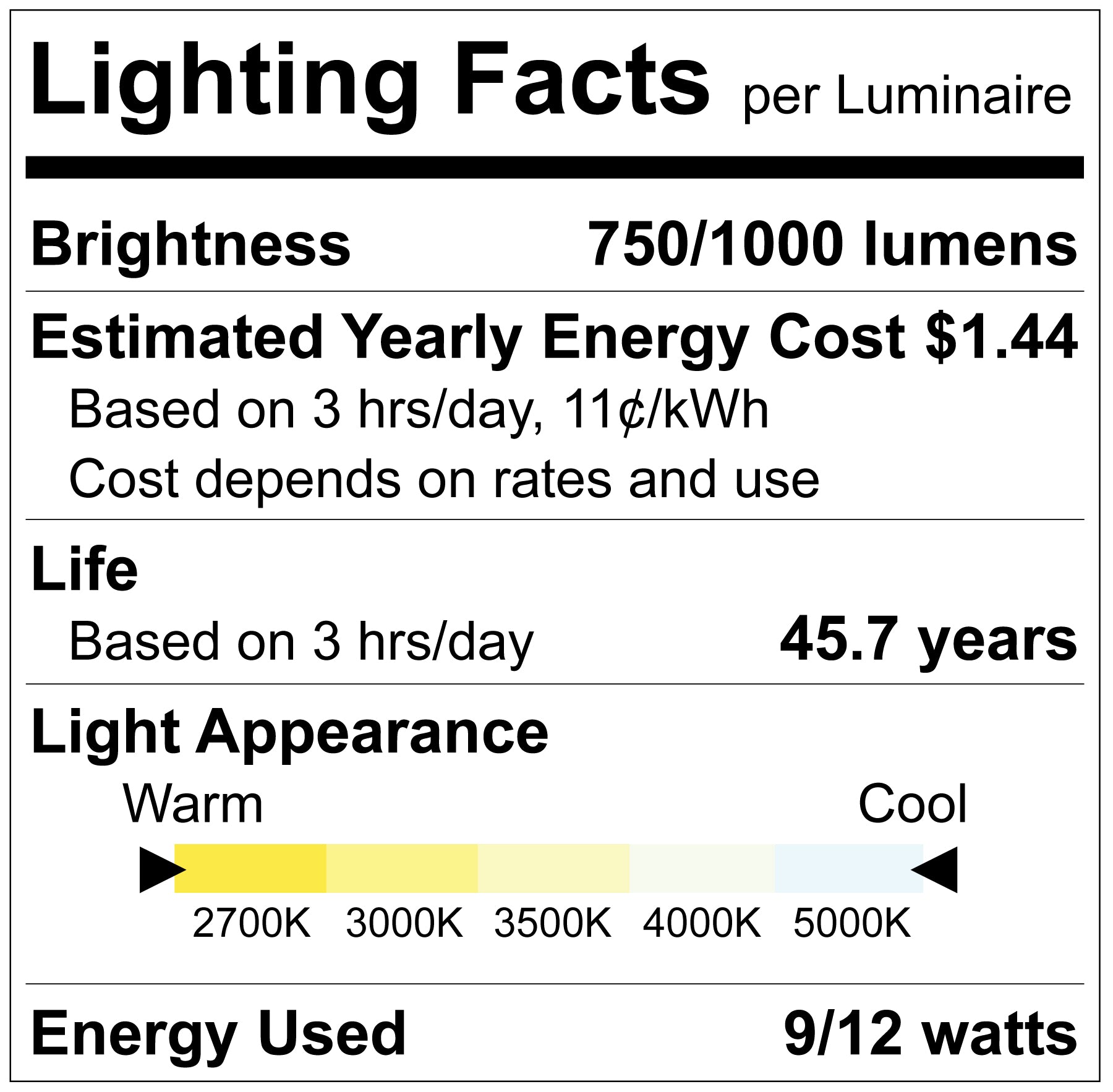

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 750/1000
- Beam Angle 90Ā°
- CRI 80
ELECTRICAL
- Power (Wattage) 9/12
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.44
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 83
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 732388922567
- Master BarCode 10732388922564
- Master Carton Dimensions:
- Length 18.50"
- Width 14.96"
- Height 9.44"
- Case Size 12
