SPECIFICATIONS
- Item numberLR22676
- Item description
LEDRMP6/3WO/5CCT/RD/WT/UNV/DD
- Size6"

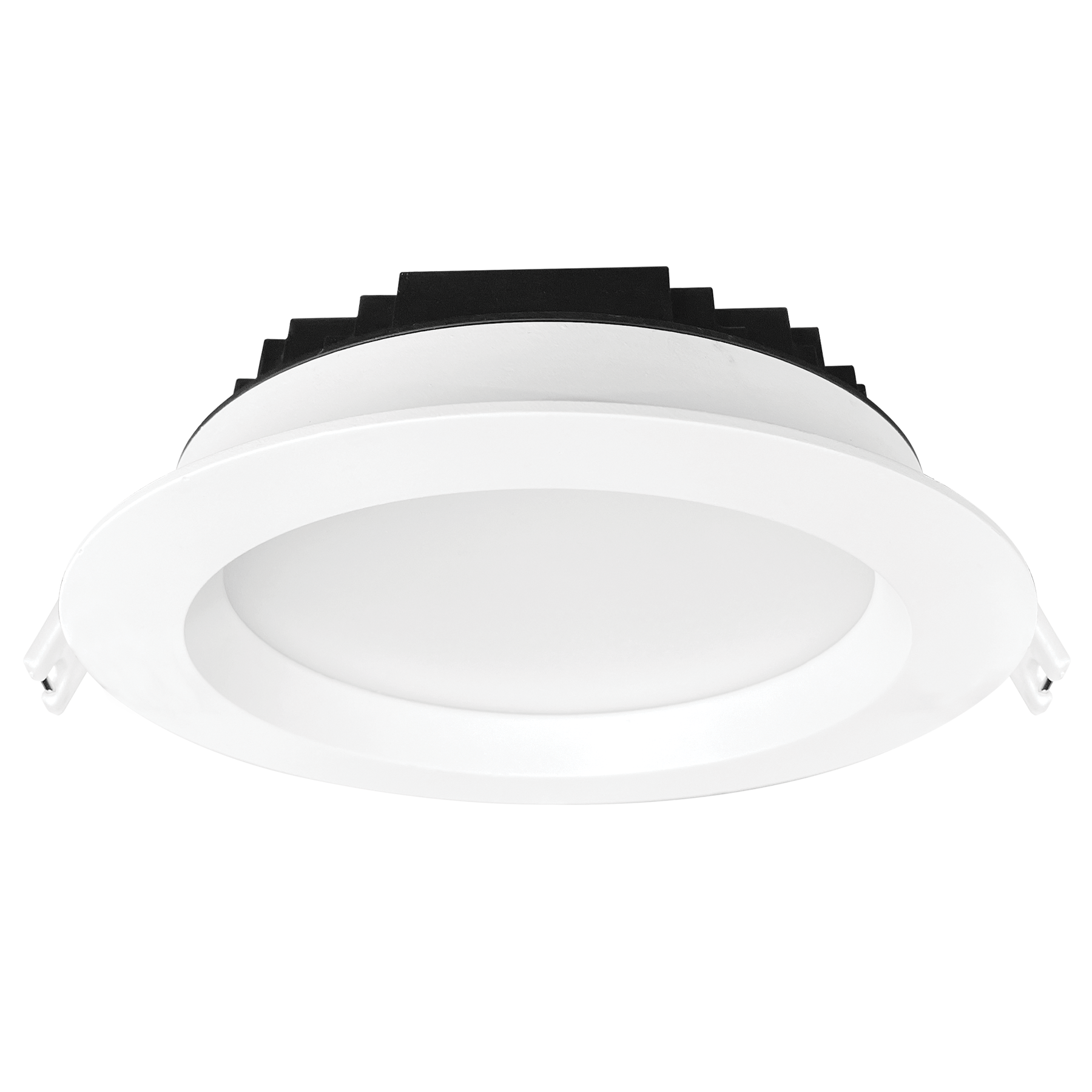

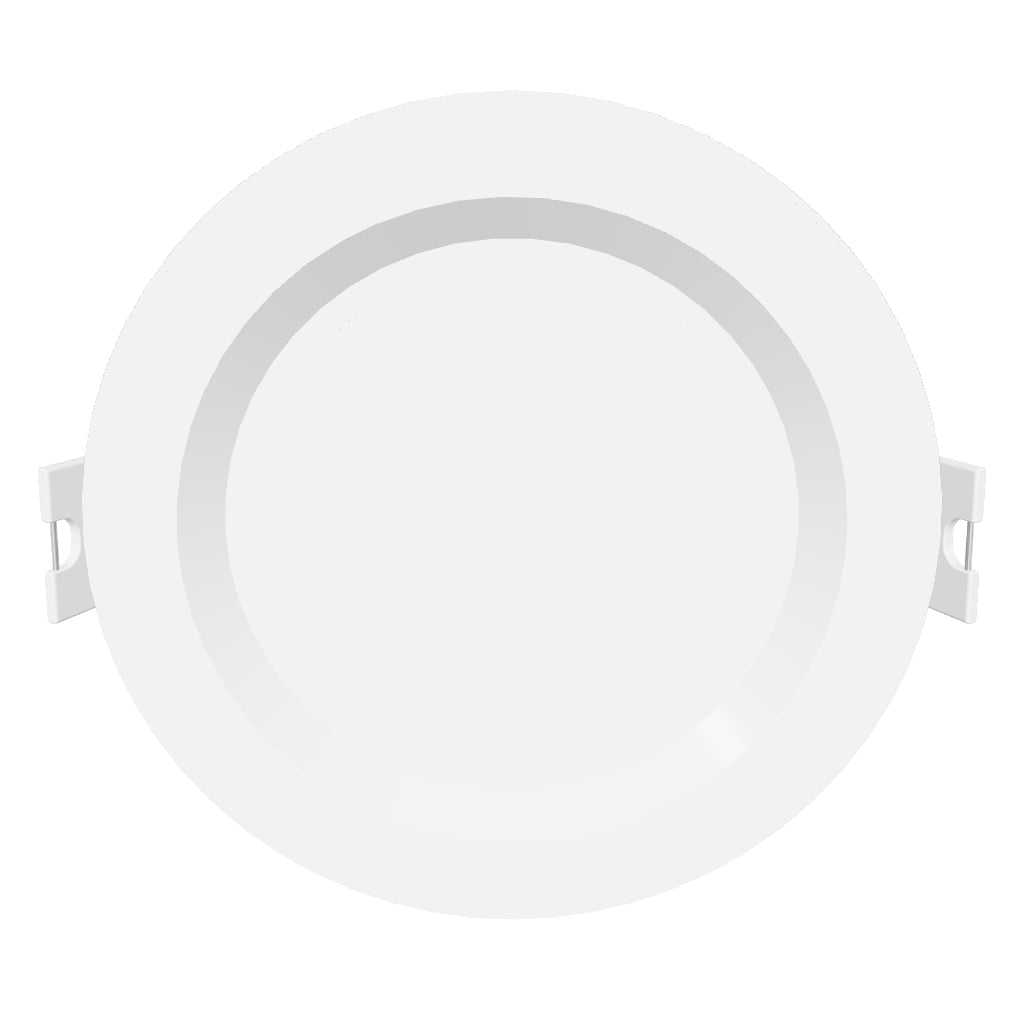

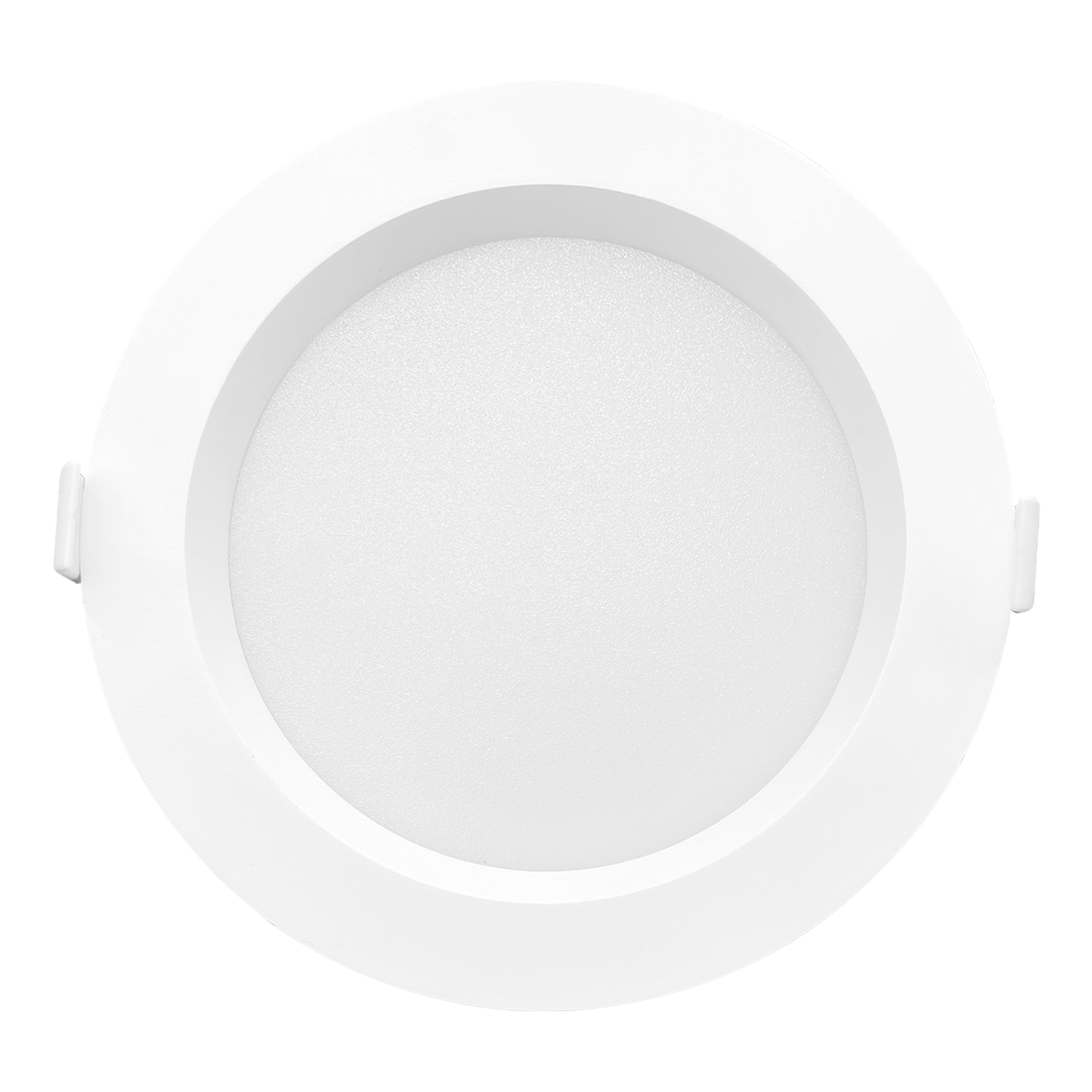

- Shape Regressed Mini Panel
- Dimensions
- Width Ć6.93"
- Depth 2.16"
- Cutout Ć6.30"
- Finish WHITE

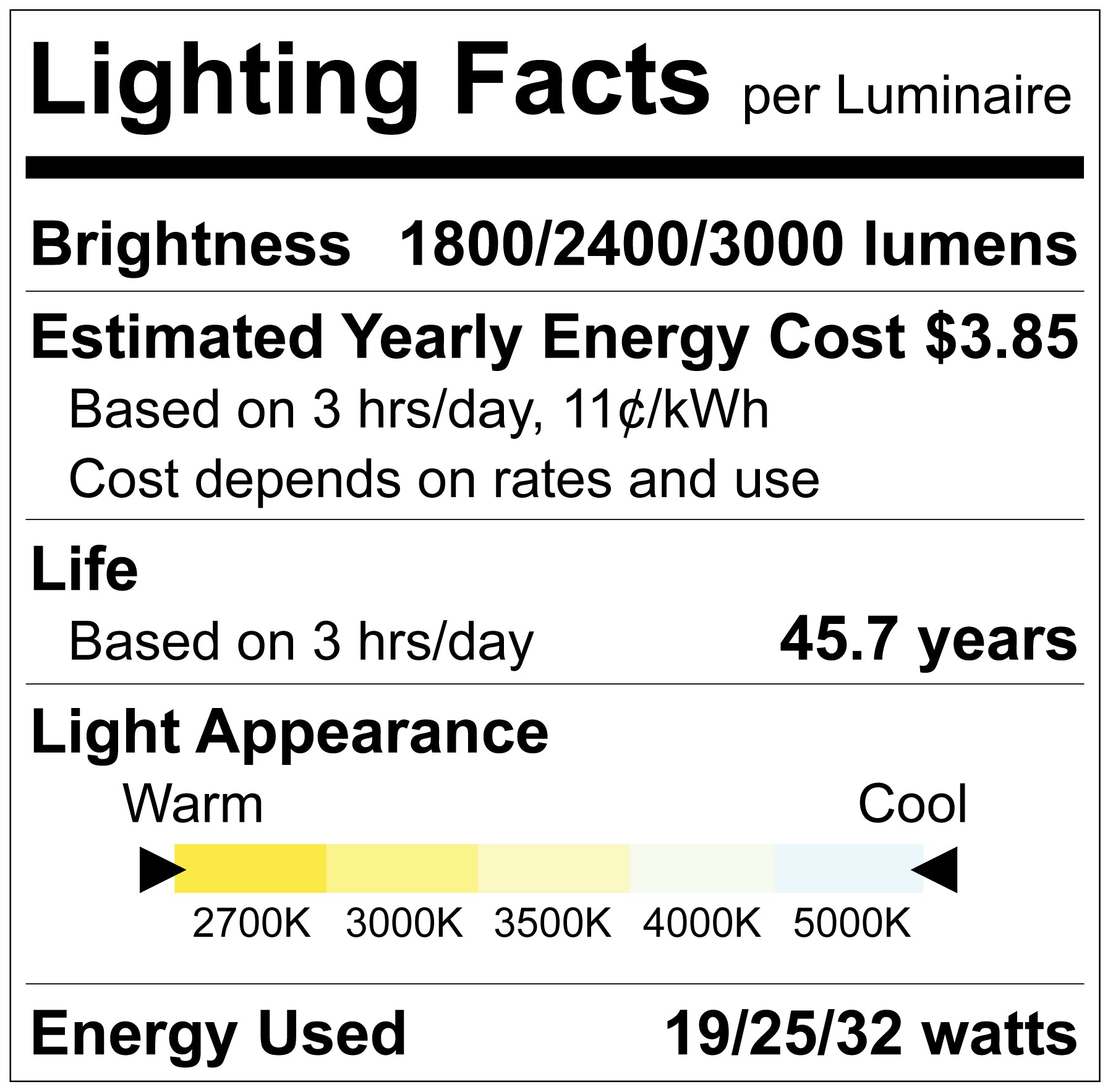

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1800/2400/3000
- Beam Angle 100Ā°
- CRI 80
ELECTRICAL
- Power (Wattage) 19/25/32
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $3.85
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 93
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 732388922864
- Master BarCode 10732388922861
- Master Carton Dimensions:
- Length 24.40"
- Width 20.47"
- Height 9.44"
- Case Size 12
