SPECIFICATIONS
- Item numberLR22678
- Item description
LEDRMP2/2WO/5CCT/SQ/WT/D
- Size2"
- Shape Regressed Mini Panel
- Dimensions
- Length 3.09"
- Width 3.09"
- Depth 1.7"
- Cutout Ø2.36"
- Finish WHITE

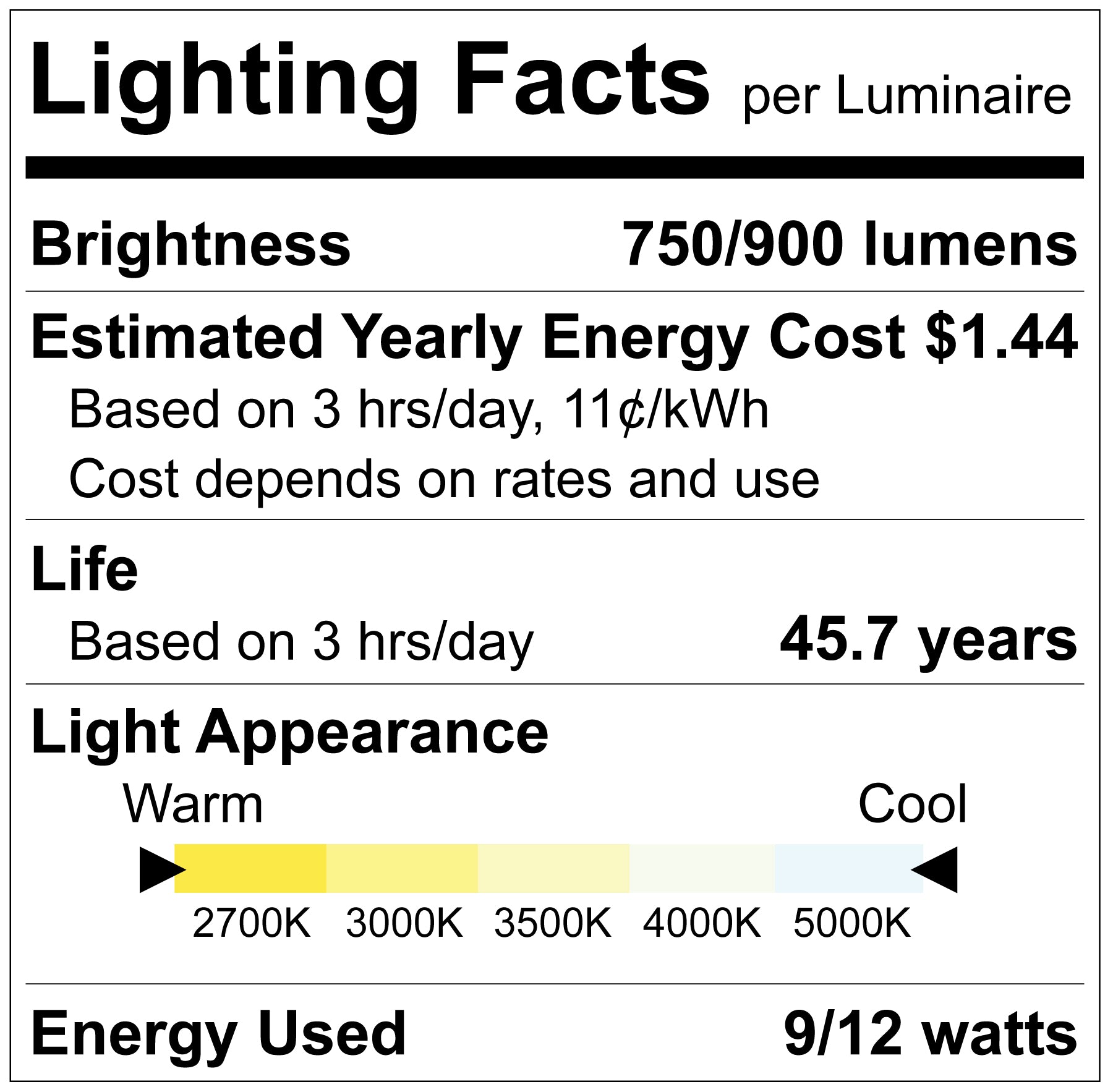

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 750/900
- Beam Angle 90°
- CRI 80
ELECTRICAL
- Power (Wattage) 9/12
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $1.44
- Dimmable TRIAC
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 77
- Operating Temp:
- Min 5º
- Max 104°
PACKAGING
- UPC Barcode 732388963164
- Master BarCode 10732388963161
- Master Carton Dimensions:
- Length 30.31"
- Width 10.03"
- Height 14.56"
- Case Size 20
