SPECIFICATIONS
- Item numberLR22680
- Item description
LEDRMP4/3WO/5CCT/SQ/WT/UNV/DD
- Size4"
- Shape Regressed Mini Panel

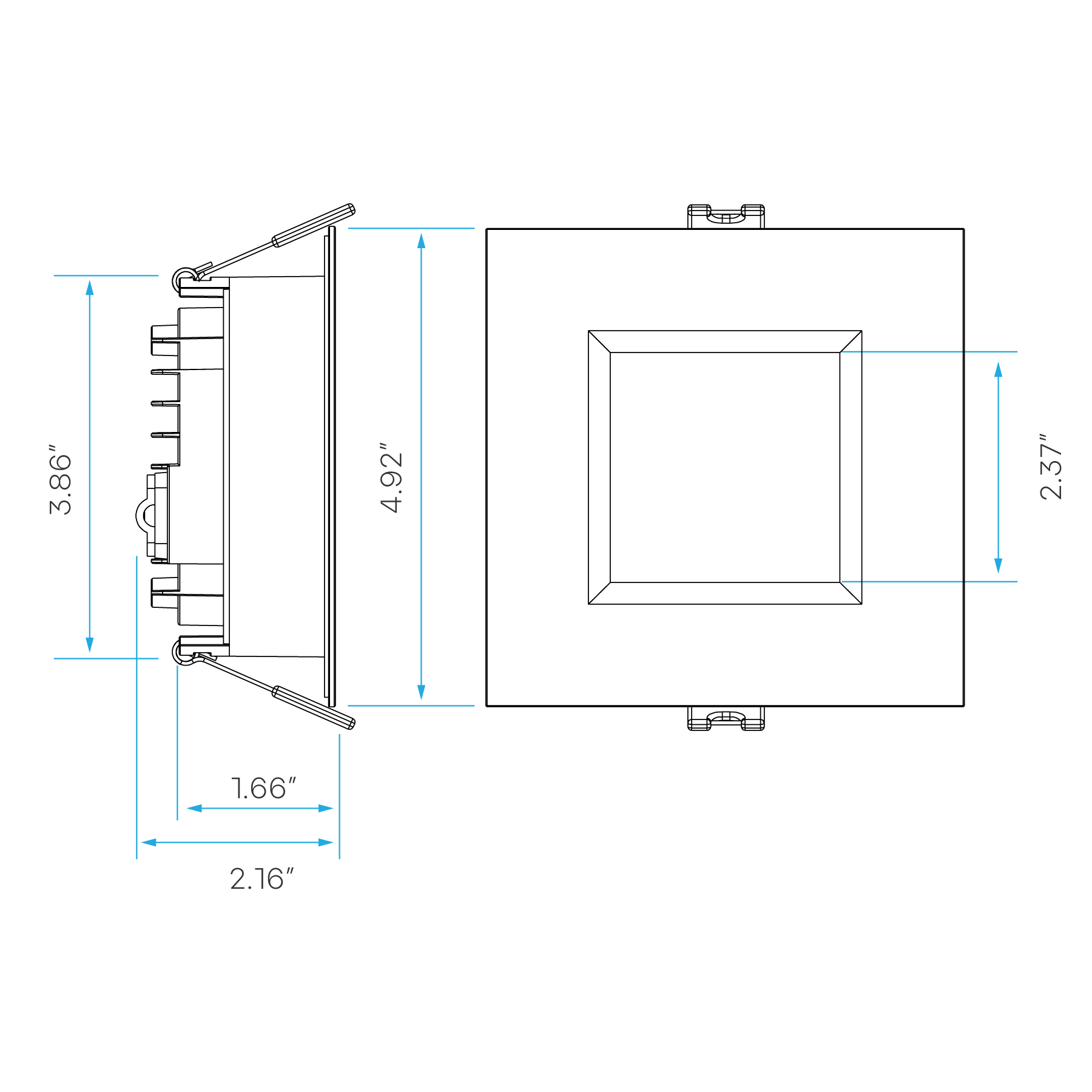

- Dimensions
- Length 4.92"
- Width 4.92"
- Depth 2.16"
- Cutout Ø4.33"
- Finish WHITE

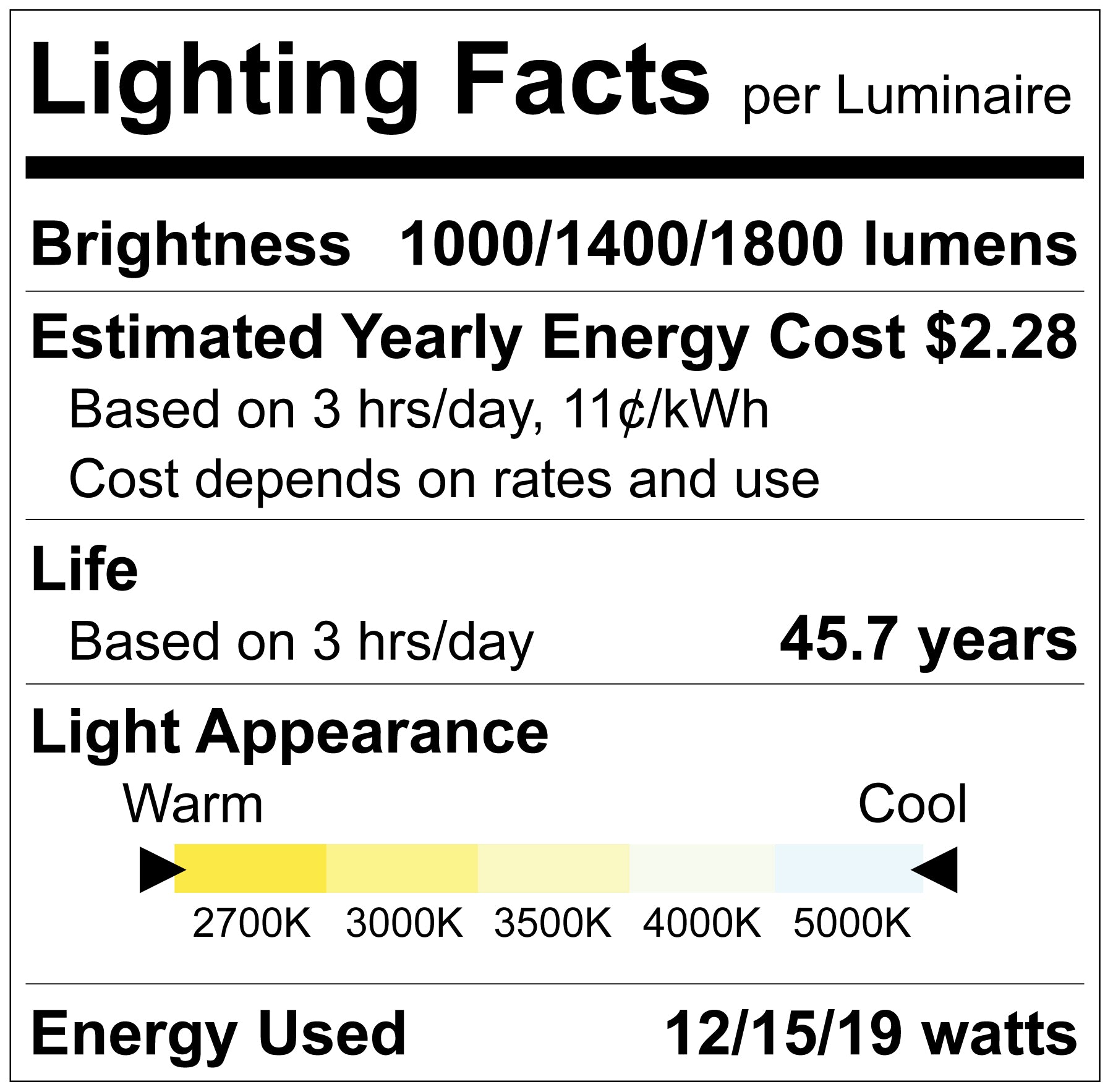

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1000/1400/1800
- Beam Angle 90°
- CRI 80
ELECTRICAL
- Power (Wattage) 12/15/19
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $2.28
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 94
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388923069
- Master BarCode 10732388923066
- Master Carton Dimensions:
- Length 18.50"
- Width 15.35"
- Height 9.44"
- Case Size 12
