SPECIFICATIONS
- Item numberLR22682
- Item description
LEDRMP5/3WO/5CCT/SQ/WT/UNV/DD
- Size5"
- Shape Regressed Mini Panel
- Dimensions
- Length 6.53"
- Width 6.53"
- Depth 2.16"
- Cutout Ø5.90"
- Finish WHITE

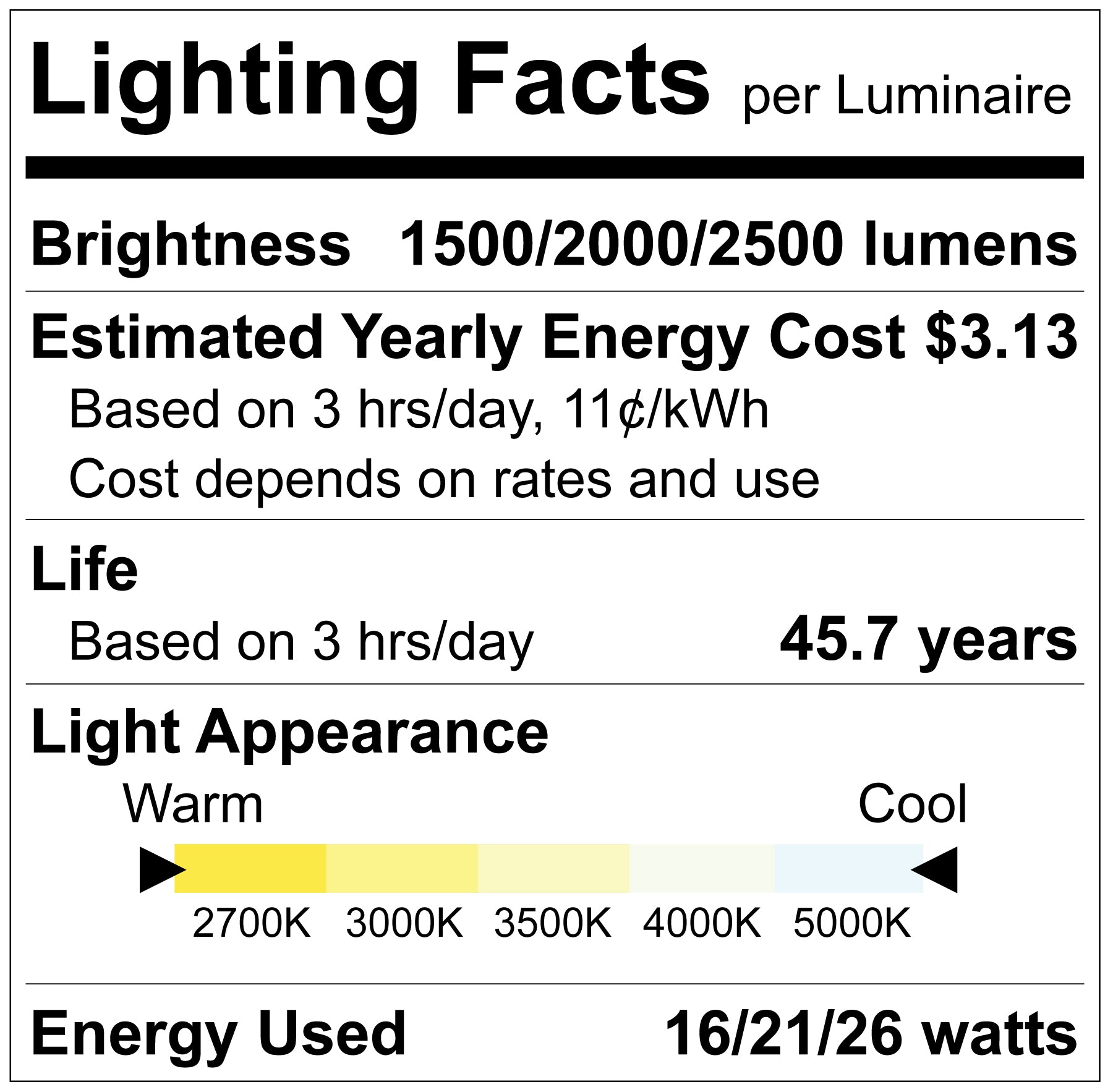

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1500/2000/2500
- Beam Angle 100°
- CRI 80
ELECTRICAL
- Power (Wattage) 16/21/26
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $3.13
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 96
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388923168
- Master BarCode 10732388923165
- Master Carton Dimensions:
- Length 23.22"
- Width 20.47"
- Height 9.44"
- Case Size 12
