SPECIFICATIONS
- Item numberLR22684
- Item description
LEDRMP6/3WO/5CCT/SQ/WT/UNV/DD
- Size6"

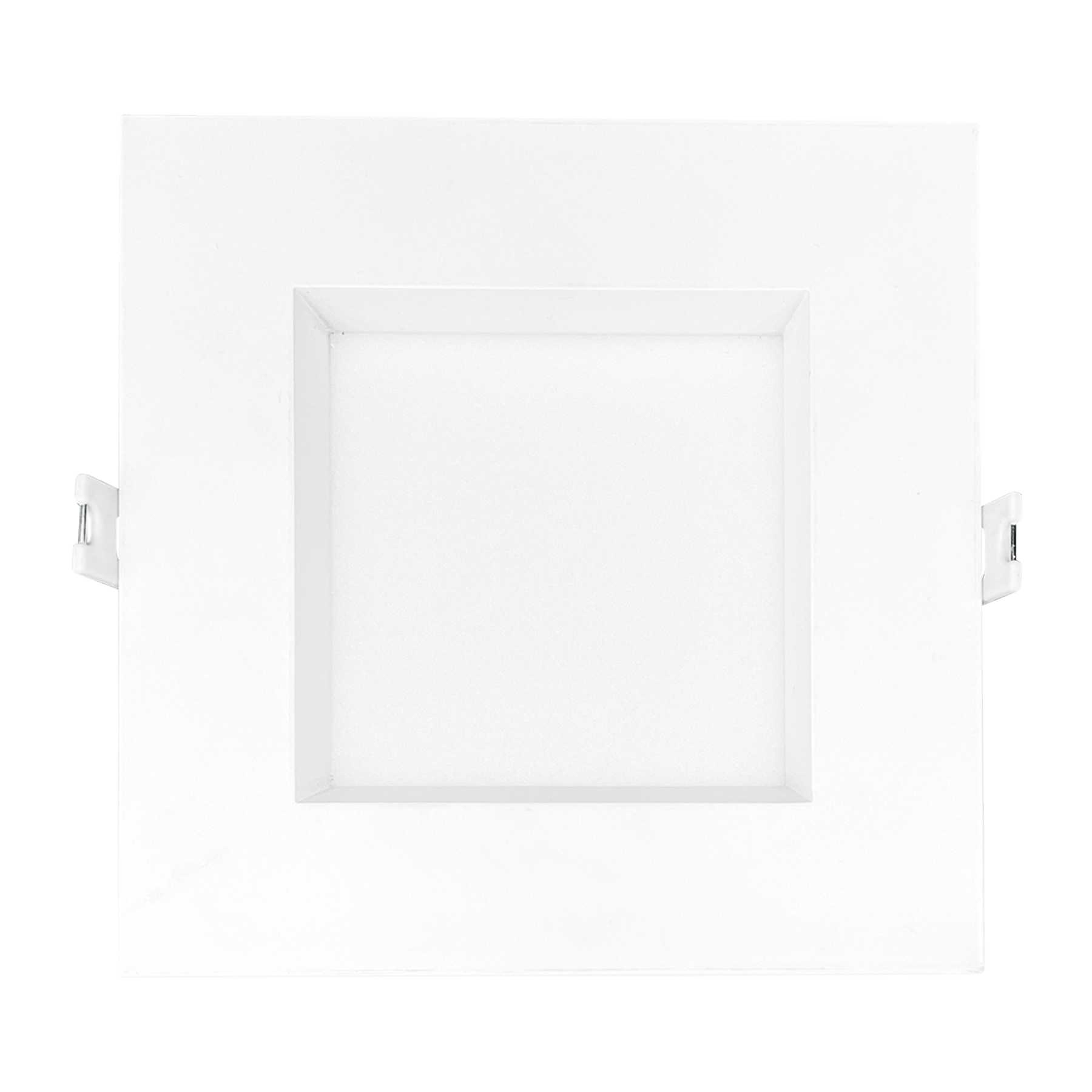

- Shape Regressed Mini Panel
- Dimensions
- Length 6.93"
- Width 6.93""
- Depth 2.16"
- Cutout Ø6.30"
- Finish WHITE

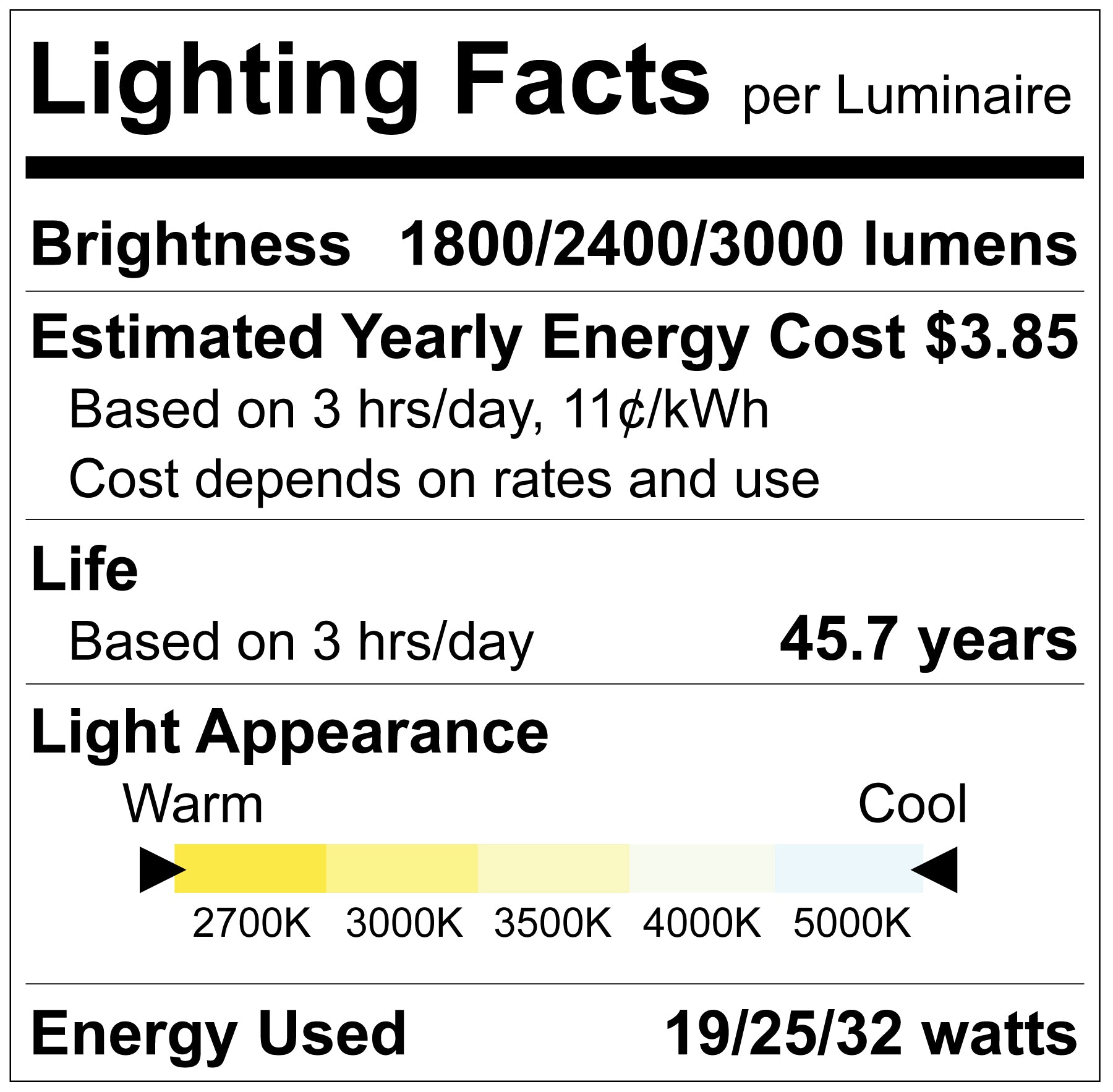

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 1800/2400/3000
- Beam Angle 100°
- CRI 80
ELECTRICAL
- Power (Wattage) 19/25/32
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $3.85
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 93
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388923267
- Master BarCode 10732388923264
- Master Carton Dimensions:
- Length 24.40"
- Width 20.47"
- Height 9.44"
- Case Size 12
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
LIFERITE WARRANTY
When you buy from us,
you’re covered by us.
LifeRite is our own, first-party warranty,
available in 2-, 3-, and 5—year terms,
depending on the exact product.
