LR23268

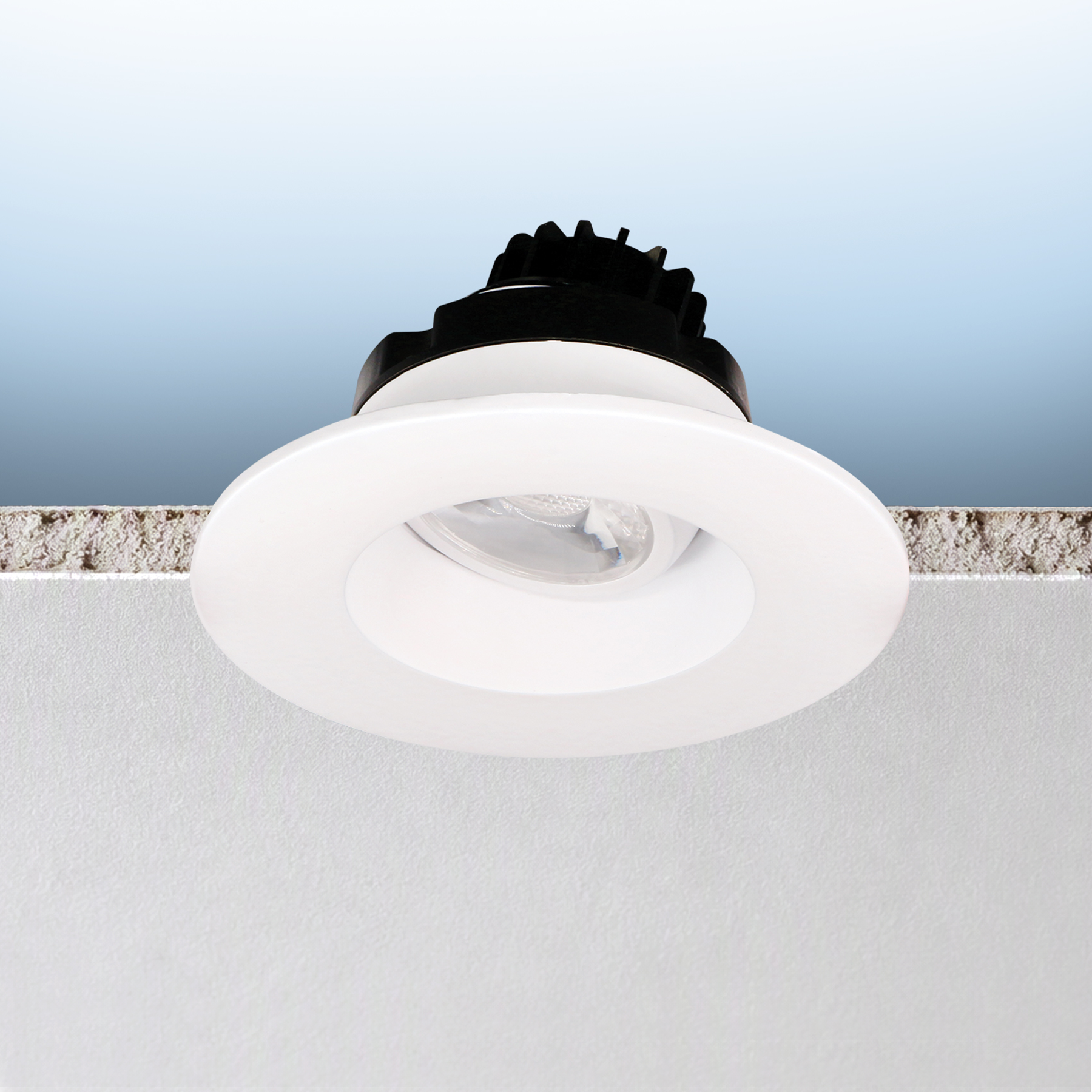

3" REGRESSED GIMBAL ROUND 5CCT CANLESS SPOTLIGHT

LED8W/RDL3/GB/5CCT/FL

3" REGRESSED GIMBAL ROUND 5CCT CANLESS SPOTLIGHT
3" REGRESSED GIMBAL ROUND 5CCT CANLESS SPOTLIGHT

LR23268

3" REGRESSED GIMBAL ROUND 5CCT CANLESS SPOTLIGHT

$0.00
/

LED8W/RDL3/GB/5CCT/FL

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 600
  • WATT 8
  • Size3"

SPECIFICATIONS

  • Item numberLR23268
  • Item description

    LED8W/RDL3/GB/5CCT/FL

  • Size3"
  • Shape 3" DEEP GIMBAL
  • Dimensions
    • Width Ø 4.3"
    • Height 2.5"
  • Cutout 3.37"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 600
  • Beam Angle 40°
  • CRI 90

ELECTRICAL

  • Power (Wattage) 8
  • Input Volts 120V
  • Rated Lifetime 50000
  • Yearly Cost $0.96
  • Dimmable TRIAC
  • Power Factor 0.98
  • Input Current 80mA
  • Frequency 60Hz
  • Watt Replacement 75
  • Lumen Efficacy 75
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 644216095414
  • Master BarCode 10644216095411
  • Master Carton Dimensions:
    • Length 17.71"
    • Width 12"
    • Height 11.61"
    • Weight 23.28lbs
  • Case Size 18

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS

DOCUMENTS
