LR23364

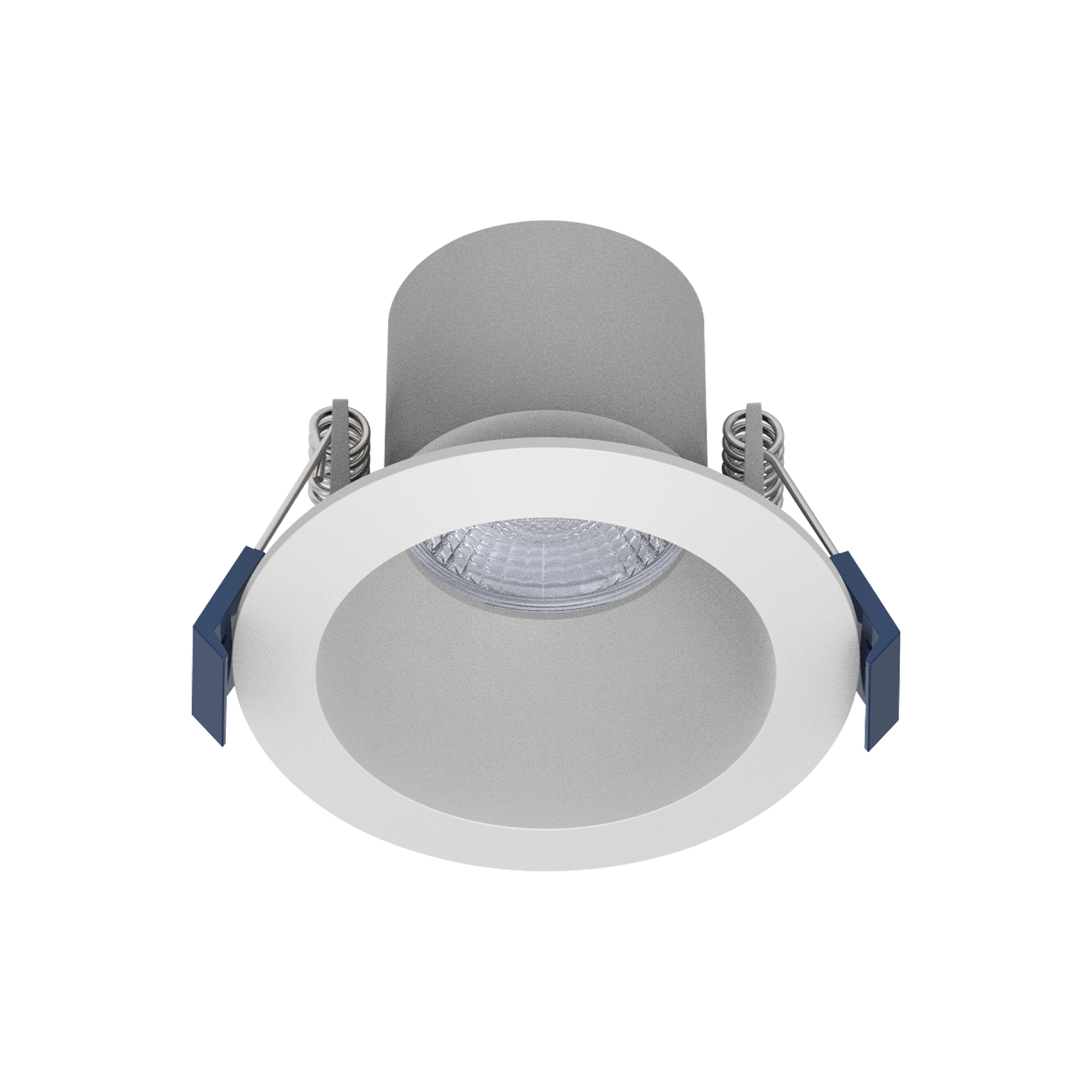

3" REGRESSED CANLESS SPOTLIGHT - ROUND WHITE - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

LED/RDL3/5CCT/RD/UNV/DD/WT

LR23364

3" REGRESSED CANLESS SPOTLIGHT - ROUND WHITE - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/RDL3/5CCT/RD/UNV/DD/WT

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 800
  • WATT 8
  • Size3"

SPECIFICATIONS

  • Item numberLR23364
  • Item description

    LED/RDL3/5CCT/RD/UNV/DD/WT

  • Size3"
  • Shape 3" ROUND REGRESSED
  • Dimensions
    • Width Ƙ3.54"
    • Depth 2.63"
  • Finish WHITE
  • Cutout Ƙ3"
  • Plate LR41002 (#0), LR41006 (#1), LR41010 (R0)

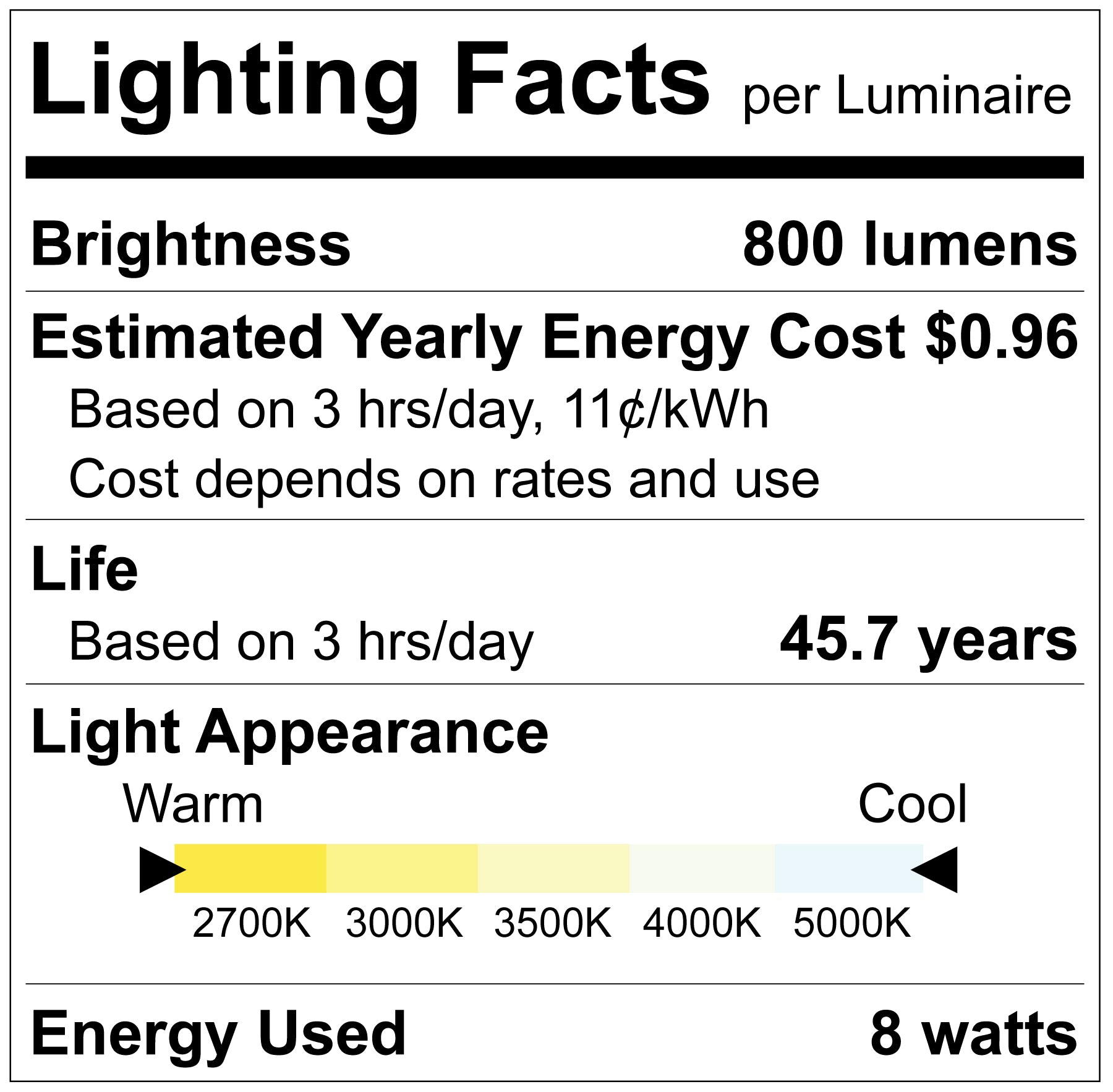

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 800
  • Beam Angle 45Āŗ
  • CRI 90

ELECTRICAL

  • Power (Wattage) 8
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $0.96
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Input Current 0.07A
  • Frequency 60Hz
  • Lumen Efficacy 100
  • Operating Temp:
    • Min -4Āŗ
    • Max 104Āŗ

PACKAGING

  • UPC Barcode 608870479720
  • Master BarCode 10608870479727
  • Master Carton Dimensions:
    • Length 19.98"
    • Width 11.22"
    • Height 13.58"
  • Case Size 16

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
