LR23365

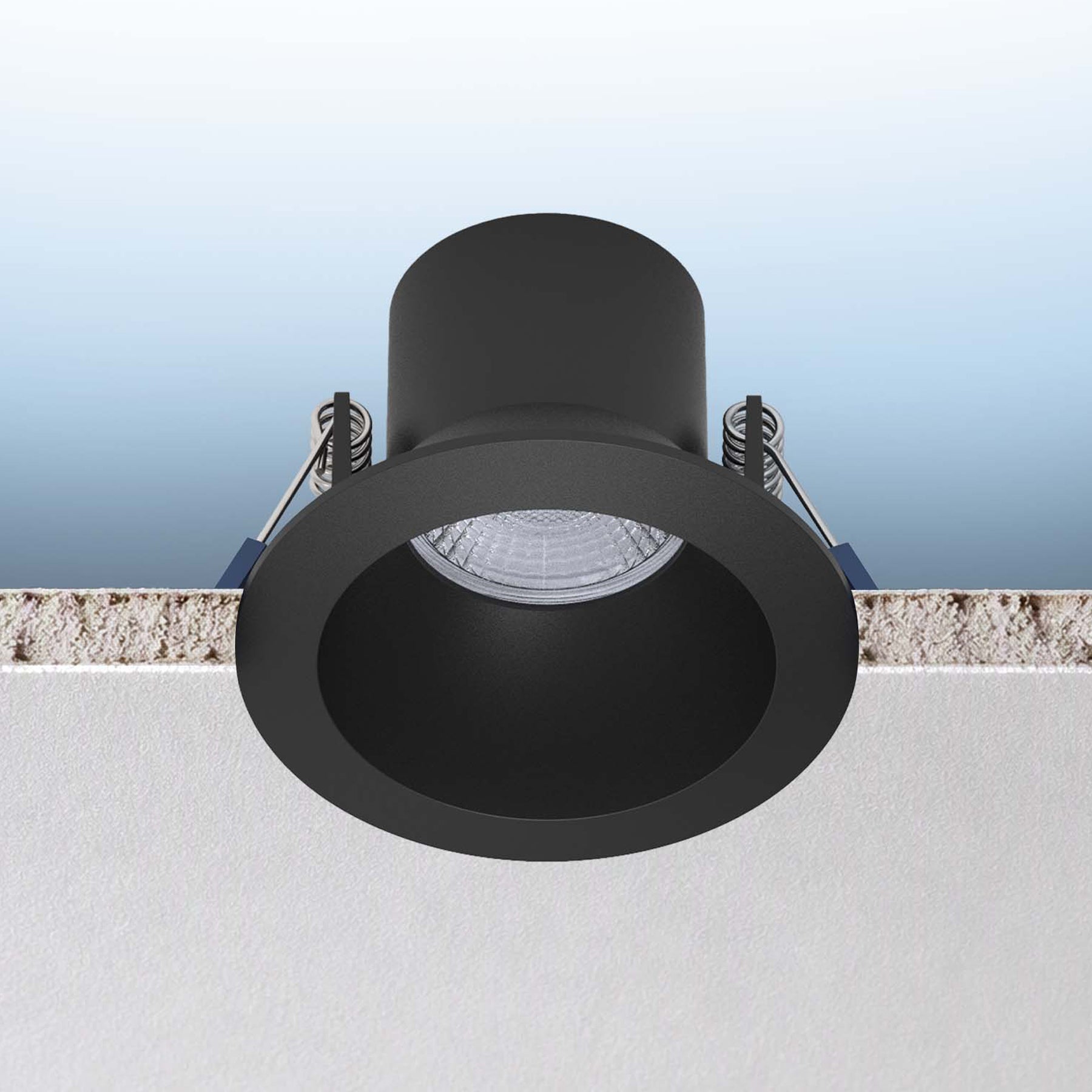

3" REGRESSED CANLESS SPOTLIGHT - ROUND BLACK - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

LED/RDL3/5CCT/RD/UNV/DD/BK

LR23365

3" REGRESSED CANLESS SPOTLIGHT - ROUND BLACK - 5 CCT SELECT UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/RDL3/5CCT/RD/UNV/DD/BK

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 650
  • WATT 8
  • Size3"

SPECIFICATIONS

  • Item numberLR23365
  • Item description

    LED/RDL3/5CCT/RD/UNV/DD/BK

  • Size3"
  • Shape 3" ROUND REGRESSED
  • Dimensions
    • Width Ø3.54"
    • Depth 2.63"
  • Finish BLACK
  • Cutout Ø3"
  • Plate LR41002 (#0), LR41006 (#1), LR41010 (R0)

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 650
  • Beam Angle 45º
  • CRI 90

ELECTRICAL

  • Power (Wattage) 8
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $0.96
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Input Current 0.07A
  • Frequency 60Hz
  • Lumen Efficacy 100
  • Operating Temp:
    • Min -4º
    • Max 104º

PACKAGING

  • UPC Barcode 608870479829
  • Master BarCode 10608870479826
  • Master Carton Dimensions:
    • Length 19.98"
    • Width 11.22"
    • Height 13.58"
  • Case Size 16

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
