SPECIFICATIONS
- Item numberLR23947
- Item description

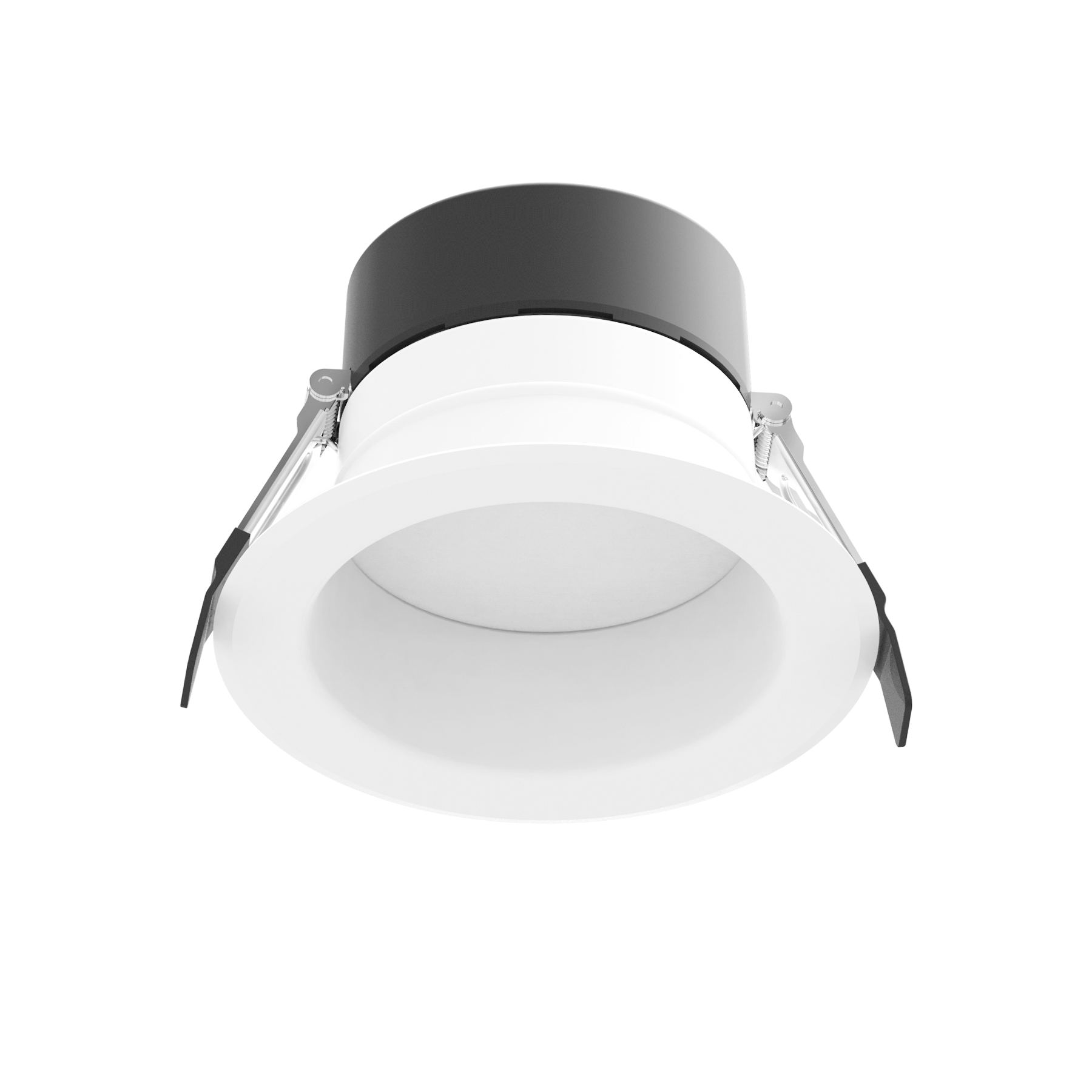

LED/CDL4HO/3WO/4CCT/JB
- Size4"
- Shape 4" ROUND
- Dimensions
- Width Ć 5.5"
- Height 3.66"
- Cutout 4.3"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K
- Lumen 600/800/1000
- Beam Angle 80Ā°
- CRI 80
ELECTRICAL
- Power (Wattage) 7/9/12
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.44
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 110mA
- Frequency 50/60Hz
- Lumen Efficacy 83
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 793888399440
- Master BarCode 10793888399447
- Master Carton Dimensions:
- Length 12"
- Width 12"
- Height 6.29"
- Weight 1.94kg
- Case Size 4
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. Itās designed to help industry experts formulate and display predicted lighting performance.
LIFERITE WARRANTY
When you buy from us,
youāre covered by us.
LifeRite is our own, first-party warranty,
available in 2-, 3-, and 5āyear terms,
depending on the exact product.
