SPECIFICATIONS
- Item numberLR23975
- Item description
LED/CDL4HO/3WO/5CCT/B/JB/UNV/DD
- Size4"
- Shape 4" ROUND
- Dimensions
- Width Ø 5.08"
- Height 3.11"
- Cutout 4.3"
- Finish WHITE

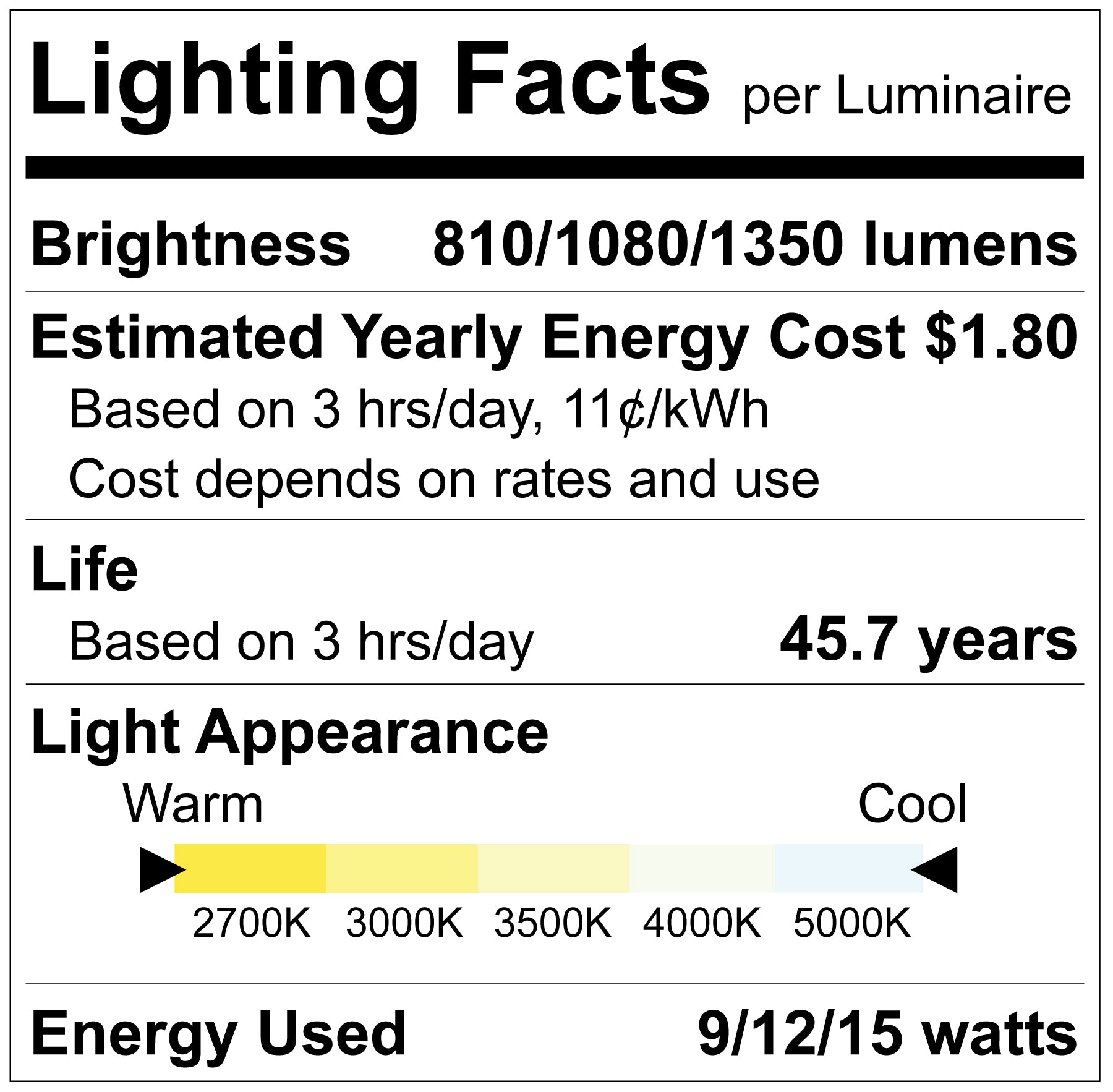

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 810/1080/1350
- Beam Angle 120º
- CRI 80
ELECTRICAL
- Power (Wattage) 9/12/15
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.8
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 90
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388924066
- Master BarCode 10732388924063
- Master Carton Dimensions:
- Length 20.28"
- Width 15.75"
- Height 13.39"
- Case Size 12
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
