LR23979
3" COMMERCIAL DOWNLIGHT 5 CCT & 3 WATTAGE SELECTABLE - UNIVERSAL VOLTAGE/DUAL DIMMING HIGH OUTPUT
LED/CDL3/VHO/3WO/5CCT/JB/UNV/DD
SPECIFICATIONS
- Item numberLR23979
- Item description
LED/CDL3/VHO/3WO/5CCT/JB/UNV/DD
- Size3"
- Shape 3" ROUND
- Dimensions
- Width Ø4.33"
- Depth 3.20"
- Cutout Ø3"
- Finish WHITE

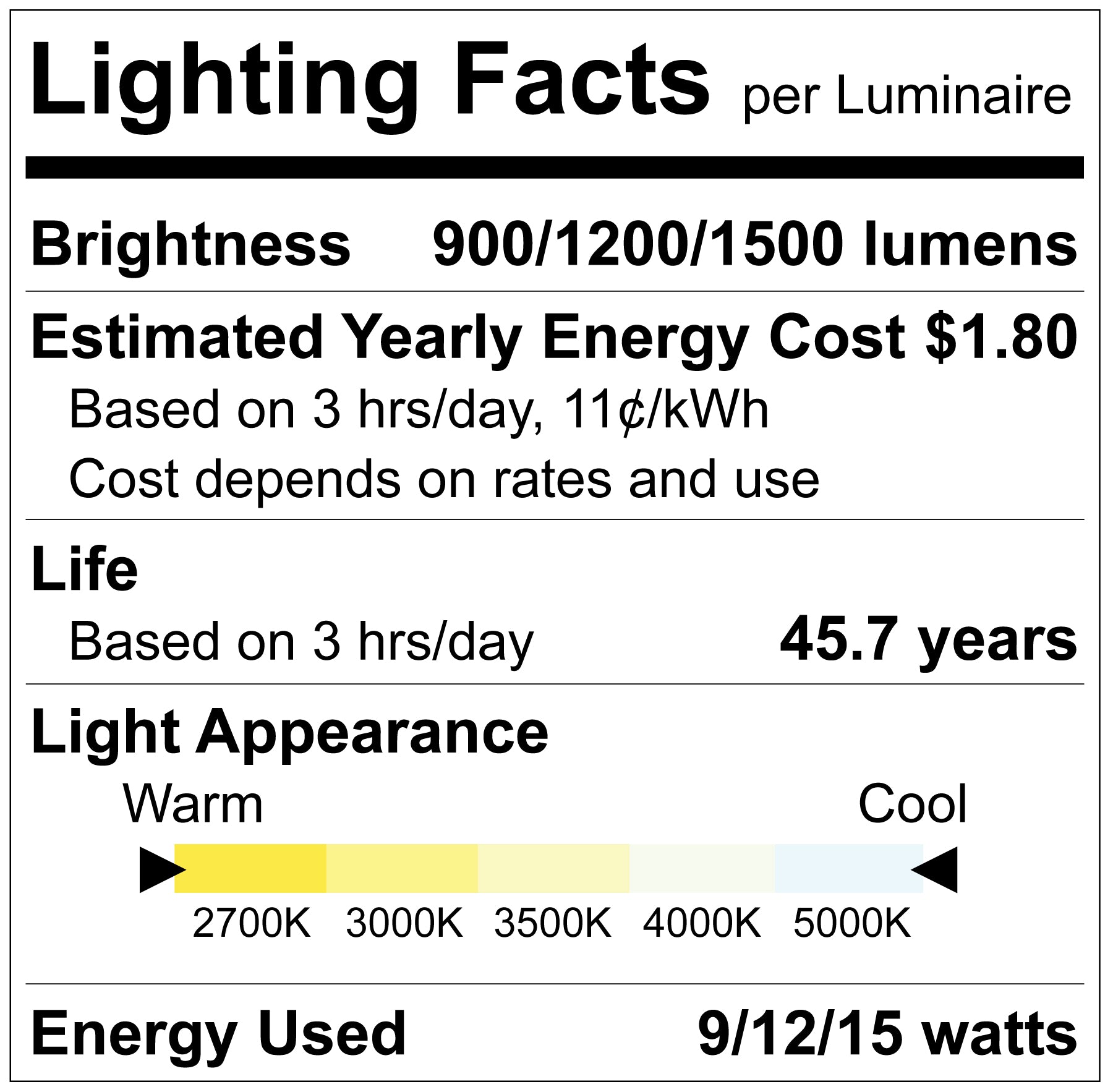

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 900/1200/1500
- Beam Angle 80°
- CRI 90
ELECTRICAL
- Power (Wattage) 9/12/15
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.80
- Dimmable TRIAC/0-10V
- Power Factor 0.9@120V 0.7@277V
- Frequency 50/60Hz
- Lumen Efficacy 100
- Operating Temp:
- Min -4°
- Max 104°
PACKAGING
- UPC Barcode 732388933167
- Master BarCode 10732388933164
- Master Carton Dimensions:
- Length 12.12"
- Width 9.53"
- Height 12.76"
- Case Size 4
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. It’s designed to help industry experts formulate and display predicted lighting performance.
