SPECIFICATIONS
- Item numberLR24220
- Item description

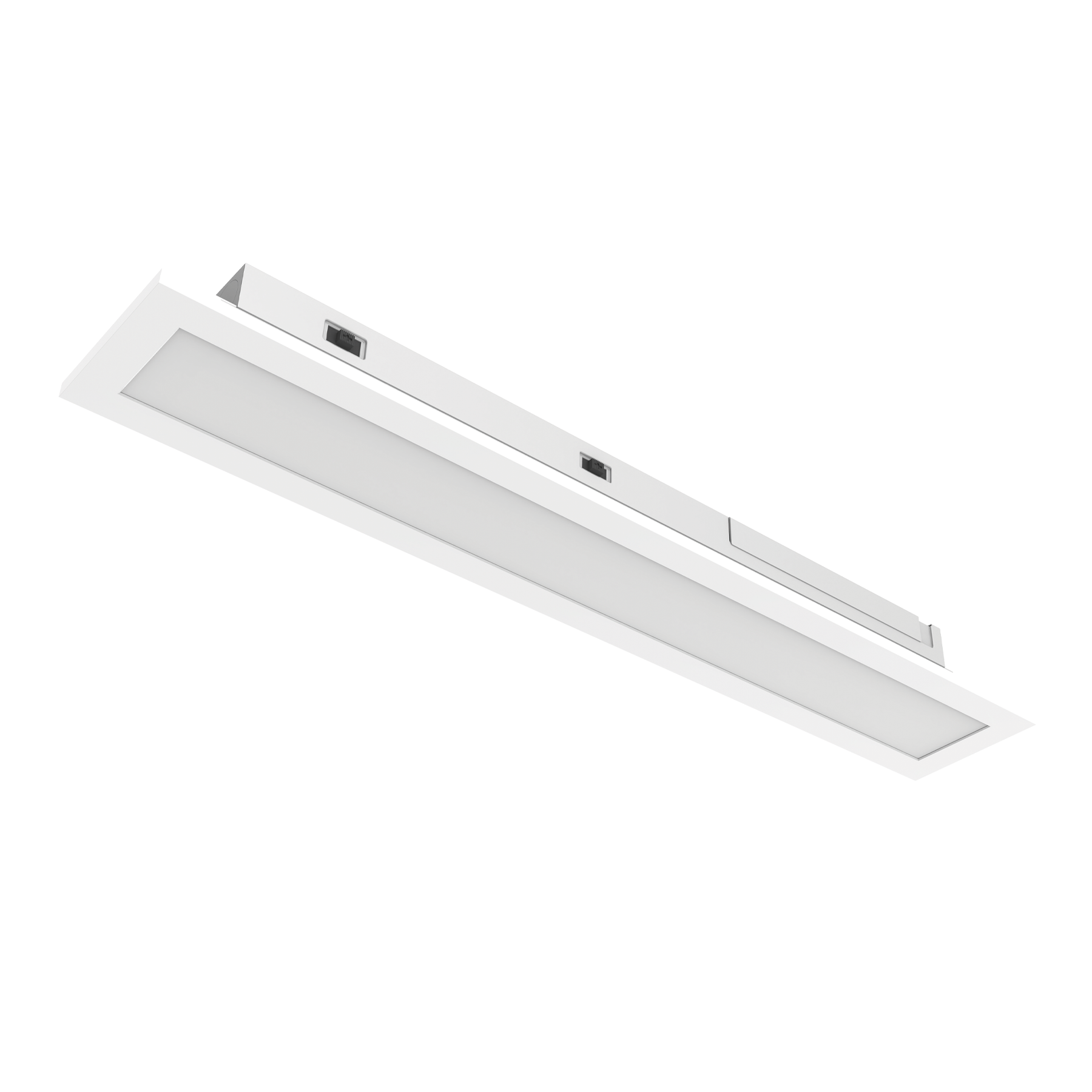

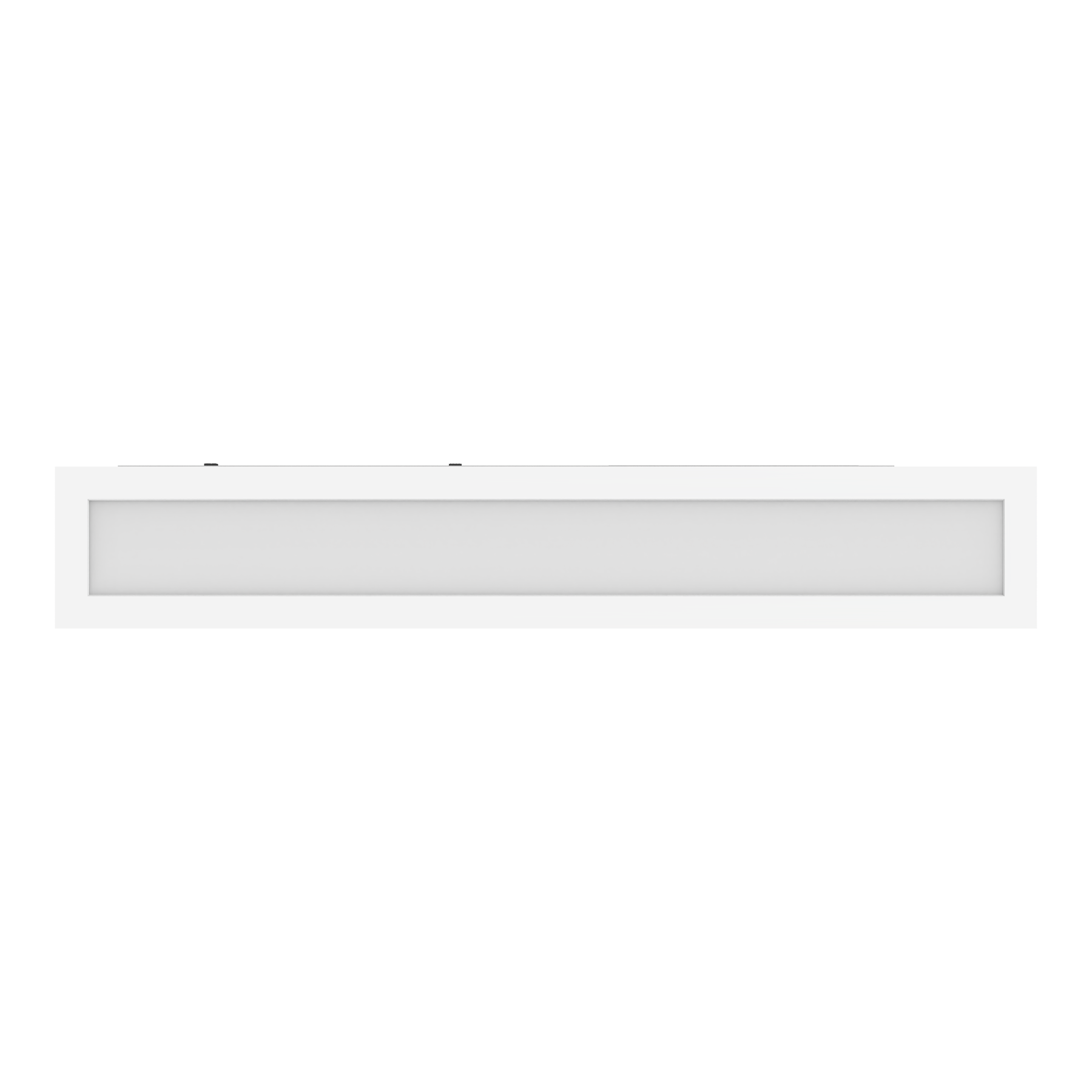

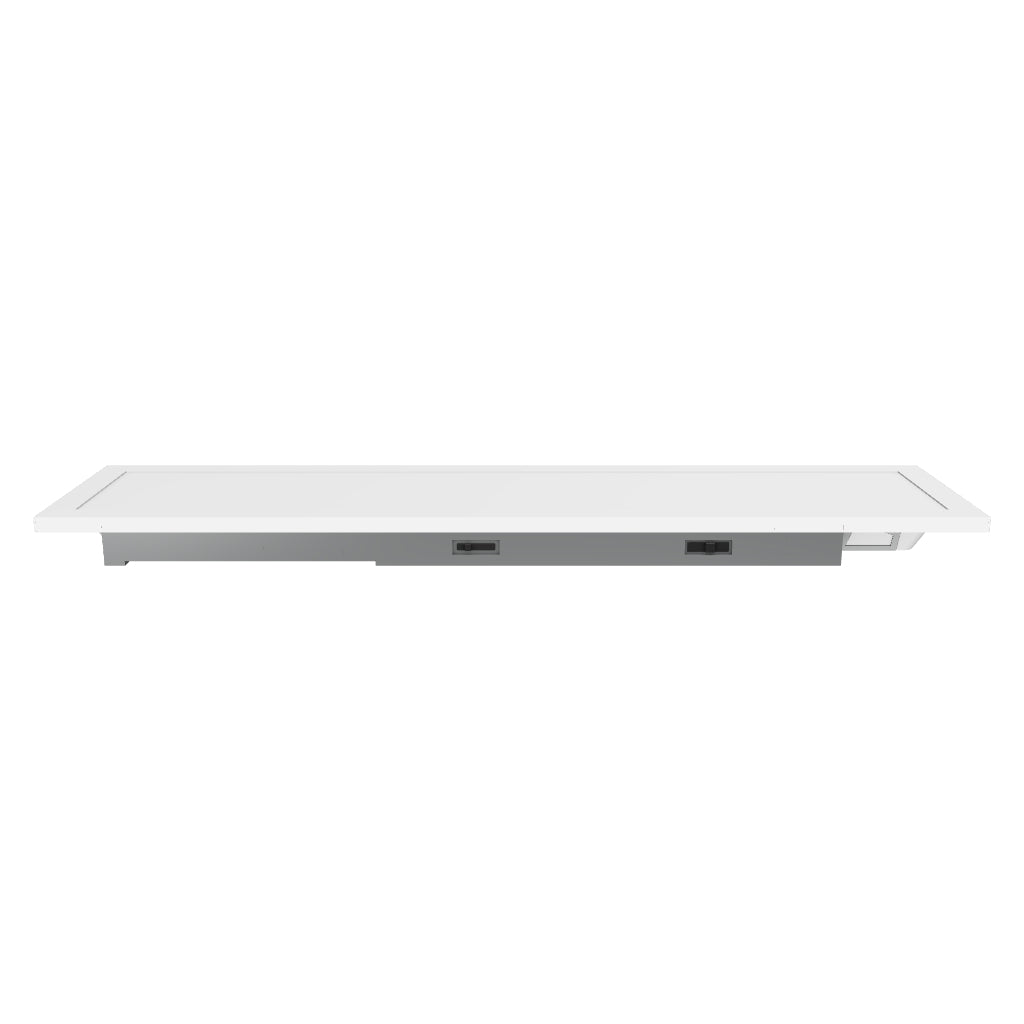

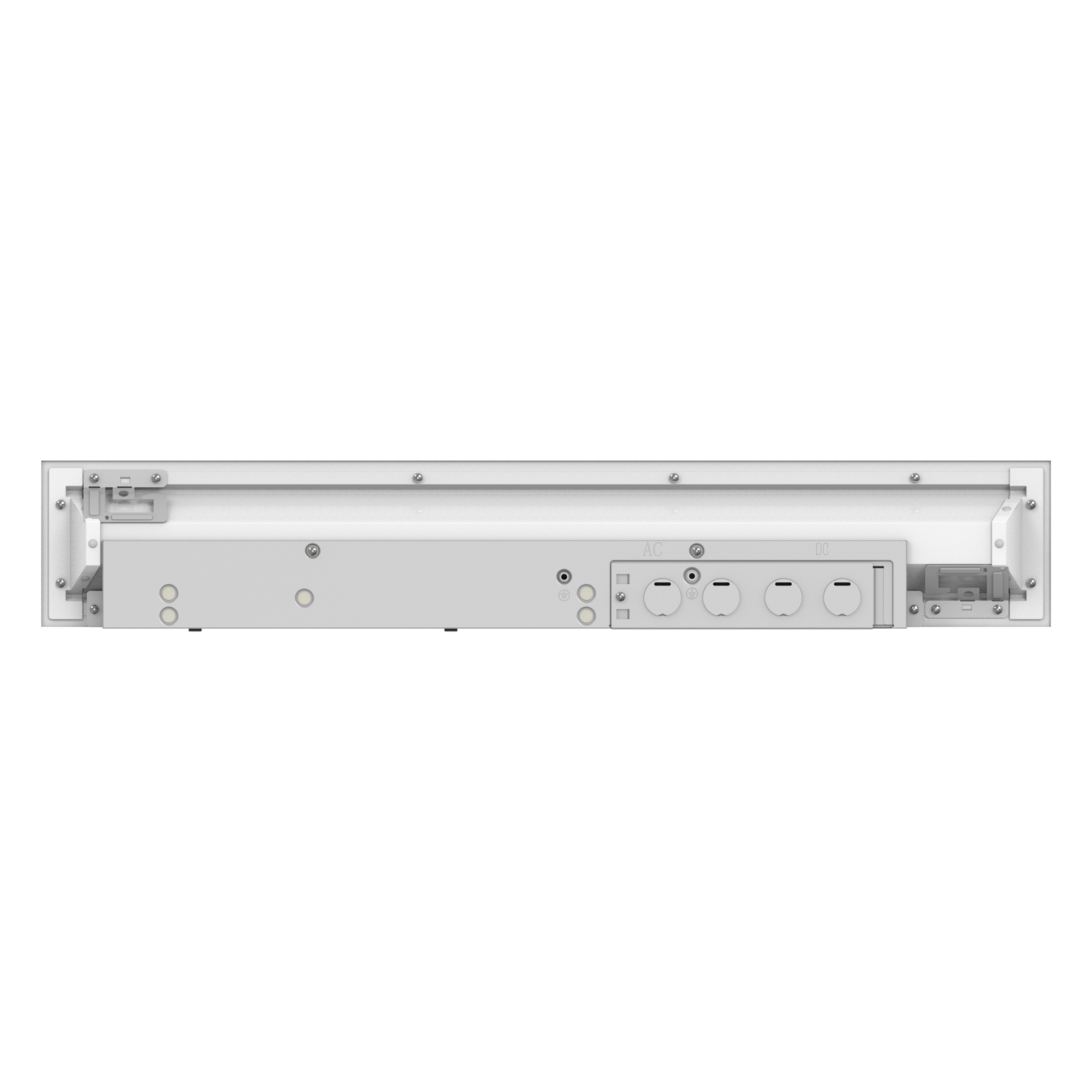

LED4"X2BPNL/3WO/4CCT/D
- Size4" X 2'
- Shape 4" BACKLIT PANEL
- Dimensions
- Length 23.82"
- Width 3.93"
- Depth 1.38"
- Finish WHITE

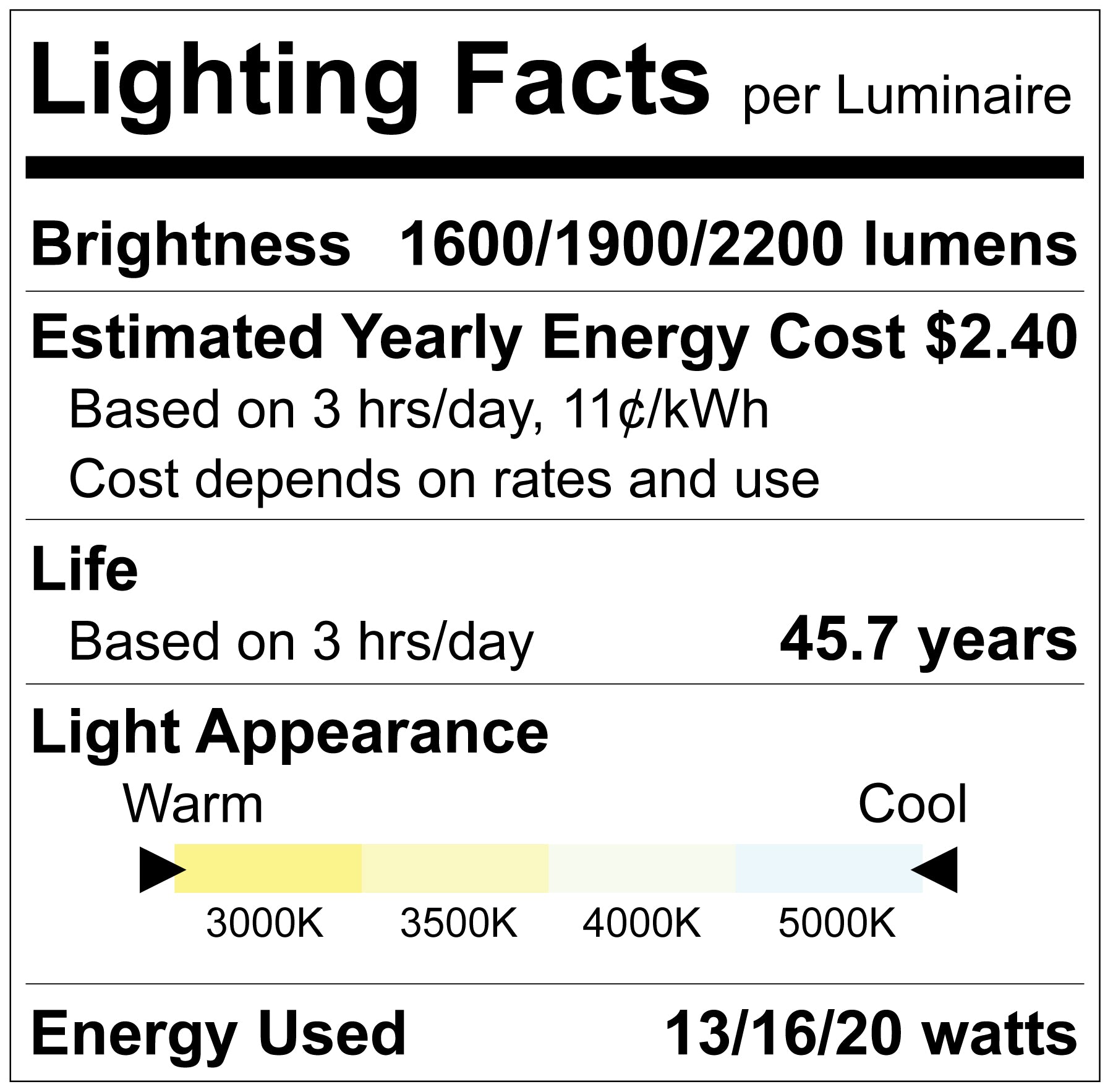

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K
- Lumen 1600/1900/2200
- Beam Angle 110Āŗ
- CRI 80
ELECTRICAL
- Power (Wattage) 13/16/20
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $2.40
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 185mA
- Frequency 50/60Hz
- Lumen Efficacy 110
- Operating Temp:
- Min -4Āŗ
- Max 104Āŗ
PACKAGING
- UPC Barcode 732388925667
- Master BarCode 10732388925664
- Master Carton Dimensions:
- Length 25"
- Width 9.25"
- Height 5.51"
- Case Size 6
