SPECIFICATIONS
- Item numberLR24221
- Item description
LED4"X4BPNL/3WO/4CCT/D
- Size4" X 4'
- Shape 4" BACKLIT PANEL
- Dimensions
- Length 47.80"
- Width 3.93"
- Depth 1.38"
- Finish WHITE

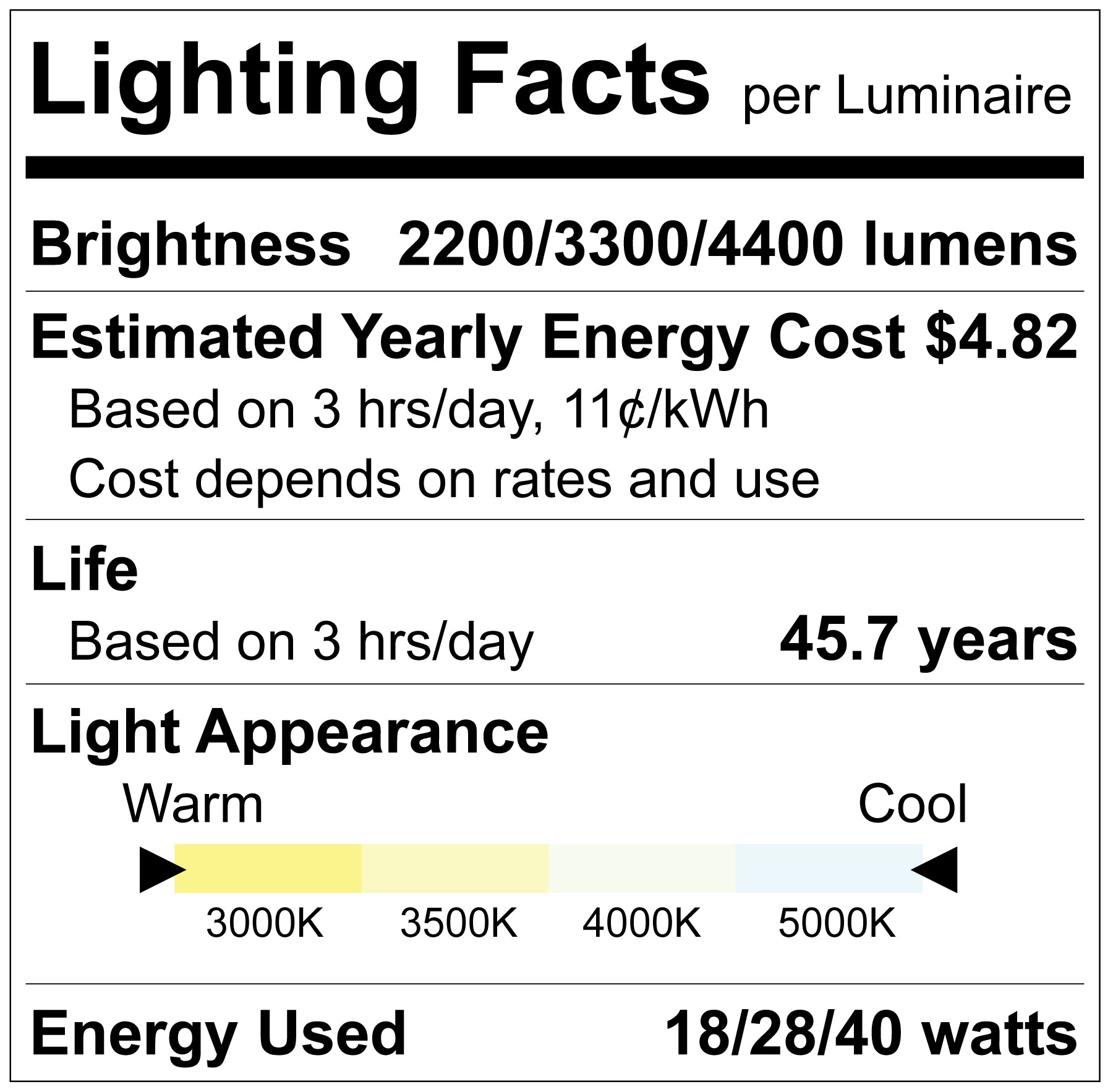

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K
- Lumen 2200/3300/4400
- Beam Angle 110º
- CRI 80
ELECTRICAL
- Power (Wattage) 18/28/40
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $4.82
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 370mA
- Frequency 50/60Hz
- Lumen Efficacy 110
- Operating Temp:
- Min -4º
- Max 104º
PACKAGING
- UPC Barcode 732388925766
- Master BarCode 10732388925763
- Master Carton Dimensions:
- Length 49.01"
- Width 9.25"
- Height 5.51"
- Case Size 6
