SPECIFICATIONS
- Item numberLR24222
- Item description
LED4"X6BPNL/3WO/4CCT/D
- Size4" X 6'
- Shape 4" BACKLIT PANEL
- Dimensions
- Length 75.75"
- Width 3.93"
- Height 1.97"
- Finish WHITE

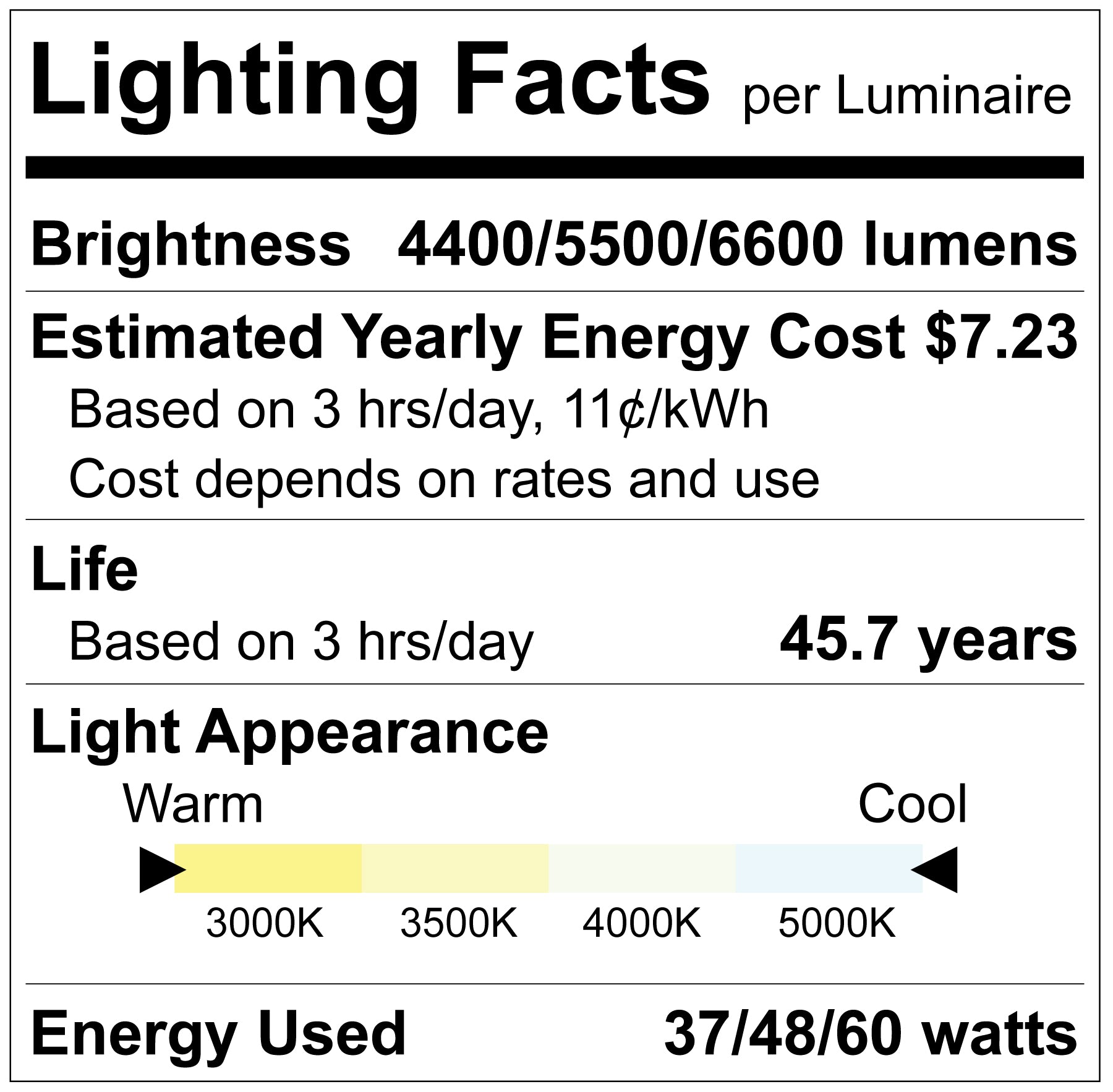

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K
- Lumen 4400/5500/6600
- Beam Angle 110º
- CRI 80
ELECTRICAL
- Power (Wattage) 37/48/60
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $7.23
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 580mA
- Frequency 50/60Hz
- Lumen Efficacy 110
- Operating Temp:
- Min -4º
- Max 104º
PACKAGING
- UPC Barcode 732388925865
- Master BarCode 10732388925862
- Master Carton Dimensions:
- Length 73.03"
- Width 9.25"
- Height 7.48"
- Case Size 6
