SPECIFICATIONS
- Item numberLR24223
- Item description
LED4"X8BPNL/3WO/4CCT/D
- Size4" X 8'
- Shape 4" BACKLIT PANEL
- Dimensions
- Length 95.79"
- Width 3.93"
- Depth 1.97"
- Finish WHITE

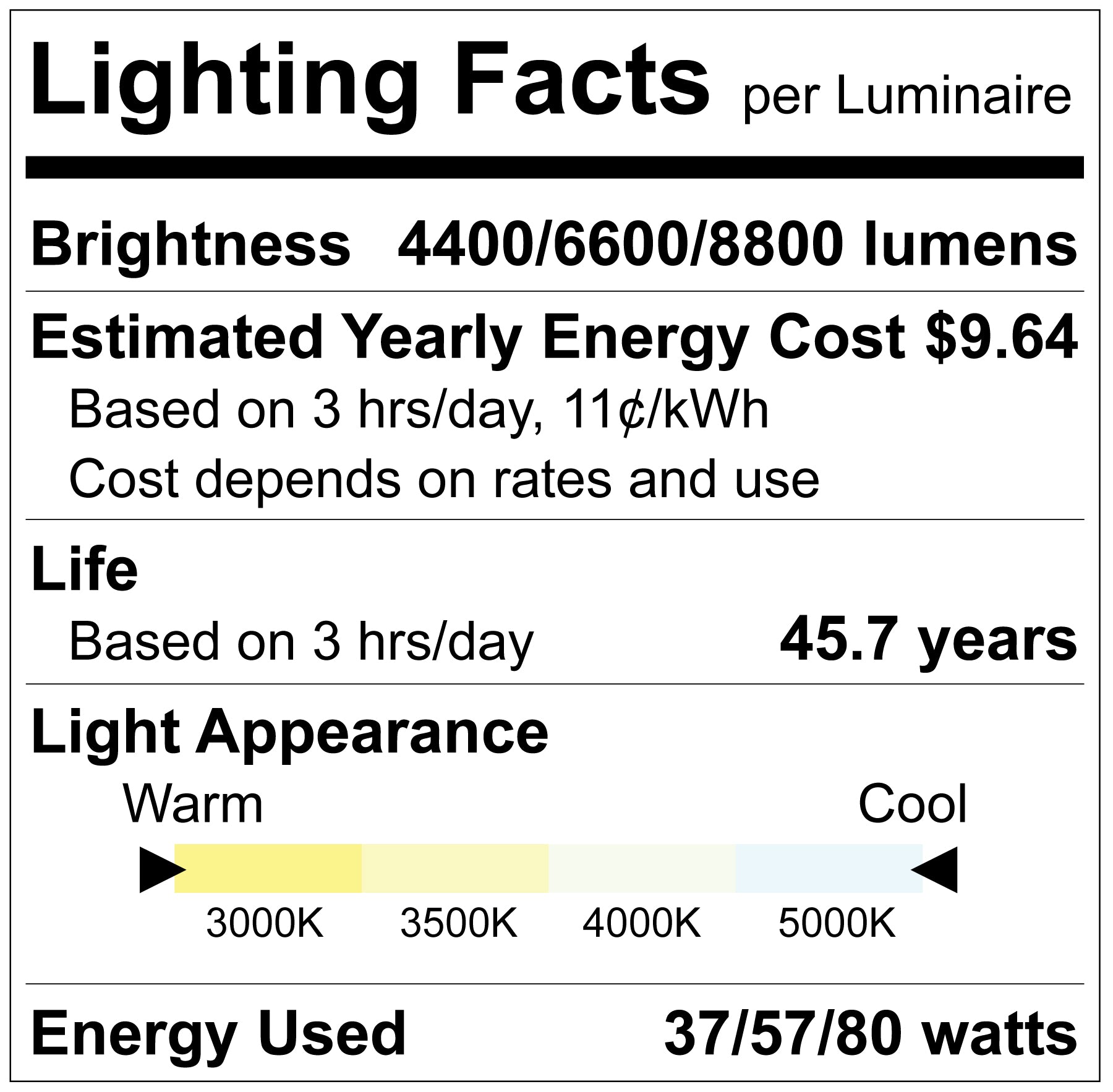

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K
- Lumen 4400/6600/8800
- Beam Angle 110º
- CRI 80
ELECTRICAL
- Power (Wattage) 37/57/80
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $9.64
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 740mA
- Frequency 50/60Hz
- Lumen Efficacy 110
- Operating Temp:
- Min -4º
- Max 104º
PACKAGING
- UPC Barcode 732388925964
- Master BarCode 10732388925961
- Master Carton Dimensions:
- Length 97.04"
- Width 9.25"
- Height 7.28"
- Case Size 6
