LR24299

2X2 BACKLIT PANEL 5CCT & 4 WATTAGE SELECTABLE - SENSOR READY - HIGH OUTPUT

LED2X2BPNL/VHO/4WO/5CCT/D/SR

LR24299

2X2 BACKLIT PANEL 5CCT & 4 WATTAGE SELECTABLE - SENSOR READY - HIGH OUTPUT

$0.00
/

LED2X2BPNL/VHO/4WO/5CCT/D/SR

  • CCT 3000K/3500K/4000K/5000K/6500K
  • Lumen 6000/7000/8000/10000
  • WATT 38/45/51/68
  • Size2X2

SPECIFICATIONS

  • Item numberLR24299
  • Item description

    LED2X2BPNL/VHO/4WO/5CCT/D/SR

  • Size2X2
  • Shape 2X2
  • Dimensions
    • Length 23.7"
    • Width 23.7"
    • Height 1.5"
  • Finish WHITE

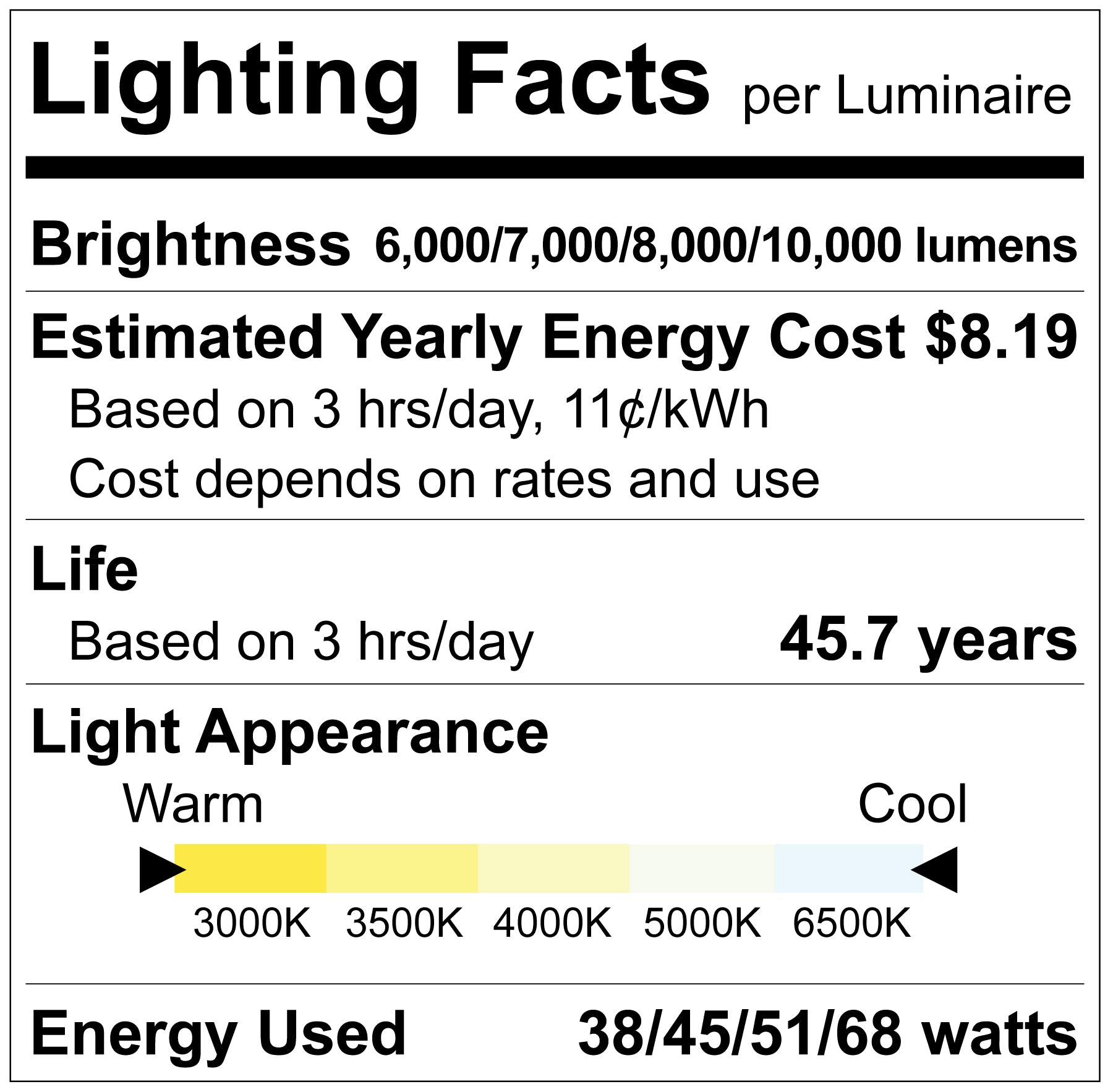

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/3500K/4000K/5000K/6500K
  • Lumen 6000/7000/8000/10000
  • Beam Angle 110Āŗ
  • CRI 80

ELECTRICAL

  • Power (Wattage) 38/45/51/68
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $8.19
  • Dimmable 0-10V
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 150

PACKAGING

  • UPC Barcode 732388961160
  • Master BarCode 10732388961167
  • Master Carton Dimensions:
    • Length 25.59"
    • Width 25.59"
    • Height 3.23"
  • Case Size 2

FEATURES

    80 LIFE HR 50000
