SPECIFICATIONS
- Item numberLR24569
- Item description
LED20/2G11/22.5/5CCT/UNV
- Size22.24"

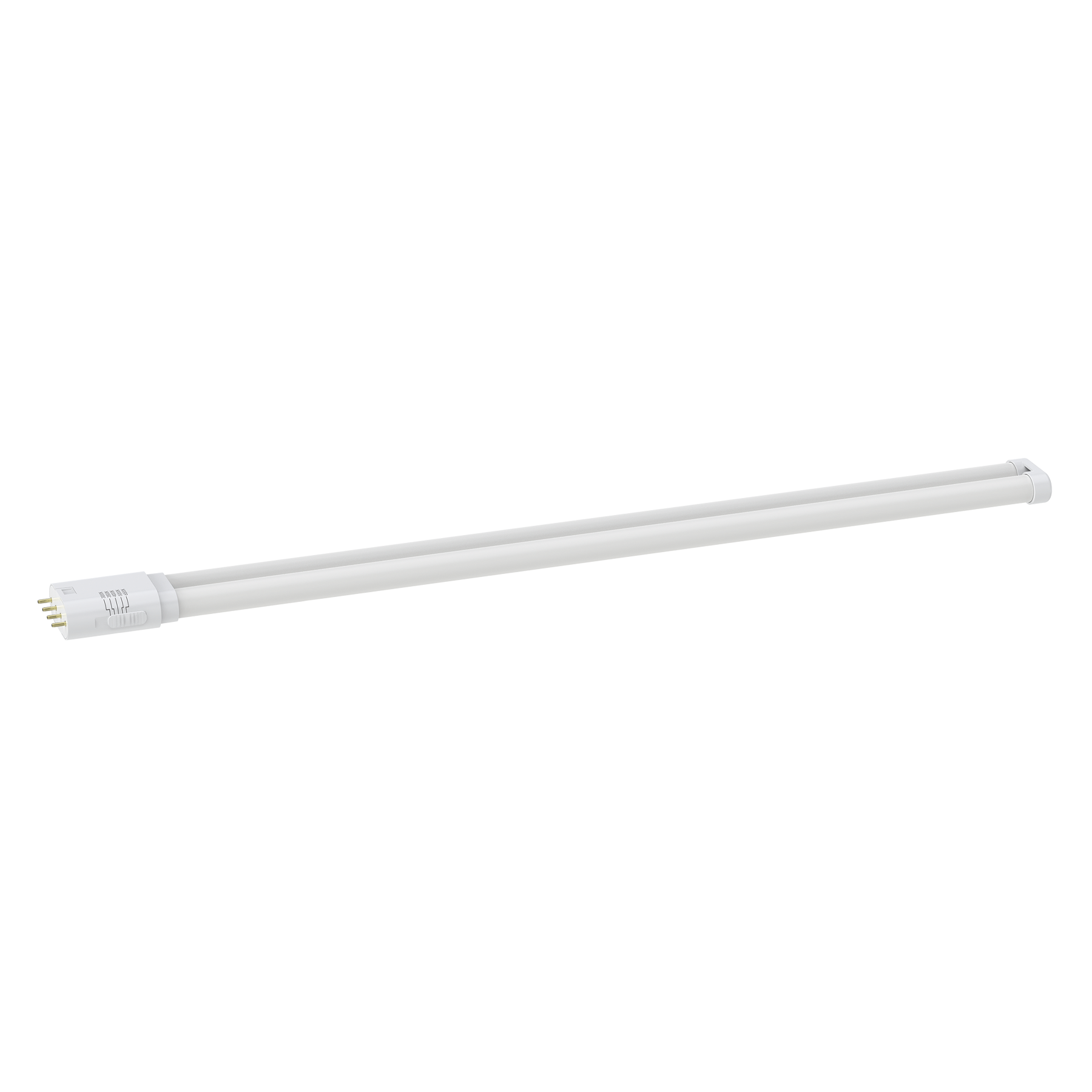

- Shape RETROFIT TUBE
- Base 2G11
- Dimensions
- Length 22.24"
- Width 1.71"
- Depth 0.92"
- Finish WHITE
- MOL 22.24"
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K/6500K
- Lumen 3000
- Beam Angle 360Ā°
- CRI 83
ELECTRICAL
- Power (Wattage) 20
- Input Volts 120-277V or Ballast
- Rated Lifetime 50000
- Yearly Cost $2.40
- Ballast Compatible TRUE
- Power Factor 0.9
- Input Current 185mA
- Frequency 50/60Hz
- Bypass 1 Side Input Yes
- Lumen Efficacy 133
PACKAGING
- UPC Barcode 732388924769
- Master BarCode 10732388924766
- Master Carton Dimensions:
- Length 23.42"
- Width 10.03"
- Height 6.22"
- Case Size 30
FEATURES
CERTIFICATIONS
