SPECIFICATIONS
- Item numberLR24916
- Item description
LED/TLMD1/5CCT/RD/WT
- Size1"
- Shape 1" TRIMLESS
- Dimensions
- Width Ć3.82"
- Depth 3.56"
- Cutout Ć2.24"
- Finish WHITE

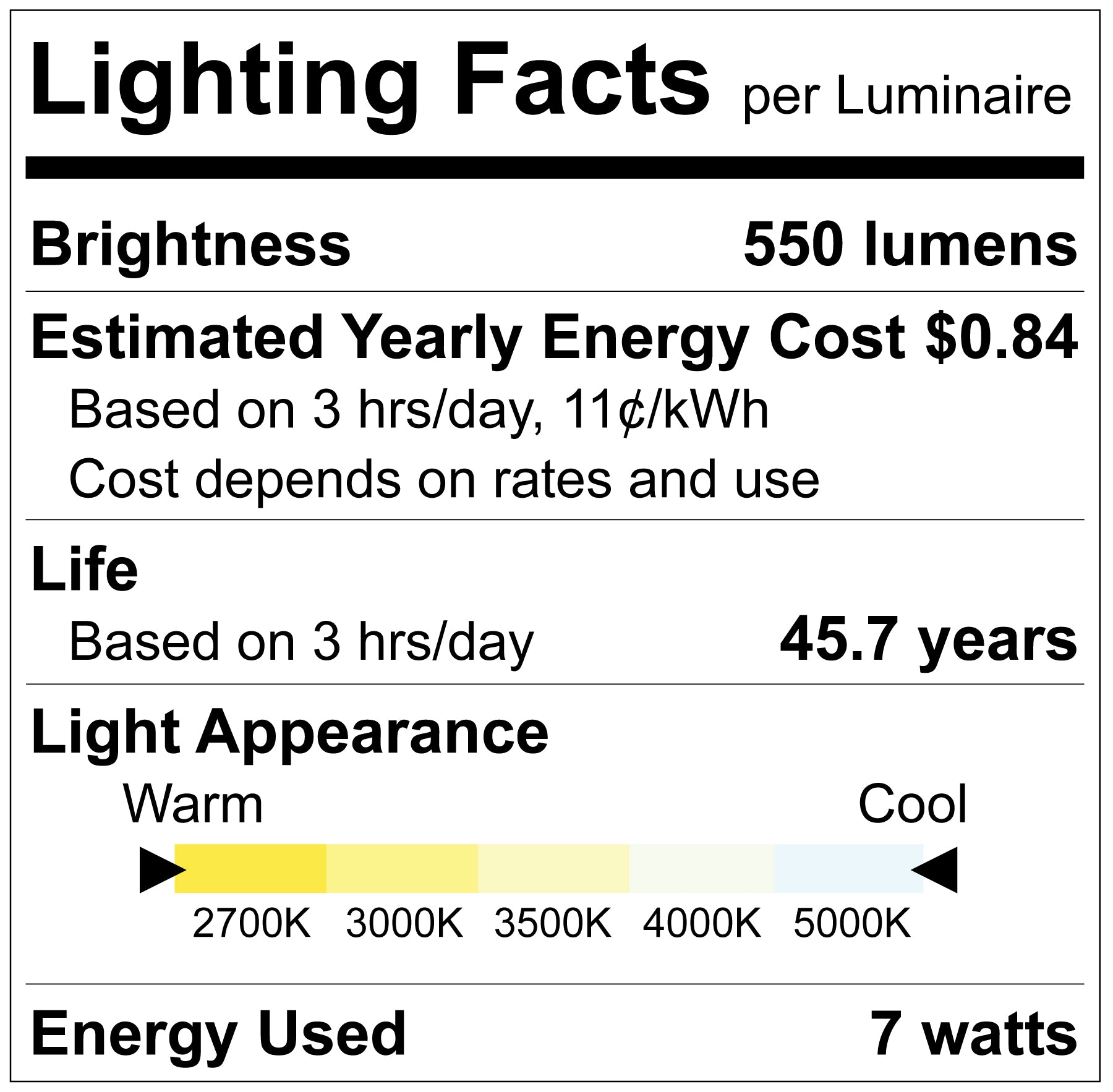

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/50000K
- Lumen 550
- Beam Angle 38Āŗ
- CRI 80
ELECTRICAL
- Power (Wattage) 7
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $0.84
- Dimmable TRIAC
- Power Factor 0.9
- Input Current 70mA
- Frequency 60Hz
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 793888436541
- Master BarCode 10793888436548
- Master Carton Dimensions:
- Length 17.52"
- Width 12"
- Height 7.28"
- Case Size 12
