SPECIFICATIONS
- Item numberLR24927
- Item description
LED/RMP3/5CCT/TL/RD/WT
- Size3"

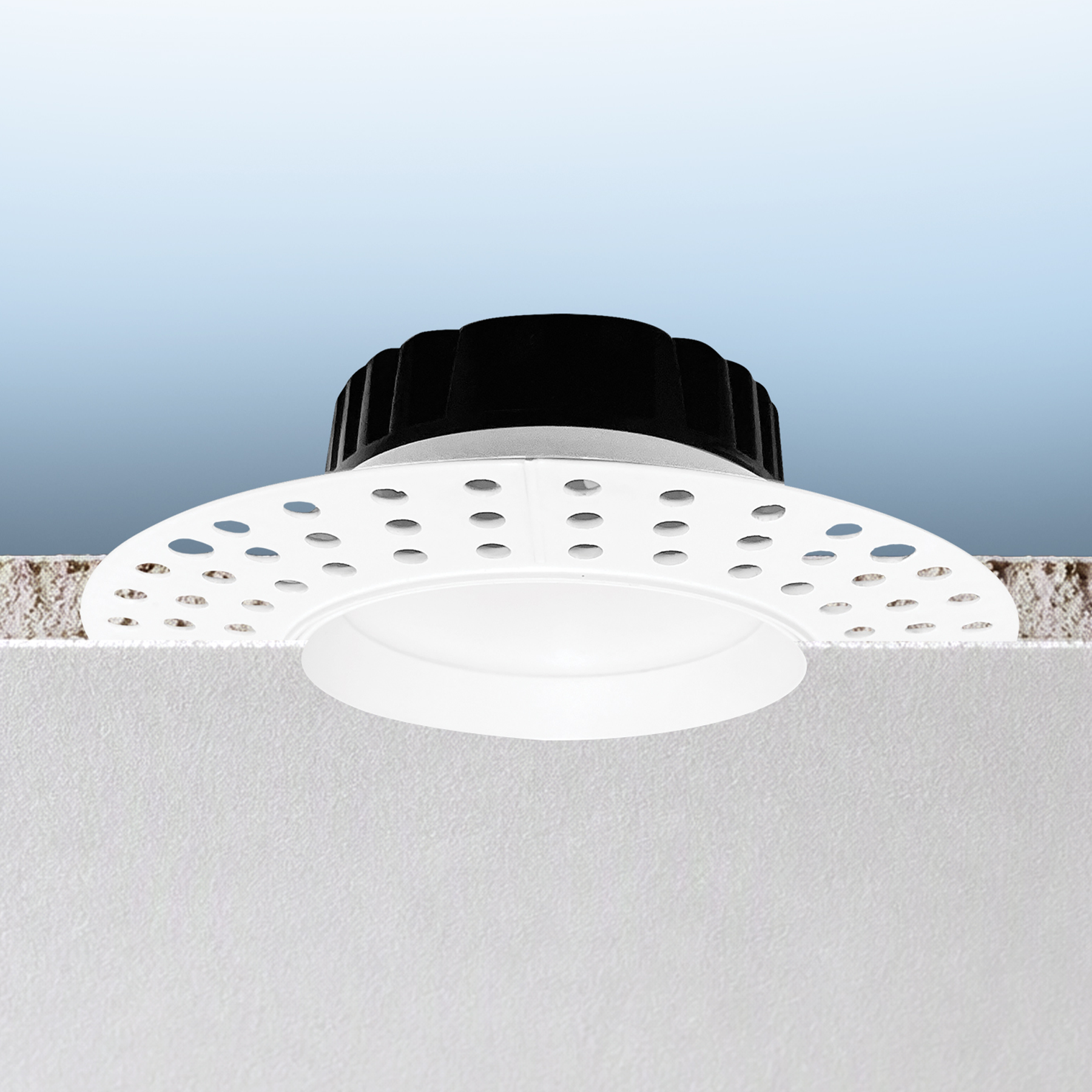

- Shape MINI PANEL TRIMLESS
- Dimensions
- Width Ø4.67"
- Depth 2.5"
- Cutout Ø3.23"
- Finish WHITE
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/50000K
- Lumen 750
- Beam Angle 110º
- CRI 90
ELECTRICAL
- Power (Wattage) 10
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $1.2
- Dimmable TRIAC
- Power Factor 0.9
- Frequency 50/60Hz
- Operating Temp:
- Min -4º
- Max 104º
PACKAGING
- UPC Barcode 793888438347
- Master BarCode 10793888438344
- Master Carton Dimensions:
- Length 15.35"
- Width 12"
- Height 11.02"
- Case Size 18
