LR25035

2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING

LED/DLMD2VHO/2WO/5CCT/DD/UNV/WFL

2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
3D viewer 2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING
2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING

LR25035

2" INTERCHANGEABLE MODULE - 5CCT & 2 WATTAGE SELECTABLE VERY HIGH OUTPUT 60º - UNIVERSAL VOLTAGE/DUAL DIMMING

$0.00
/

LED/DLMD2VHO/2WO/5CCT/DD/UNV/WFL

  • CCT 2700K/3000K/3500K/4000K/5000K
  • Lumen 1200@14W/1700@20W
  • WATT 14/20
  • Size2"

SPECIFICATIONS

  • Item numberLR25035
  • Item description

    LED/DLMD2VHO/2WO/5CCT/DD/UNV/WFL

  • Size2"
  • Shape 2" INTERCHANGABLE

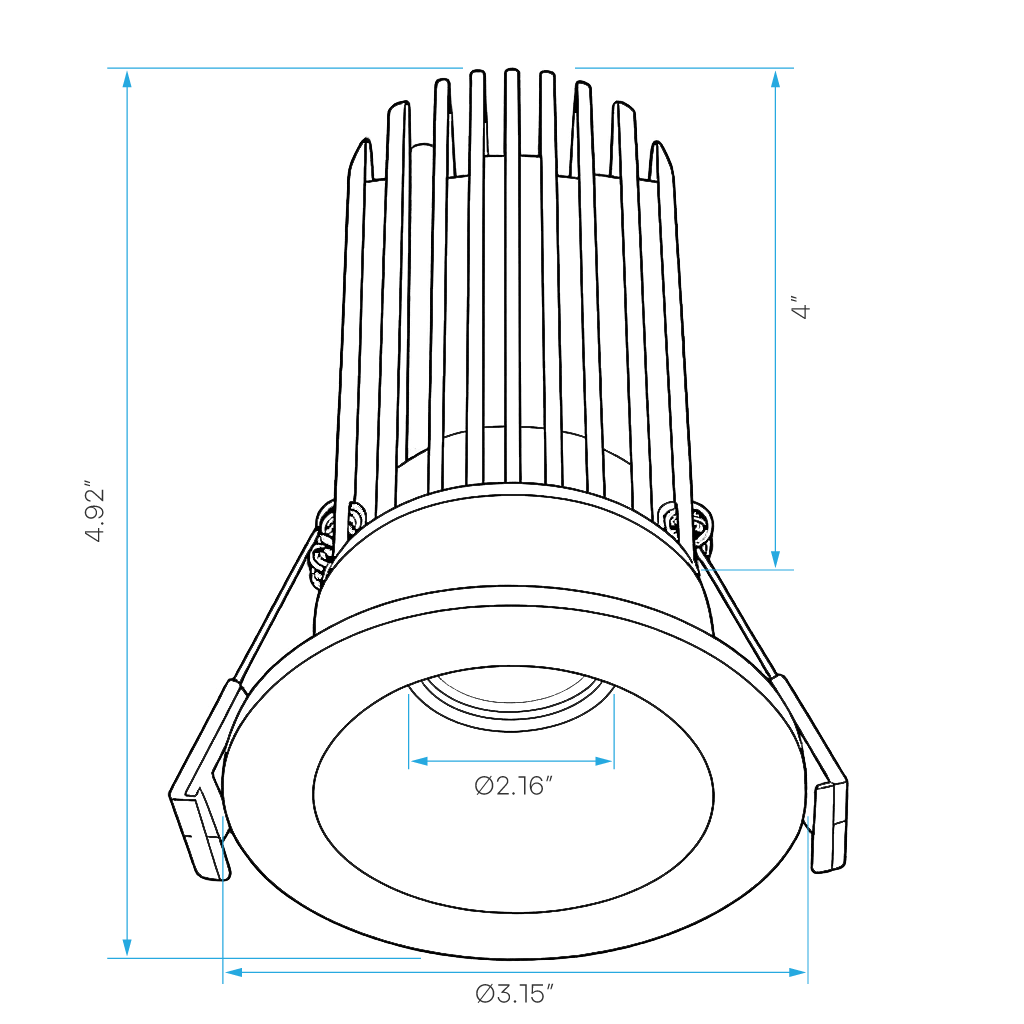

  • Dimensions
    • Width Ø 2.16" (3.14" w/Trim)
    • Depth 4" (4.92" w/trim)
  • Cutout 2.83"
  • Finish BLACK

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/5000K
  • Lumen 1200@14W/1700@20W
  • Beam Angle 60°
  • CRI 90

ELECTRICAL

  • Power (Wattage) 14/20
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $2.40
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor >0.9
  • Input Current 320mA/460mA
  • Frequency 60Hz
  • Lumen Efficacy 85
  • Operating Temp:
    • Min -4°
    • Max 104°

PACKAGING

  • UPC Barcode 732388941766
  • Master BarCode 10732388941763
  • Master Carton Dimensions:
    • Length 17.91"
    • Width 17.12"
    • Height 8.07"
  • Case Size 18

FEATURES

    90 LIFE HR 50000
