LR25223

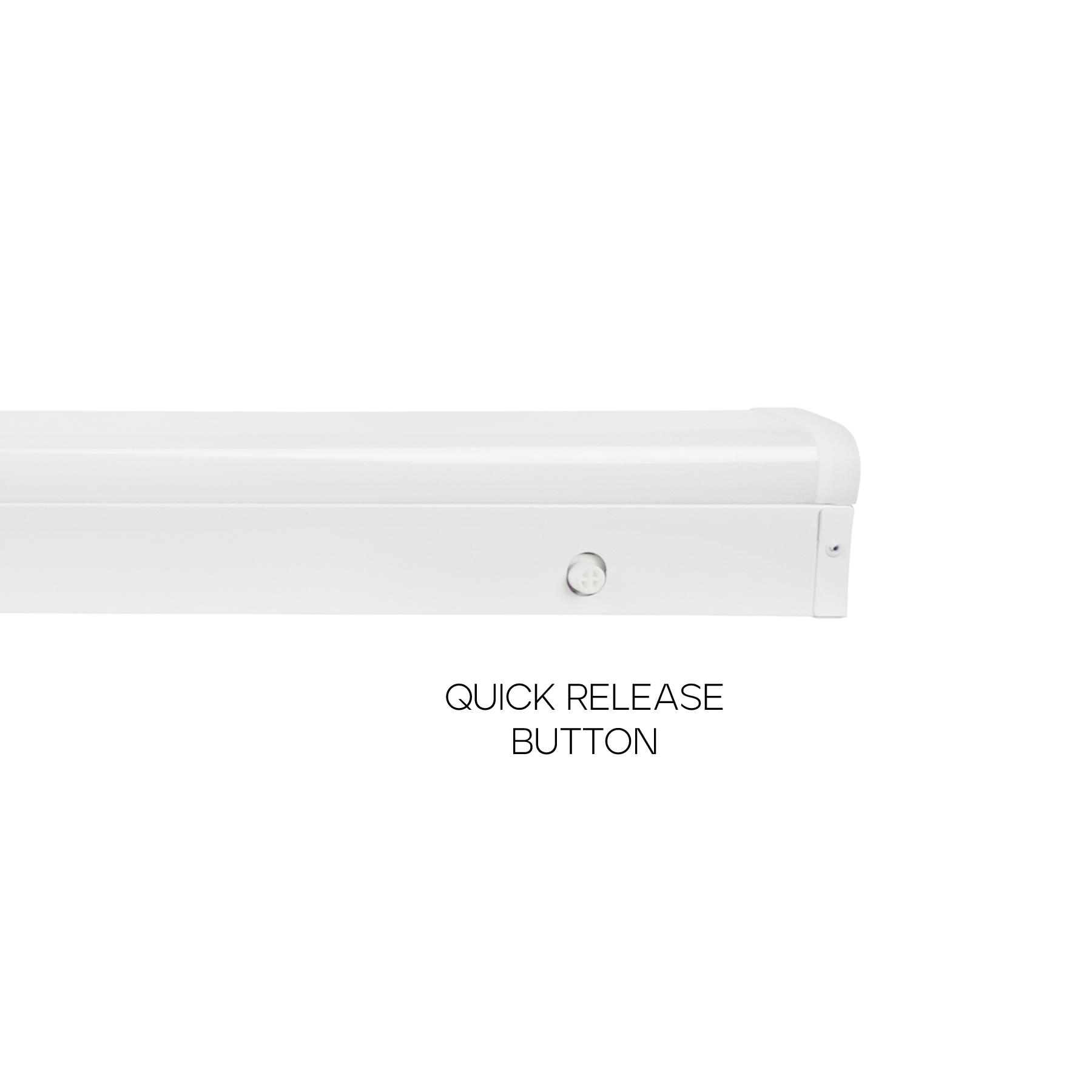

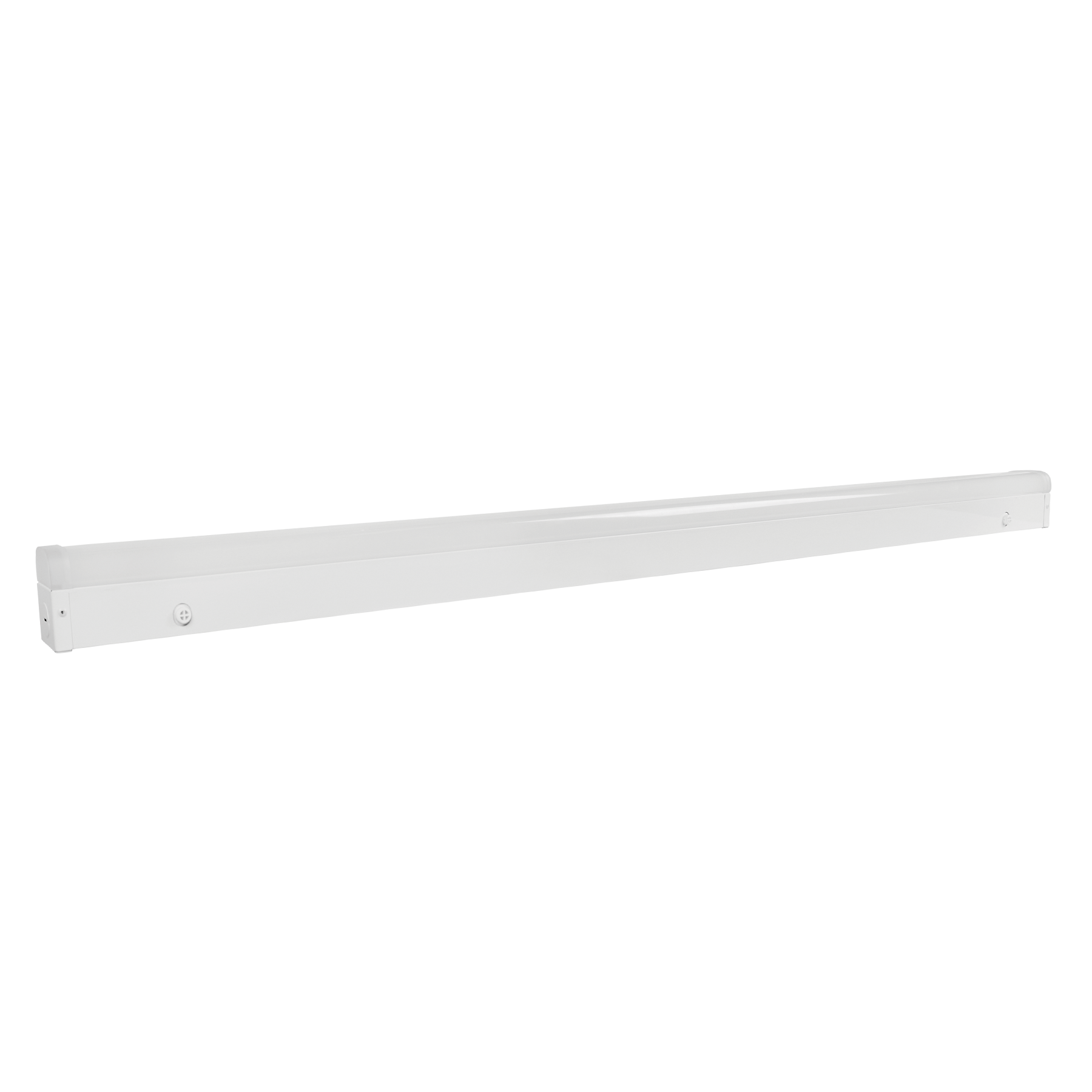

2' QUICK RELEASE SLIM LINEAR FIXTURE - 3CCT & WATTAGE SELECTABLE HIGH OUTPUT

LED24/LINEAR/3CCT/3WO/UNV/D/HO/V2

2&
2&
2&
2&
2&
2&

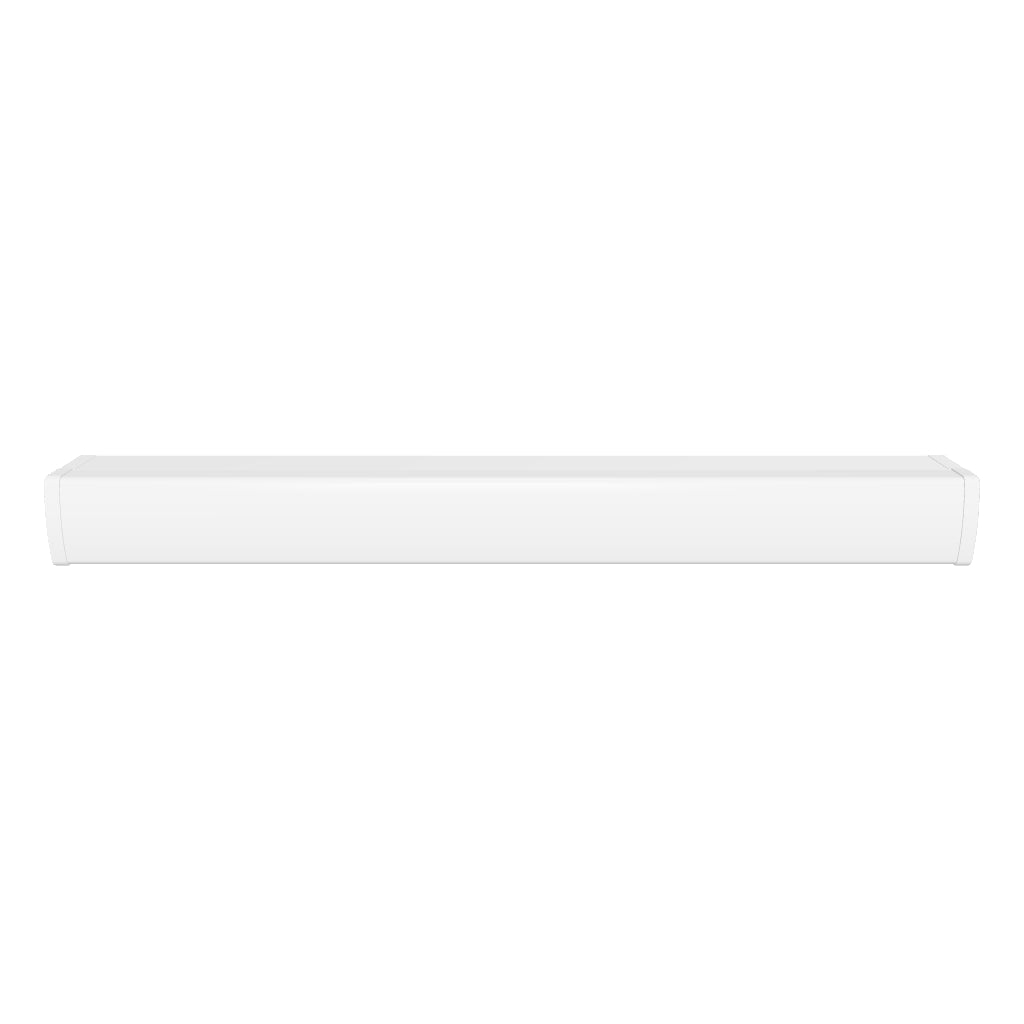

3D viewer 2&
2&
2&

LR25223

2' QUICK RELEASE SLIM LINEAR FIXTURE - 3CCT & WATTAGE SELECTABLE HIGH OUTPUT

$0.00
/

LED24/LINEAR/3CCT/3WO/UNV/D/HO/V2

  • CCT 3500K/4000K/5000K
  • Lumen 1950/2600/3250
  • WATT 15/20/25
  • Size24"

SPECIFICATIONS

  • Item numberLR25223
  • Item description

    LED24/LINEAR/3CCT/3WO/UNV/D/HO/V2

  • Size24"
  • Shape SLIM LINEAR FIXTURE

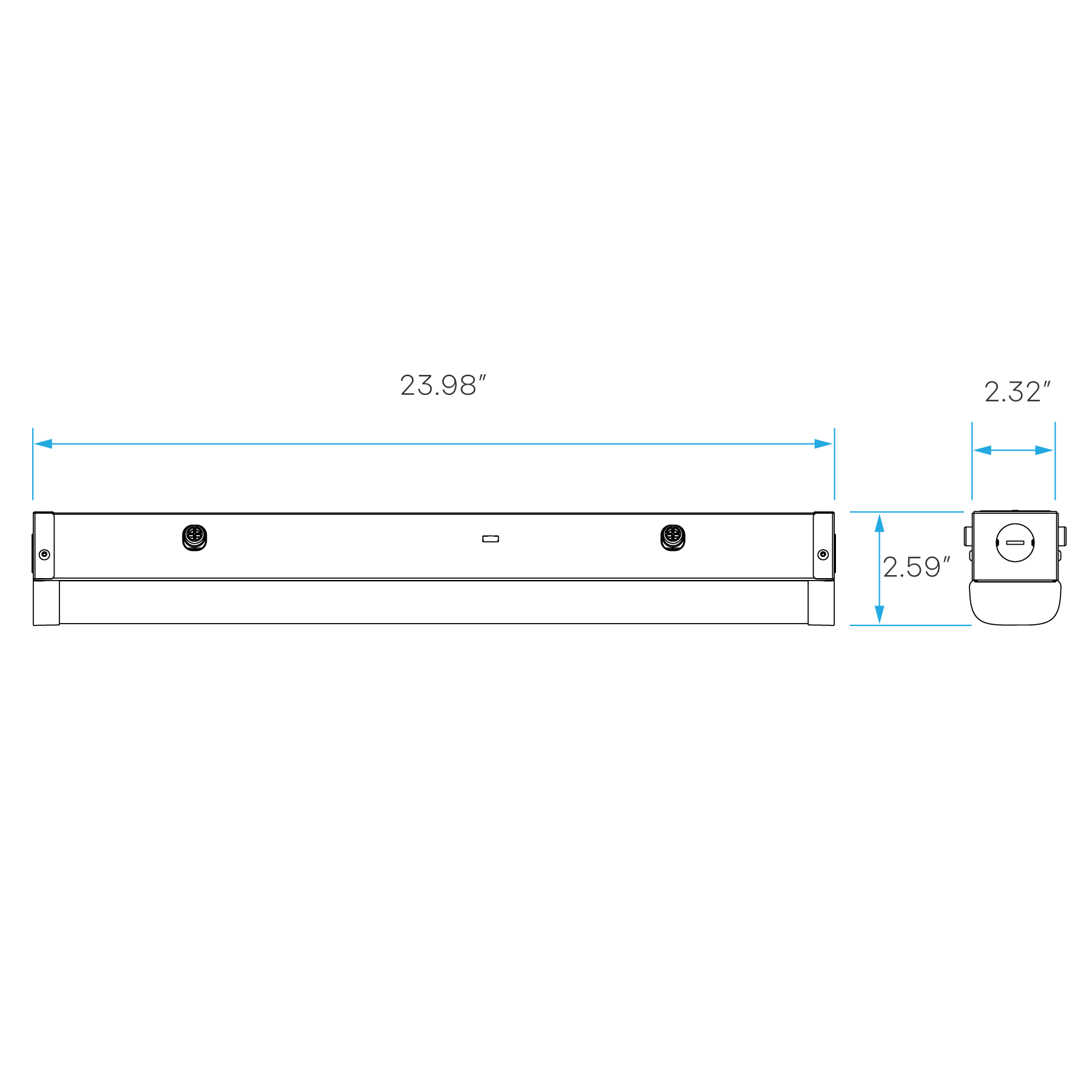

  • Dimensions
    • Length 23.98"
    • Width 2.32"
    • Depth 2.59"
  • Finish WHITE
  • MOL 23.98"

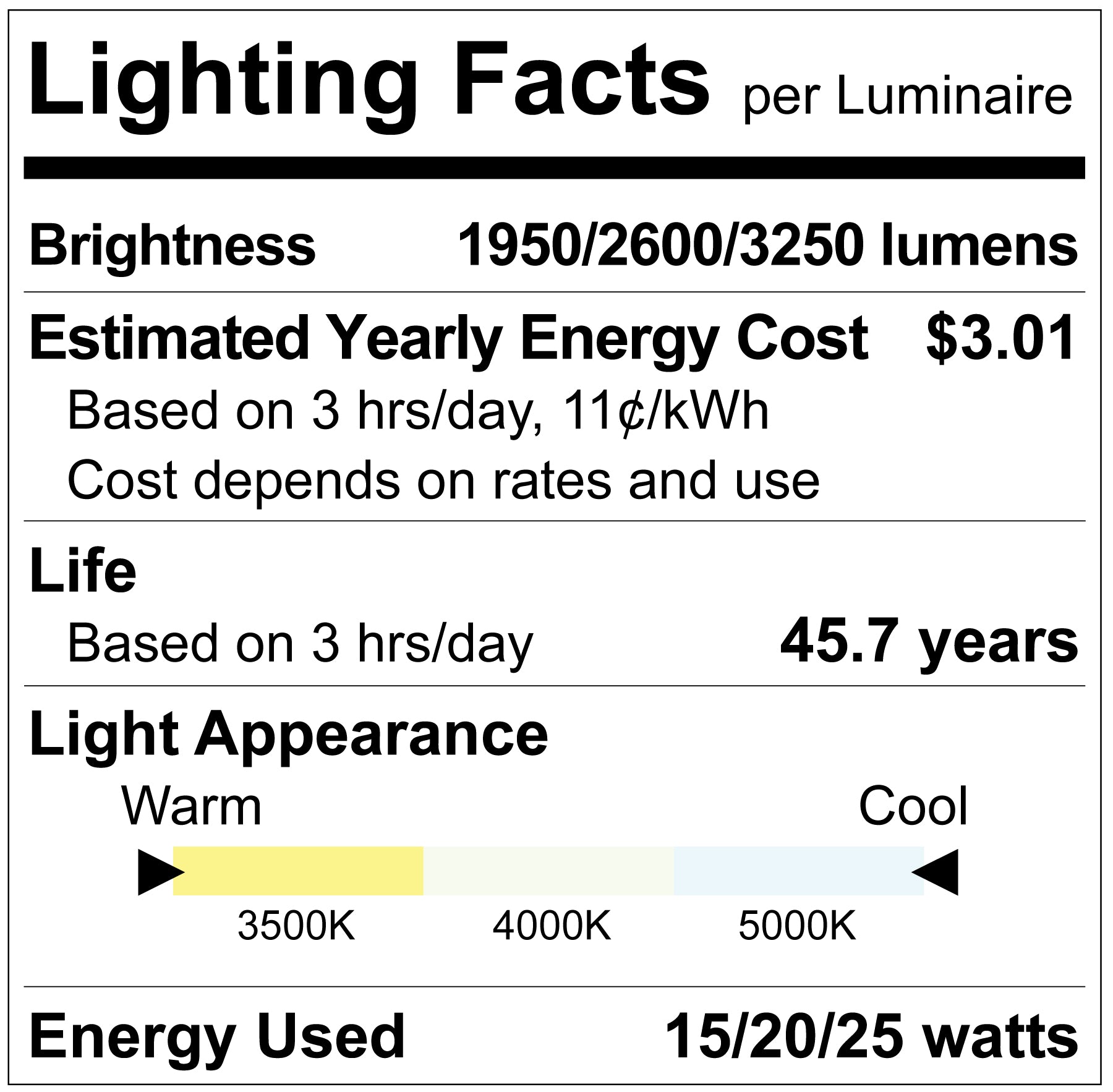

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3500K/4000K/5000K
  • Lumen 1950/2600/3250
  • Beam Angle 120º
  • CRI 90

ELECTRICAL

  • Power (Wattage) 15/20/25
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $3.01
  • Dimmable 0-10V
  • Power Factor 0.9
  • Input Current 0.229A
  • Frequency 60Hz
  • Lumen Efficacy 130
  • Operating Temp:
    • Min -4º
    • Max 113º

PACKAGING

  • UPC Barcode 732388927463
  • Master BarCode 10732388927460
  • Master Carton Dimensions:
    • Length 25.78"
    • Width 13.77"
    • Height 12.99"
  • Case Size 12

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS
