LR25223+MS

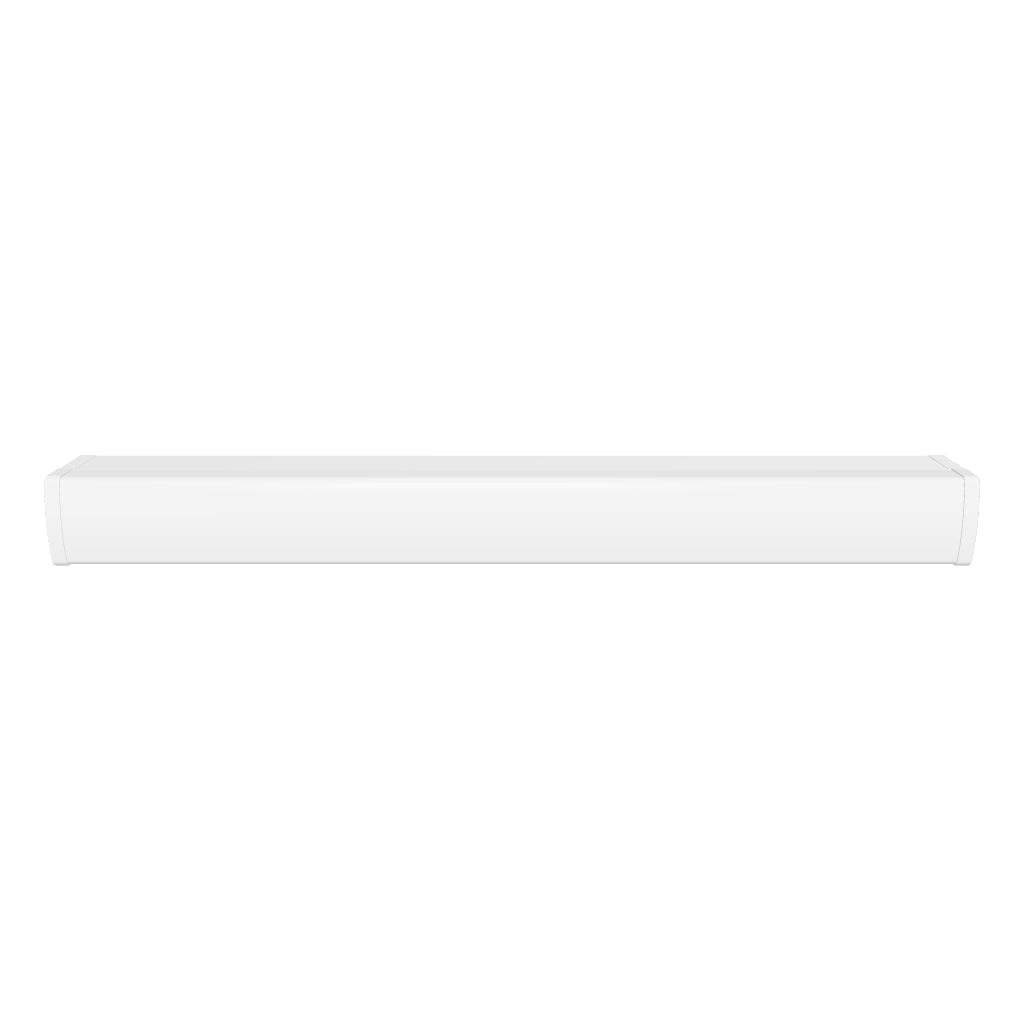

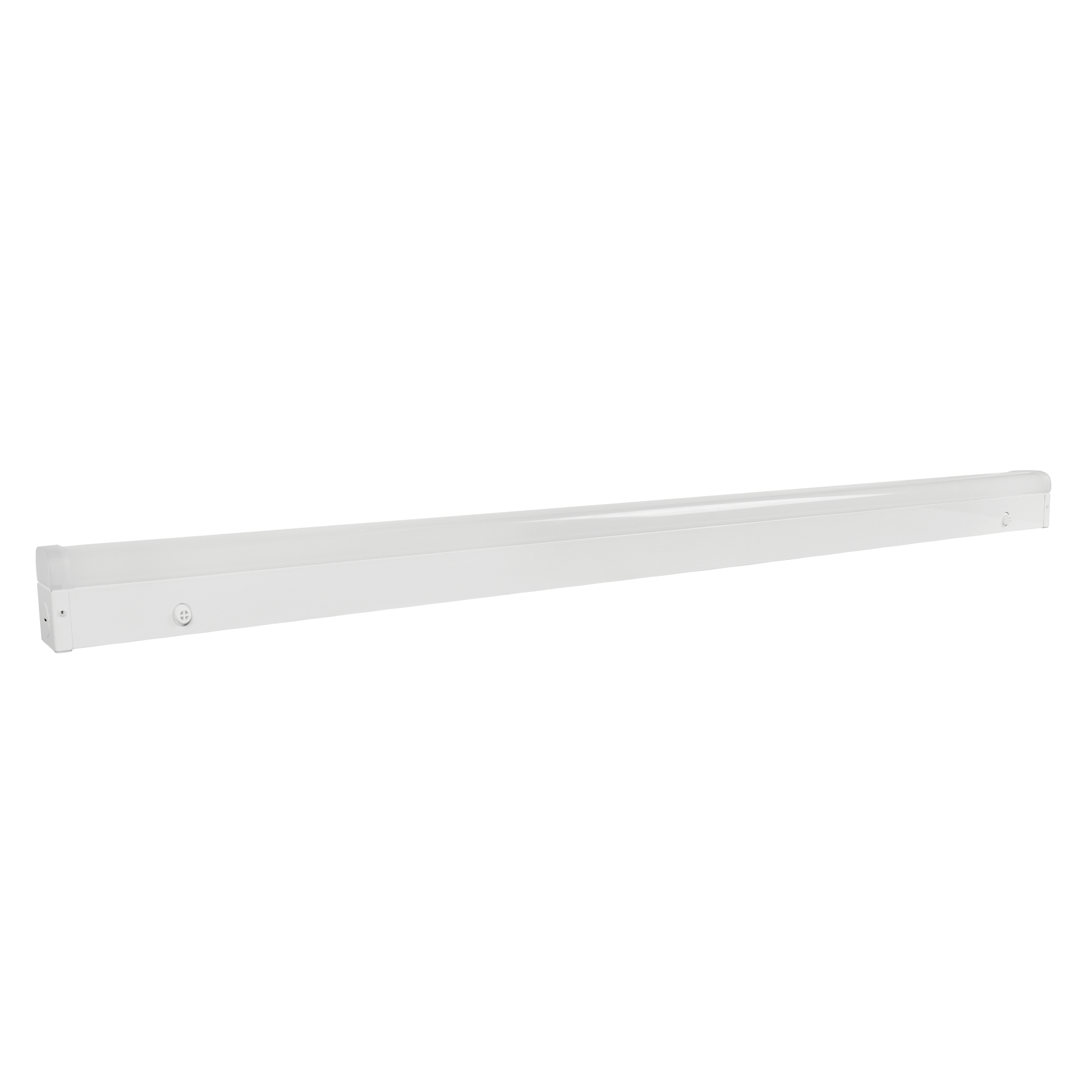

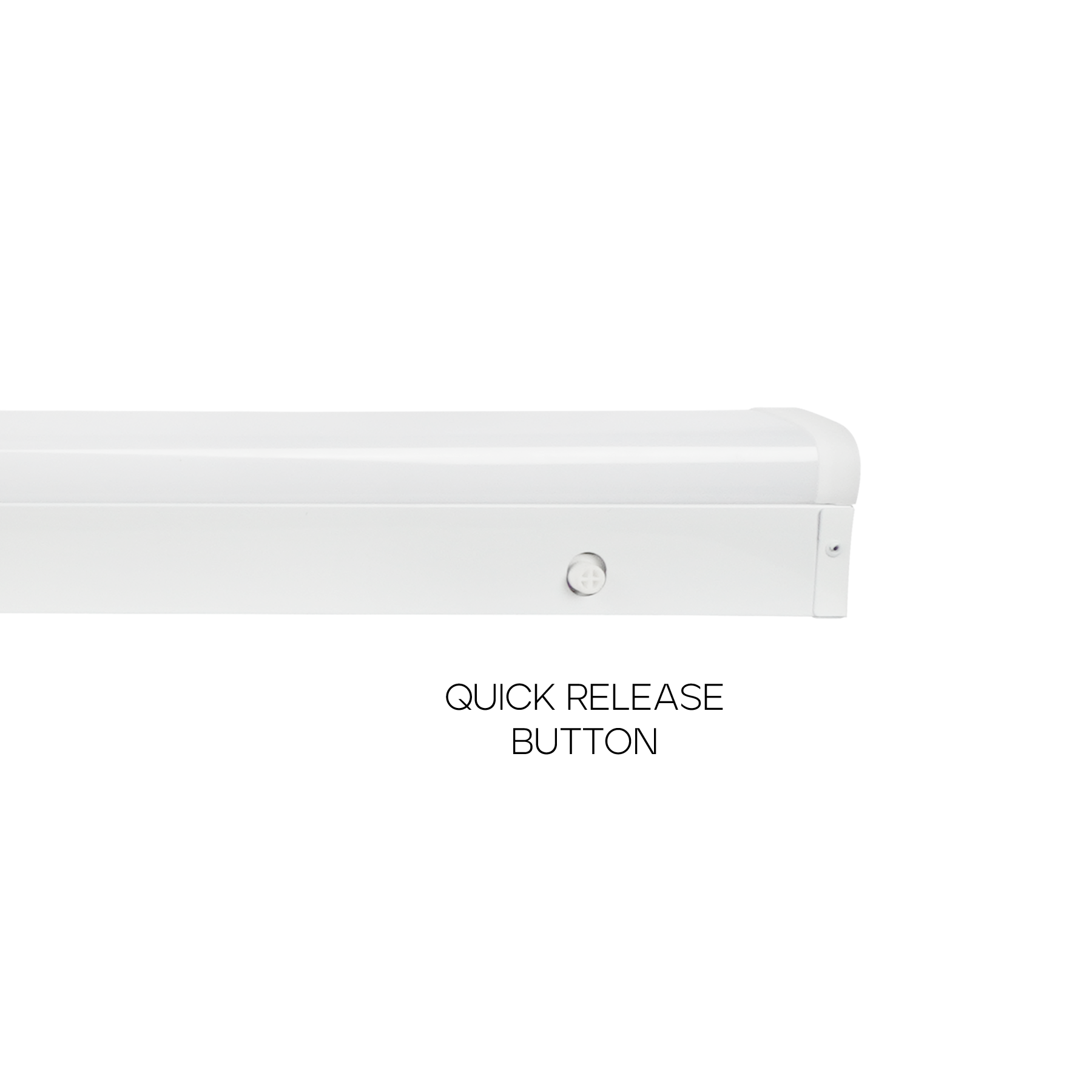

2' QUICK RELEASE SLIM LINEAR FIXTURE - 3CCT & WATTAGE SELECTABLE HIGH OUTPUT + MS

LED24/LINEAR/3CCT/3WO/UNV/D/HO/V2+MS

2&
2&
2&
2&
2&
2&
3D viewer 2&
2&
2&

LR25223+MS

2' QUICK RELEASE SLIM LINEAR FIXTURE - 3CCT & WATTAGE SELECTABLE HIGH OUTPUT + MS

$0.00
/

LED24/LINEAR/3CCT/3WO/UNV/D/HO/V2+MS

  • CCT 3500K/4000K/5000K
  • Lumen 1950/2600/3250
  • WATT 15/20/25
  • Size24"

SPECIFICATIONS

  • Item numberLR25223+MS
  • Item description

    LED24/LINEAR/3CCT/3WO/UNV/D/HO/V2+MS

  • Size24"
  • Shape SLIM LINEAR FIXTURE
  • Dimensions
    • Length 23.98"
    • Width 2.32"
    • Depth 2.59"
  • Finish WHITE
  • MOL 23.98"

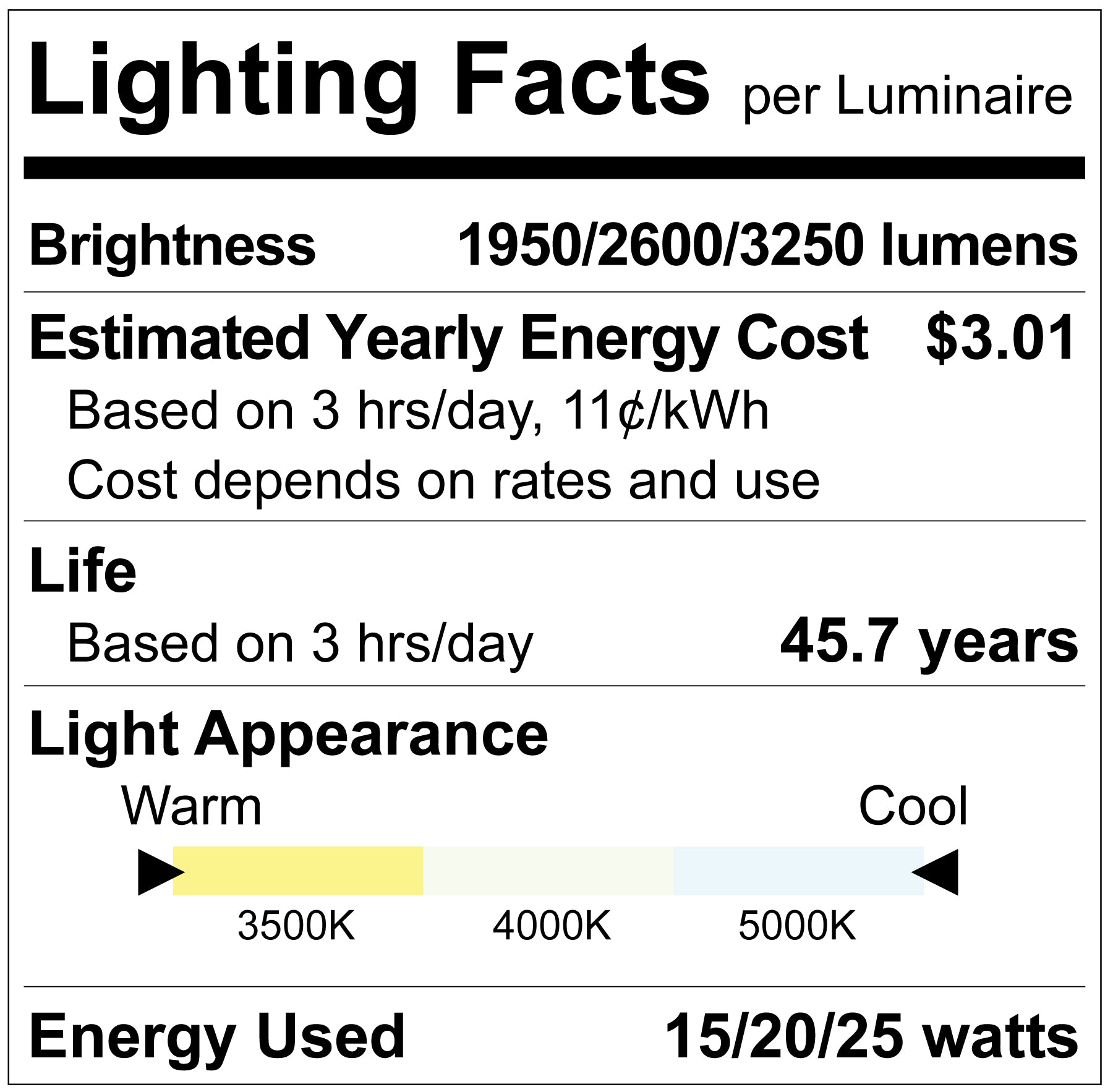

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3500K/4000K/5000K
  • Lumen 1950/2600/3250
  • Beam Angle 120Āŗ
  • CRI 90

ELECTRICAL

  • Power (Wattage) 15/20/25
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $3.01
  • Dimmable 0-10V
  • Power Factor 0.9
  • Input Current 0.229A
  • Frequency 60Hz
  • Lumen Efficacy 130
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 732388927562
  • Master BarCode 10732388927569
  • Master Carton Dimensions:
    • Length 25.78"
    • Width 13.77"
    • Height 12.99"
  • Case Size 12

FEATURES

    80 LIFE HR 50000
