SPECIFICATIONS
- Item numberLR25227+MS
- Item description
LED96/LINEAR/3CCT/3WO/UNV/D/HO/V2+MS
- Size96"

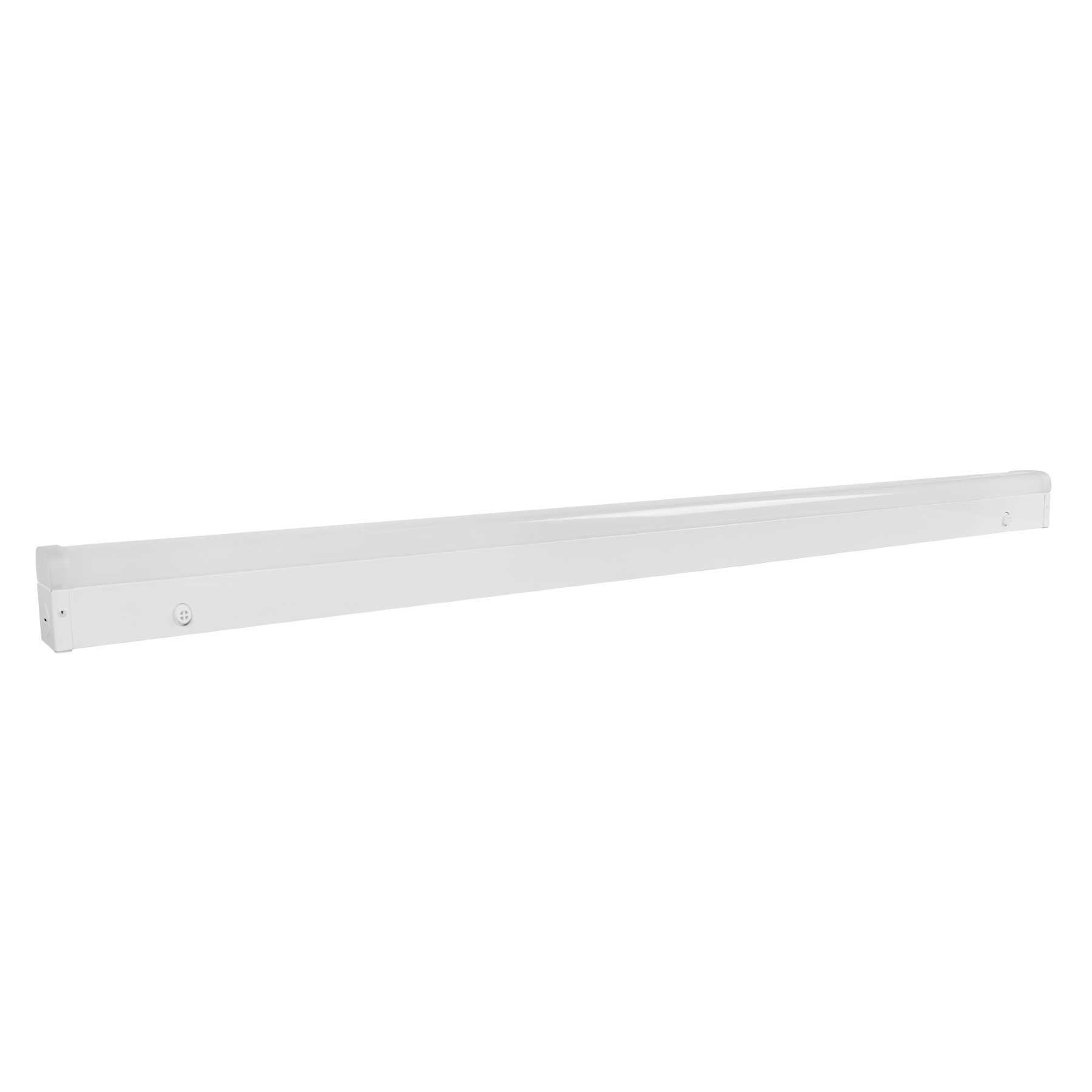

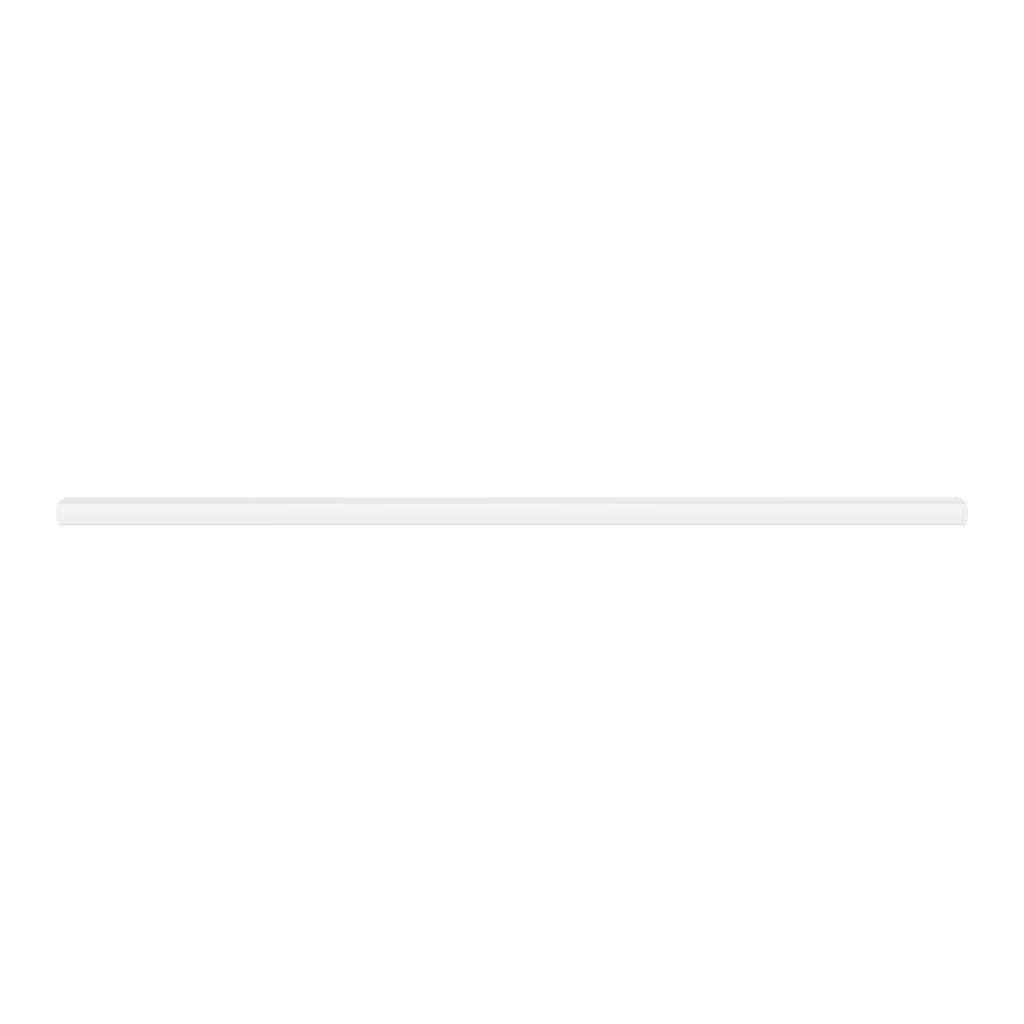

- Shape SLIM LINEAR FIXTURE

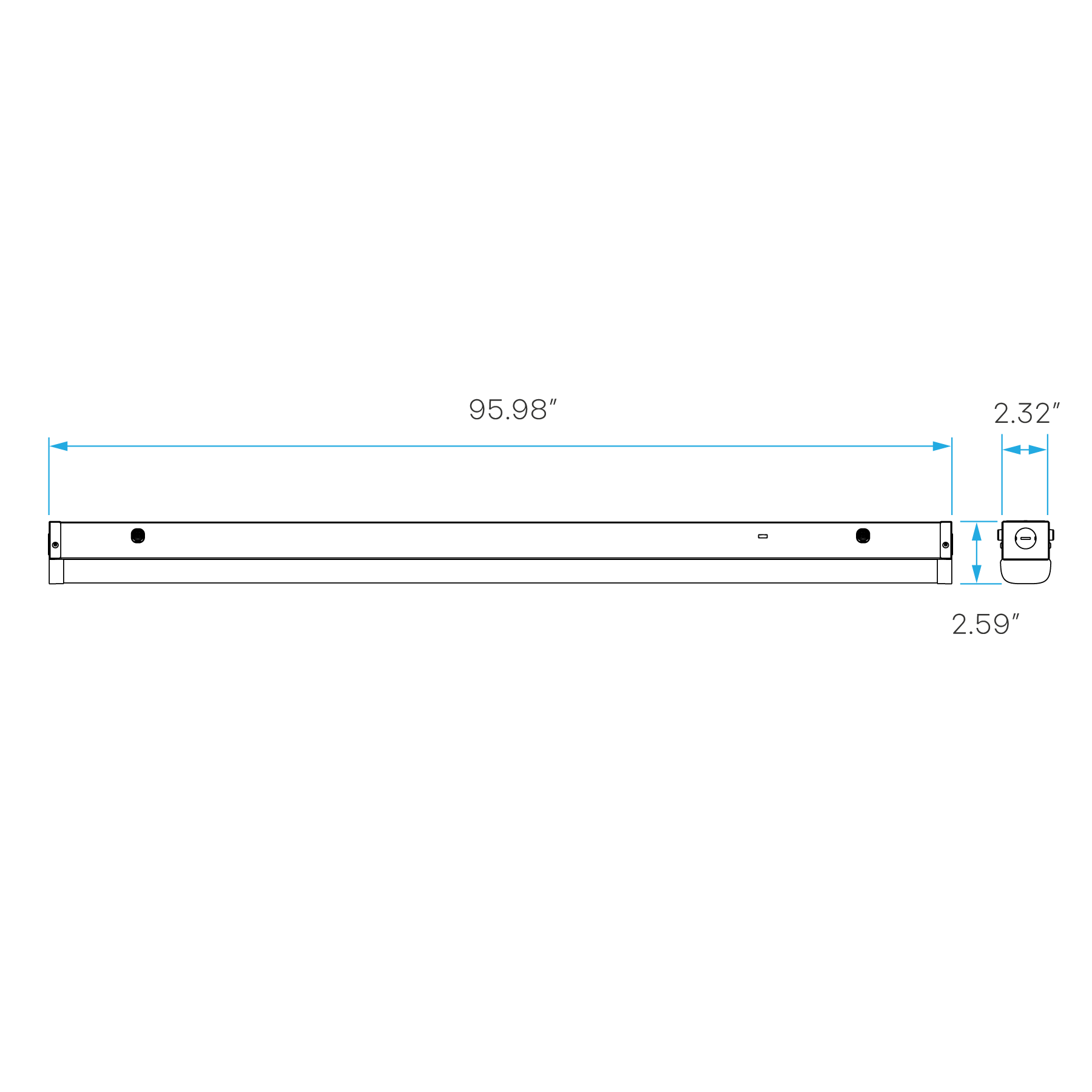

- Dimensions
- Length 95.98"
- Width 2.32"
- Depth 2.59"
- Finish WHITE
- MOL 95.98"

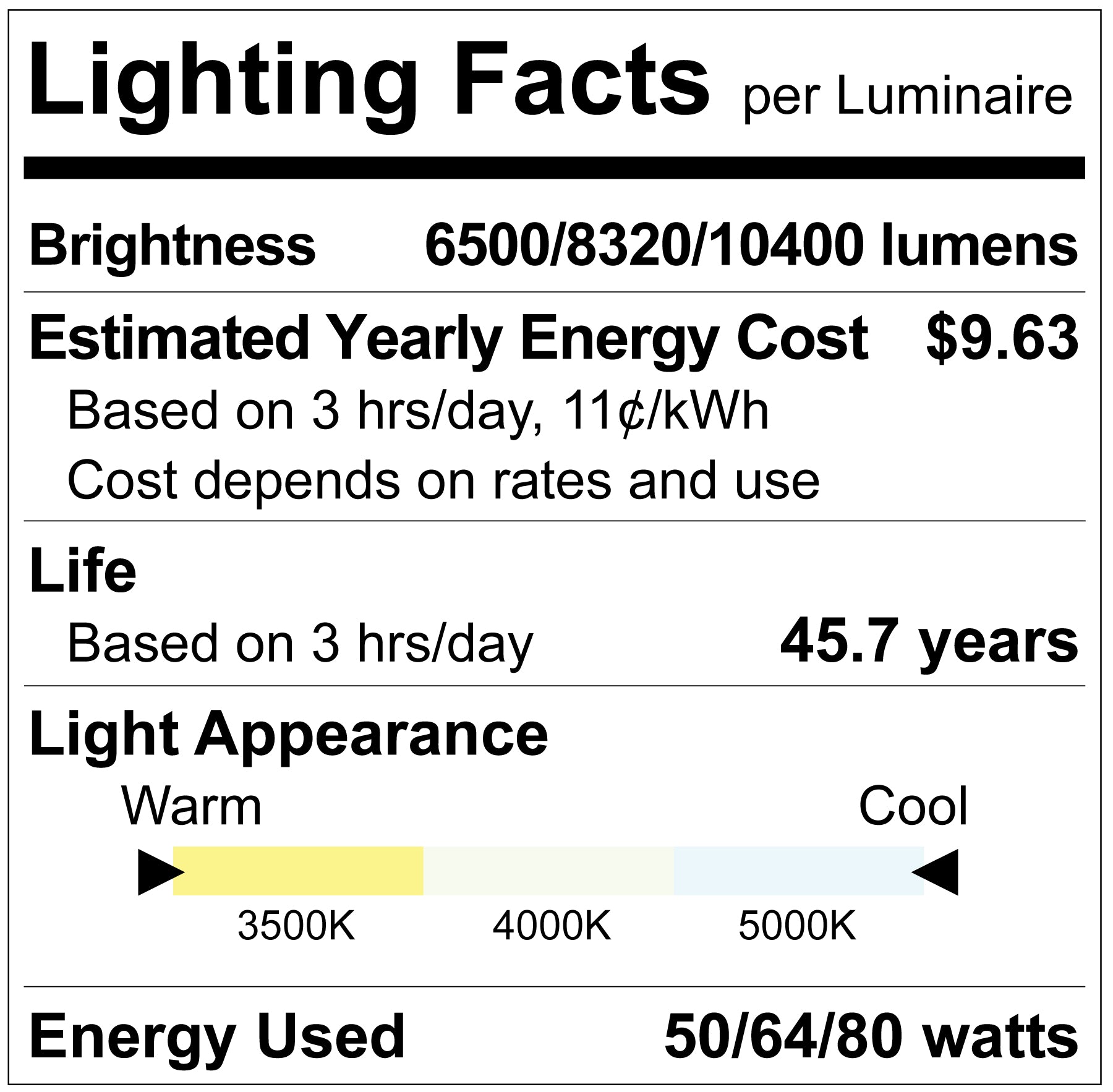

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3500K/4000K/5000K
- Lumen 6500/8320/10400
- Beam Angle 120º
- CRI 80
ELECTRICAL
- Power (Wattage) 50/64/80
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $9.63
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 0.485A
- Frequency 60Hz
- Lumen Efficacy 130
- Operating Temp:
- Min -4º
- Max 113º
PACKAGING
- UPC Barcode 732388927760
- Master BarCode 10732388927767
- Master Carton Dimensions:
- Length 97.75"
- Width 10.43"
- Height 8.85"
- Case Size 6
